Billings 1/144 RMS Titanic. Options
atucker1985
#1 Posted : 16 November 2014 18:47:10

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348
Good evening everyone,

I've been watching the various Billings Titanic builds with great interest and as I've started construction of my own ship I thought I'd share my progress. I hope you find it interesting / useful!
File Attachment(s):
stevie_o
#2 Posted : 16 November 2014 18:55:03

Rank: Super-Elite

Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 30/01/2013
Posts: 4,604
Points: 13,607
Location: Monmouthshire UK
Hi Andrew,
Nice to see you have started your own diary, look forward to following this buildBigGrin
If you want your pics to show in the posts instead of as links then you need to resize each pic before you upload them - the size to have is 640x480

Cheers
Steve
Gandale
#3 Posted : 16 November 2014 21:59:39

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Global Forum Support, Moderator, Official Builds, Administrators

Joined: 08/09/2012
Posts: 15,172
Points: 46,151
Location: Aberdeen
Looking really good Andrew, will be following this build with a great deal of interest especially as I'm building the Mantua version....Cool Cool .. Have had to mine to one side for a while due to other works going on but hope to resume the build soon.....Cool Cool .. Will be interesting to see how yours develops over time.....Cool Cool

Regards

Alan
Wieltje
#4 Posted : 17 November 2014 21:10:11

Rank: Amateur level 2
Build-Diary Medal: Build-Diary Medal of Honour
Groups:

Joined: 14/04/2014
Posts: 47
Points: 144
Hi Andrew,
Looks perfect so far. I can only see ONE of your pictures. As said, try to save your pictures in 640 by 480 pixels. That will
show the pictures on this page itself without the need for downloads.
I see you are in the region where you will need the narrow hull planks. They help a lot to make the rather sharp turn towards the bottom. You may need to sand the edges (chamfer) a bit (otherwise you need a lot of filler) but you probably have enough building experience to
know this yourself ;-)
atucker1985
#5 Posted : 20 November 2014 21:55:15

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348
Evening all,

I've tried resizing the pictures, fingers crossed!

Andrew
atucker1985 attached the following image(s):
atucker1985
#6 Posted : 20 November 2014 21:57:52

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348
Now I know it works heres a few more!
atucker1985 attached the following image(s):
atucker1985
#7 Posted : 20 November 2014 22:23:17

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348

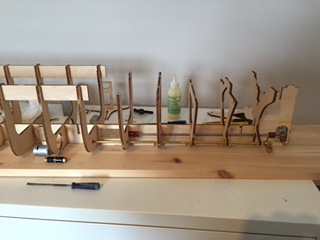

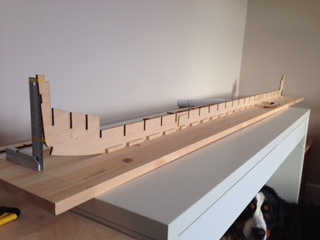

I started by making a jig using a piece of cabinet makers wood (the only wood I could find that was perfectly flat) and twice spirit levels to ensure the hull would be as straight as possible.

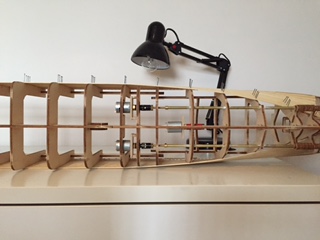

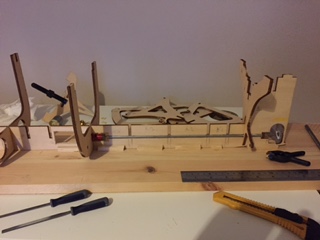

I followed the instructions up until frame 27 (the frame the motors are mounted too) and from there I modified the stern piece of keel in order to fit the centre motor and prop shaft. I have left frame 27 unglued so I can remove it at will to replace the outboard motors if needs be, I can also remove the centre motor if needed. I decided to use two 370 motors and a 280 motor. The centre shaft was greased an sealed so it wouldn't need to be greased again.

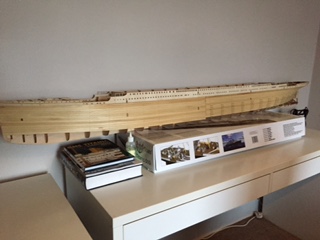

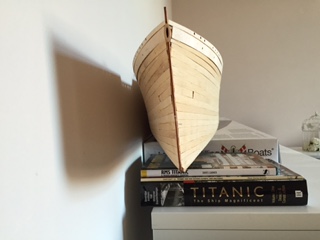

From the pictures as you can see I am at the stage where I need to finish planking the propeller wings then the hull is ready to be sanded. I'll use filler to seal any gaps then sand again to ensure the correct shape.

My intention then is to plan out and cut each individual hull plate from 0.38 styrene and attach to the hull in the correct pattern. It'll be a time consuming process but hopefully it'll pay off. After this ill be attaching the 1/144 photo etch hull plating / rivets I have on order, this will include all rivets, coaling doors, hatches etc.

The next stage then will be to drill out each porthole. Once I have primed and painted the hull i'll seal each port hole with 0.38 clear styrene to ensure the hull is water tight. I have intentionally not attached the well decks as per the instructions (although I have checked that they fit) so I have access to seal the port holes.

I'll continue to build the sip as per instructions apart from adding 1/144 photo etch by toms model works where needed. I'm planing to install a steam generator and run pipes to funnels 1, 2 and 3.

Its taken me a few weeks so far to get to this stage and i'm really enjoying it! I plan to launch her at roughly the same stage in construction that Titanic was at when she was launched, obviously i'll make suer she's water tight prior to this! Because there is so much room inside the hull towards the end of construction I may seal off a few compartments just to be on the safe side.

I appreciate any comments or ideas?

Regards,

Andrew
