Hello Dave.
Many thanks for the comments and interest.
The colour is the Ecurie Ecosse team Jaguar Flag blue which matches Ford fusion blue almost exactly.
In all, around 6 coats of primer, all wet sanded, followed by another 5-6 gloss coats, the last being a 'wet' coat.
It hasn't been polished or anything.
Roy.
|
|
|
 Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Nice work Roy, some great scratchbuilding work and I like your attention to detail - well done!!
Kev
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,755 Points: 14,411 Location: ipswich
|

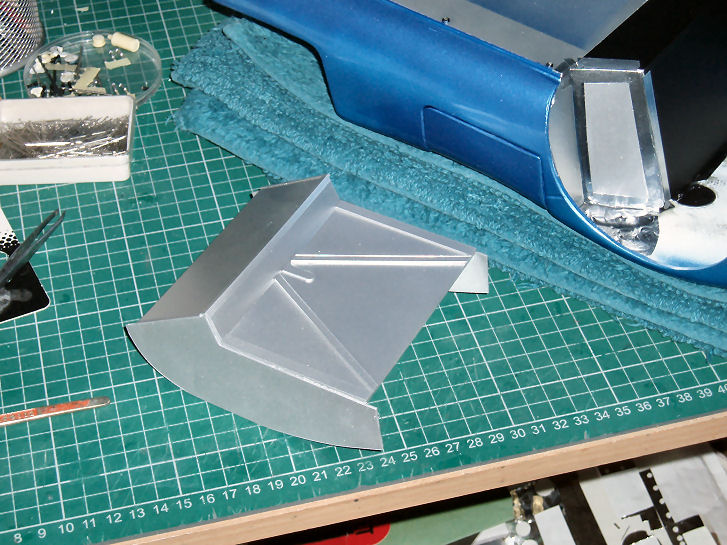

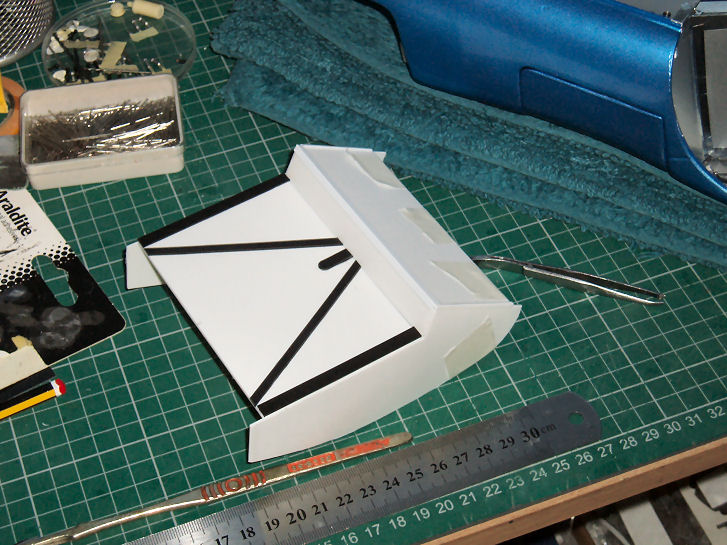

A bit of 'two steps forwards and one back' today. I started making up the basics of the rear boot floor and fuel tank yesterday. All simple, flat plastic sheet stuff. Loads of card templates first though. Trial fit - ? Fine. Then I started to look at it more and more... A check - somehow I had some measurements WAY out. It bugged me even though it will virtually be unseen at the end so - I ripped it apart and started again. A day wasted. The replacement fits a treat and is now at least the right shape. Ho hum. On we go. Roy. roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,755 Points: 14,411 Location: ipswich
|

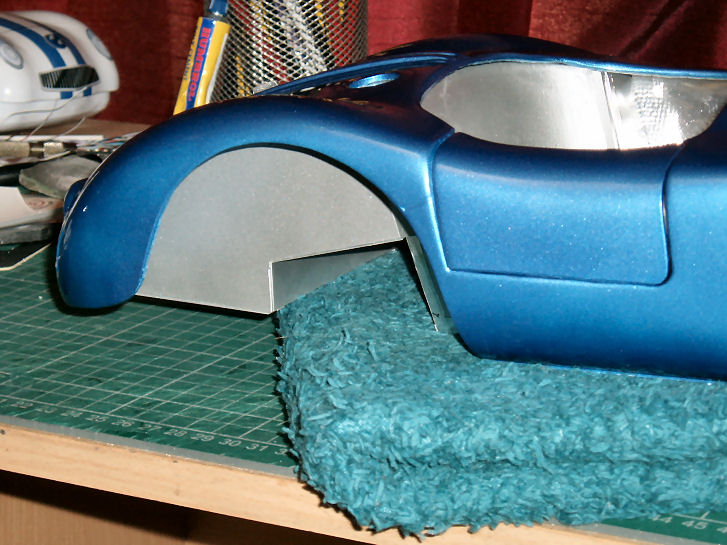

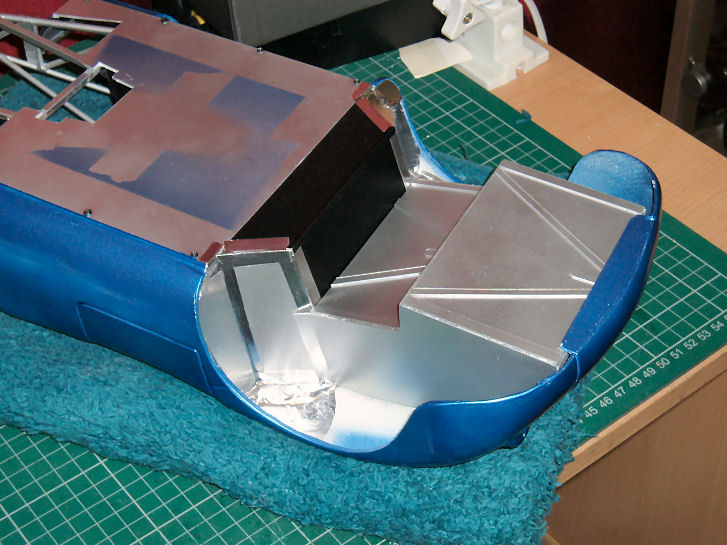

Work is pretty sporadic at present as the weather has just been too nice... However - rear under body now fitted but detailing is still needed. Also - couldn't resist adding a few decals at the back. It makes it look like more of a car. Roy. roymattblack attached the following image(s):
|
|
|
 Rank: Newbie Groups: Registered
Joined: 18/09/2016 Posts: 1 Points: 3 Location: South Pacific
|
roymattblack wrote:I've been quietly working away at this one for over 6 months as a 'fill-in' build while I was building the... Nice fill-in project. Where did you get the plan drawings? I am looking for something like these for my 1:1 project.
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,755 Points: 14,411 Location: ipswich
|

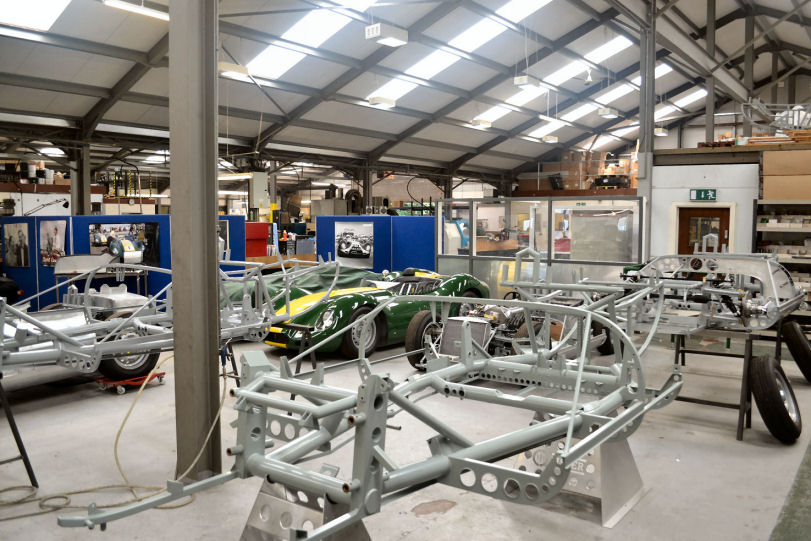

Second try - previous post wouldn't show the pics at all... I have original Jaguar workshop drawings I was given by an ex-employee on strict terms I don't copy them or give them away. Mind you, almost identical drawings are easy to find on a Google search. I'm currently also working on a Lister 'Knobbly' Jaguar using drawings and plans from Lister. They even gave me free rein in their factory last Monday, with a camera, note book and tape measure. I took around 100 pics - loads of detail close-ups. Roy. roymattblack attached the following image(s):
|
|
|
|
