Pack 2 contains parts for Stages 5 - 8
Stage 5
Contents: Front fender, Right front brake disc.
There is no construction at this stage.
Stage complete, carefully store any remaining parts in a stage labelled bag.
Spal attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 19/06/2013 Posts: 4,588 Points: 13,553 Location: West Yorkshire
|
Stage 6
Contents: Left front fork, Left front brake caliper, Bracket.
There is no construction at this stage.
Before proceeding, you should perform a test on the fork. Hold the wider part in your hand and press the smaller part into it. You should feel resistance as you do this. When released, the smaller part should return to its original position.
Stage complete, carefully store any remaining parts in a stage labelled bag.Spal attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 19/06/2013 Posts: 4,588 Points: 13,553 Location: West Yorkshire
|
Stage 7

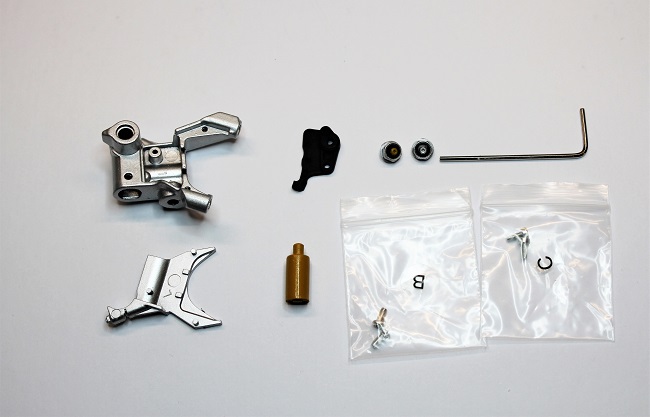

Contents: Left front wheel bracket, Bracket cover, Rear bracket cover, Valves, Gas cartridge, Type B screws, Type C Allen screws, Allen key.

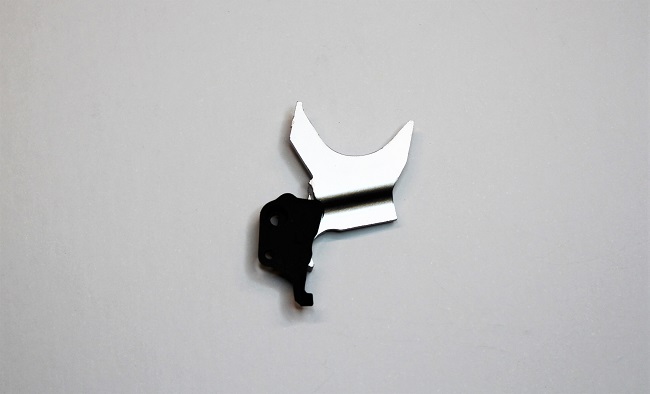

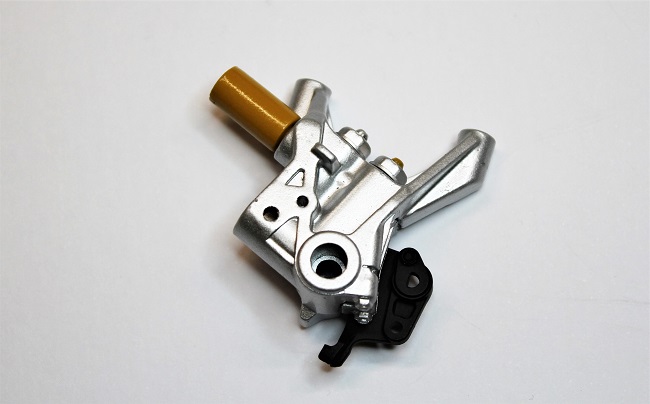

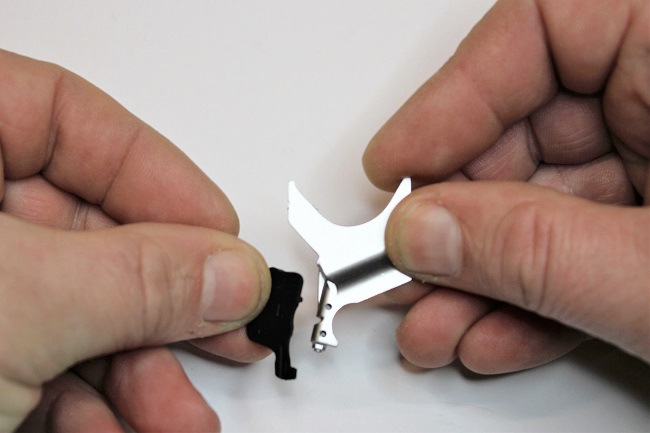

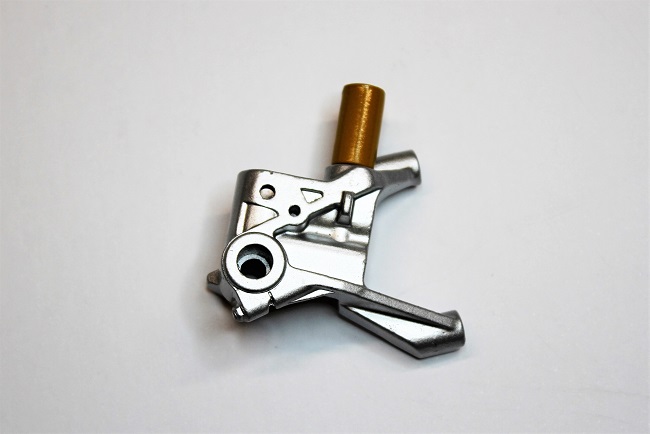

Taking the bracket cover and the rear bracket cover, identify the two small pins on the cover indicated by the arrows.Insert the pins on the back cover into the holes in the bracket cover, and press the parts together.Preparing the gas cartridge and the left front wheel bracket,insert the cartridge pin into the hole in the bracket.Position the valves into the two notches in the bracket as shown, you can fix the valves in place with superglue.Placing the two
assemblies in front of you, insert the posts of the cover into the matching holes in the bracket, and press the two parts together.
Stage complete, carefully store any remaining parts in a stage labelled bag.Spal attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 19/06/2013 Posts: 4,588 Points: 13,553 Location: West Yorkshire
|
Stage 8

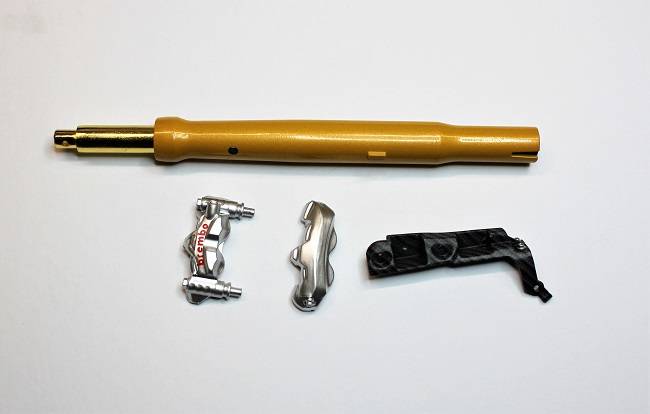

Contents: Right front fork, Right front caliper, Bracket.

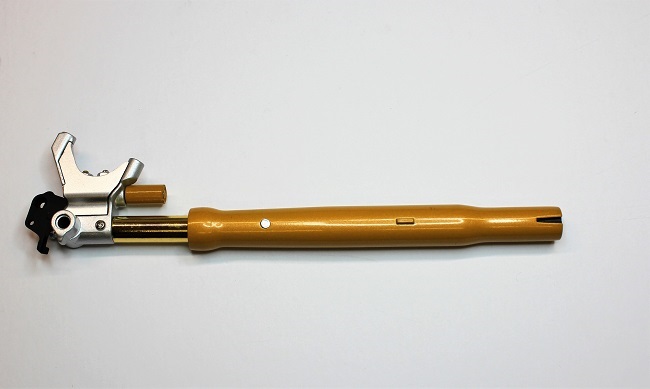

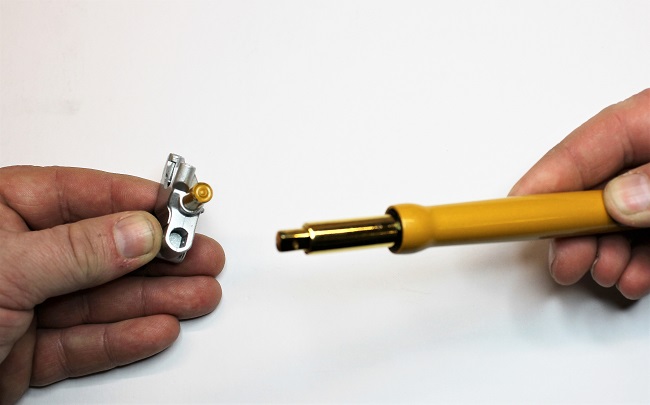

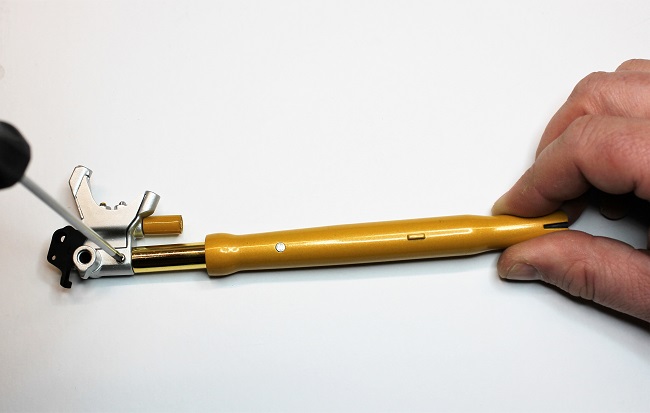

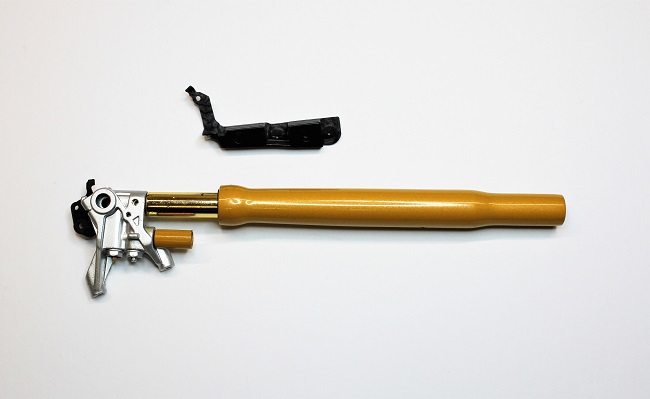

Using the front fork supplied with Stage 6 and the bracket completed in Stage 7,insert the lower end of the fork into the hole in the bracket and secure the bracket to the fork with a screw. Position bracket C
over the assembly, aligning the holes of both parts, and securing them with a type C Allen screw.
Stage complete, carefully store any remaining parts in a stage labelled bag.You can view the official video build for this pack herehttps://www.youtube.com/...JUIkfyoZco-rCEsGom94e6WXSpal attached the following image(s):
|
|
|
|
