Hi guys I have started shaping the lower 10mm main mast dowel - I have the 5mm square and the section below that shaped but I am confused what to do next.  !! I am having trouble working the next area of filing. I can see that the front of the main mast is filed over the length of the 127mm area but not sure what to do with the left and right sides. Help please You do not need a parachute to skydive. You only need a parachute to skydive twice.
Built:
Golden Star, English Brig. RMS Titanic. (Academy 1/400 Centenary Anniversary Edition) Revell-Monogram 1/48 B-29 Superfortress 1:8 Baron von Richthofen's Fokker Tri-plane. HMS Victory. Nelsons Flag Ship. Sultan Arab Dhow. Artesania Latina Carmen II. The Battleship Yamato. Model Airways Wright Flyer 1:16 Scale. Trumpeter Bismarck 1/200. HMS Sovereign of the Seas. The Black Pearl.
Building:HMS Surprisel. Hatchette U96. Soleil Royal.
|
|
|
 Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Hi riff-raff!  NO mate! below the 8mm squared area the front flat part you file 188mm long 5mm wide along it's length, the two sides you file 127mm long starting 8mm wide at the top and taper down to 3mm wide at the bottom.
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 19/03/2010 Posts: 602 Points: 1,679 Location: Lincs
|
Thanks - I think I understand You do not need a parachute to skydive. You only need a parachute to skydive twice.
Built:
Golden Star, English Brig. RMS Titanic. (Academy 1/400 Centenary Anniversary Edition) Revell-Monogram 1/48 B-29 Superfortress 1:8 Baron von Richthofen's Fokker Tri-plane. HMS Victory. Nelsons Flag Ship. Sultan Arab Dhow. Artesania Latina Carmen II. The Battleship Yamato. Model Airways Wright Flyer 1:16 Scale. Trumpeter Bismarck 1/200. HMS Sovereign of the Seas. The Black Pearl.
Building:HMS Surprisel. Hatchette U96. Soleil Royal.
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Message was deleted by User.
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Well riff-raff perhaps this will make thing's clear. Son of Bulwark attached the following image(s):
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 06/06/2010 Posts: 566 Points: 1,657 Location: UK
|
Hi Darren,
(Don't meen to hi-jack the thread)
But that's an excellent explanation. I was struggling to picture the tapered flat so just what I needed.
Thanks!
Wilfy
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 20/04/2010 Posts: 545 Points: 1,536 Location: lossiemouth
|
darren drawings is correct the only way to get aflat 8mmto3mm over 127mm is to taper a flat it check the drawing at the cross section at the start of the taper bottom of the square
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|

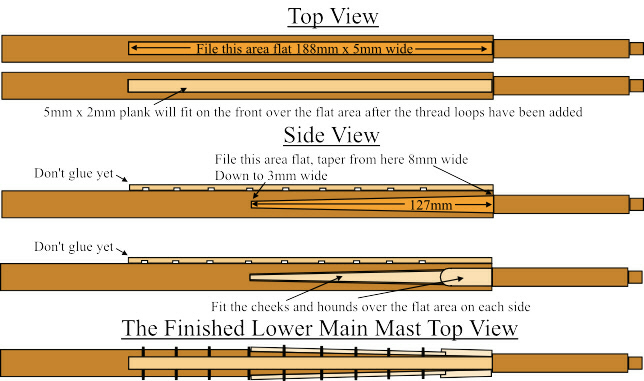

Hi MWG! I did see you post before it was removed!  The squared area at the top of the mast is 8mm x 8mm x 68mm with the corners rounded and a 5mm x 5mm x 5mm square on top. If you have done this right the flat area of the squared part would have about 6mm wide flat area with 1mm on each side still rounded (untouched part of the dowel) that will make the 8mm square section. The front 188mm flat area is 5mm wide to take the 5mm x 2mm rubbing paunch. The mast has a flat taper below the square section on each side going from 8mm at the top going to 3mm at the bottom 127mm below the squared area. It is on this section the cheeks and hounds fit. Here is another graphic to show how the mast will look before fitting the cheeks, hounds and rubbing paunch. Son of Bulwark attached the following image(s):
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
I think what MWG meant, is that for clarity the lower mast is not tapered around its full circumference, obviously your graphic is 2D not 3D.
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Hi Tomick! If that is what you want to believe then OK! I read his post and that was not what he meant, the information I was giving was wrong and the drawings were wrong. Some people can't read tech drawings, not even simplified one's, I gave both top and side views which didn't show the taper on the mast going around the circumference of the mast but the taper was shown as a shaded area on the side of the mast. I don't know what can be done to be any clearer than that. Yes the graphics are in 2D and not 3D, I for one wouldn't like to do 3D graphics or 3D animations, but it would be nice if you had 3D graphics of the week’s parts that you could turn around to get different views and zoom in or out to see exactly how parts should look when finished. Dream On Darron! It won't happen! I'm not out to make trouble. Like you Tomick! I'm just trying to help other's who need some extra help.
|
|
|
