luigione
#1 Posted : 26 November 2018 13:04:31

Rank: Pro

Groups: Registered

Joined: 27/10/2012
Posts: 146
Points: 427
Location: London
I'm assuming that the operating system for R2D2 will be preloaded on the mainboard. From what I can see from the photos, the mainboard seems to be a variant of an Orange PI zero,will a backup of the operating system be made available in case of corruption?
Back to top
 Report Abusive | Report SPAM
kombat
#2 Posted : 26 November 2018 13:33:59

Rank: Newbie

Groups: Registered

Joined: 23/07/2017
Posts: 1
Points: 6
Location: france

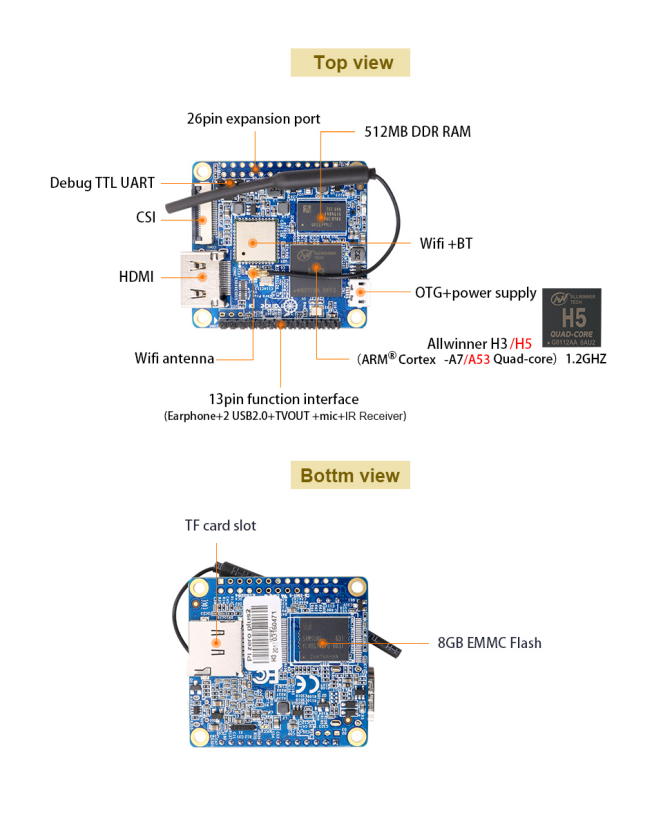

it s a Orange Pi Zero Plus 2 H5



Technical Specs:

H5 Quad-core Cortex-A53
Mali450 GPU
512MB DDR3 RAM (shared with GPU)
Micro SD/TF card (Max. 32GB) /eMMC flash(8GB)
WiFi/BT: AP6212, IEEE 802.11 b/g/n,BT4.2
A CSI input connector Camera, Supports video capture solution up to 1080p@30fps
Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function
26 Pins Header, compatible with Raspberry Pi B+
13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV)
1x USB OTG (also used as power input)
Power and status LEDs
TTL level UART for debug
Supported OS:Linux Android, Ubuntu, Debian, Raspberry Pi Image
Dimensions 48 mm × 46mm
Weight: 36gr
