Hi All, BigGrin

Well, this update has been a while coming. All I can do is apologise for a delay in early part supply, which is out of my control. Blink

Now we are here let`s crack on. ThumpUp Woot

This update is for Issue 6, in which the drivers seat will be extended.

Parts supplied ..... Pic 1. You will also require the drivers seat backrest from Issue 5.

Start by inserting the seat base frame 6A inside the seat base 6B, making sure that the longer flap of the base extends over the frame. Pic 2.

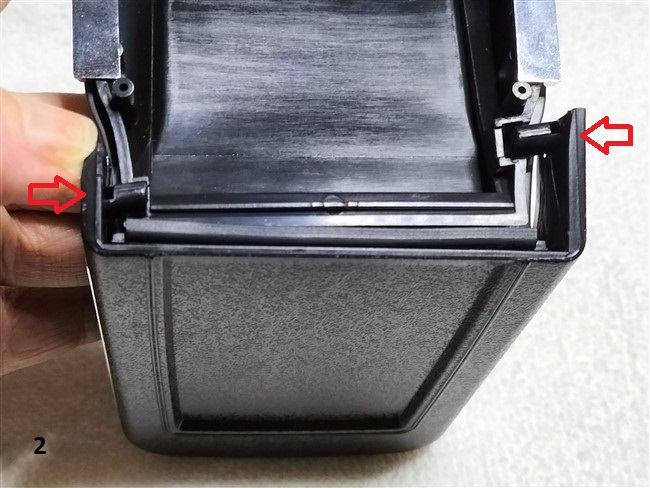

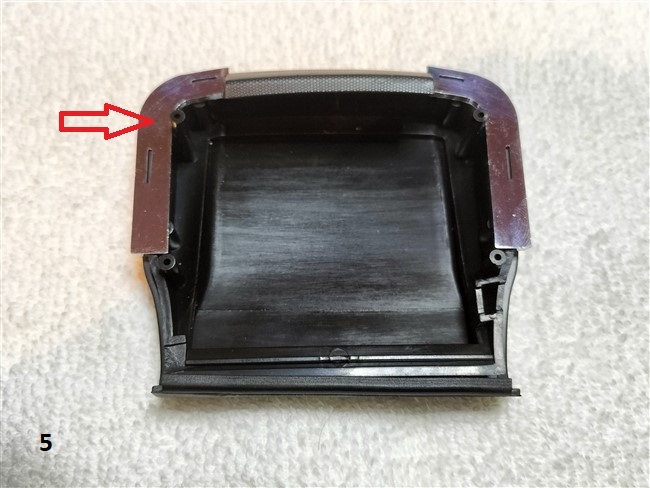

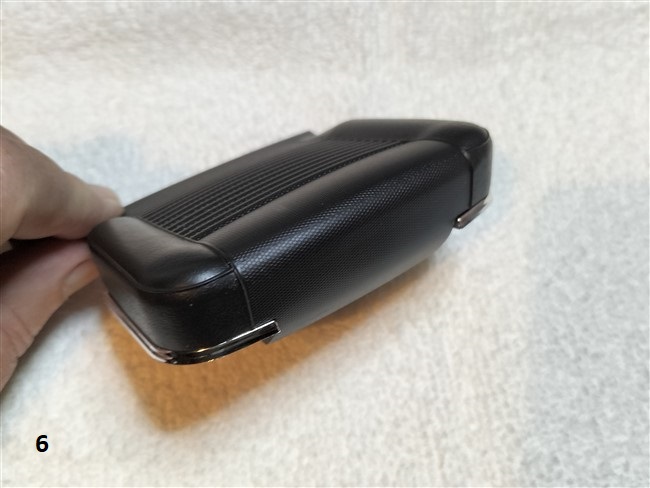

Next fix the left trim (marked "L") onto the seat base. There are two tabs on the seat base that fit into slots in the trim. Pic 3. When correctly inserted it should look like the one shown in Pic 4. Now repeat the previous step and fix the right trim in the same manner. Pic 5. Your seat base should now be the same as that shown in Pic 6.

We now move onto the seat backrest.

Position the part 6C alongside the backrest from issue 5 as shown in Pic 7. Then whilst keeping the foam pad in place turn the backrest from issue 5 over and locate the three pins into their relevant holes and then press the parts firmly together. Pic 8.

That completes this update. Pic 9.

Questions or problems then please raise a topic in the "Discussion area" of this build.

Coming soon: In the next update (Issue 7) we will combine the two seat halves and add some more details to the seat.

Until then take care.

Regards
delboy271155
(Derek) Admin




delboy271155 attached the following image(s):
6 (1).jpg
6 (2).jpg
6 (3).jpg
6 (4).jpg
6 (5).jpg
6 (6).jpg
6 (7).jpg
6 (8).jpg
6 (9).jpg
COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"






delboy271155
#2 Posted : 21 January 2024 13:08:20
Rank: Administration

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Forum Support Team, Administrators, Global Forum Support Team, Moderator, Official Builds

Joined: 09/11/2012
Posts: 7,973
Points: 23,108
Location: East midlands
Hi All, BigGrin

Time for the update for Issue 7. Cool In this update we add the drivers seat base to the backrest and add some more detailing.

Parts supplied..... Pic 1. You will also need the seat assemblies from the previous issue. (#6)

Start by positioning the backrest onto the seat base, noting the pivot points are offset as shown in Pic 2.

The next task is to fit the foam pad (7D) into the base. Note that the foam is wedge shaped and that the thicker end fits inside the front of the base , with the flat side facing you and the sloping side away. Pic 3.

Now positioning the seat base support (7A) over the foam pad. Be sure that you don`t trap the rubberised flap at the front of the base under the support and it goes round the outside of the support frame. Pic 4. Check that the pivots of the backrest are still correctly placed and secure the base support using 4 x PS14 screws. Pic 5.

Keeping the seat in the same position fit the left seat rail (7B) by locating the pins gently into their relevant holes, then press them both into their final position at the same time to avoid any damage. Pic 6. Follow on by fitting the right seat rail (7C) in the same manner. Pic 7.

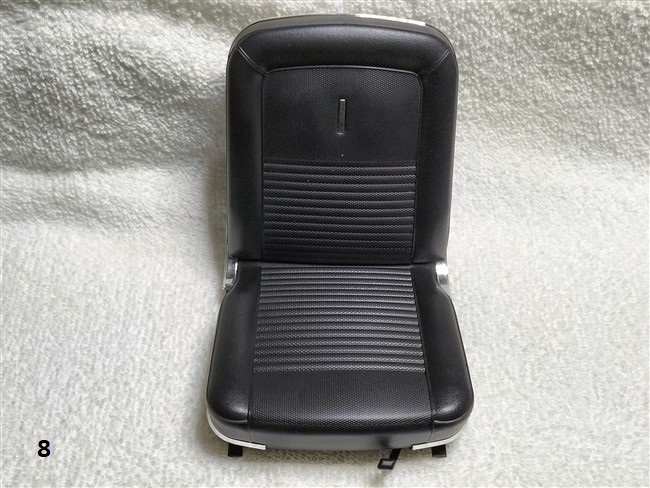

That completes the work for this update and your drivers seat should be as shown in Pic 8, with the backrest able to pivot as shown in Pic 9.
