STAGE 9A:
Engine.
Pic 1: Locate the engine parts 3F and 5A from stages 3 and 5.
You will also need AM screws.
Pic 2: Assemble the parts as shown and fix using 2 x AM screws.
Pic 3: Make sure the water pump pipe locates in the hole in the side of the engine part.
Pic 4: Retrieve the gearbox assembly and fit it to part 5A as shown.
Fix with 2 x ABM screws.
Pic 5: Fit the starter motor 6C to the side of the engine part 6A as shown.
Fix with 1 x AP screw from the end of the engine part.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,698 Points: 14,240 Location: ipswich
|
STAGE 9B:
Pic 6: Fit the injection pump housing 9B and small bracket 9H together as shown, fixing it with 1 x MP screw.
Pic 7: Locate the pump parts 9E, 9F and 9C.
Pic 8: Fit the parts together as shown.
They will only fit one way.
Pic 9: Shows the parts assembled.
Pic 10: Fit the bracket 9G to the assembly as shown and fix with 1 x AP screw.
Pic 11: Press-fit the connector 9D to the assembly as shown.
The part will only fit one way.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,698 Points: 14,240 Location: ipswich
|
STAGE 9C:
Pic 12: Locate the lever parts 9I and 9J.
Pic 13: Fit the lever 9I to the end of the assembly as shown.
The part will only fit one way.
Pic 14: Fit the lever 9J to the end of the assembly as shown.
The part will only fit one way.
Pic 15: Retrieve the right cylinder head 7A and fit the injection pump to the end, beside the distributor as shown.

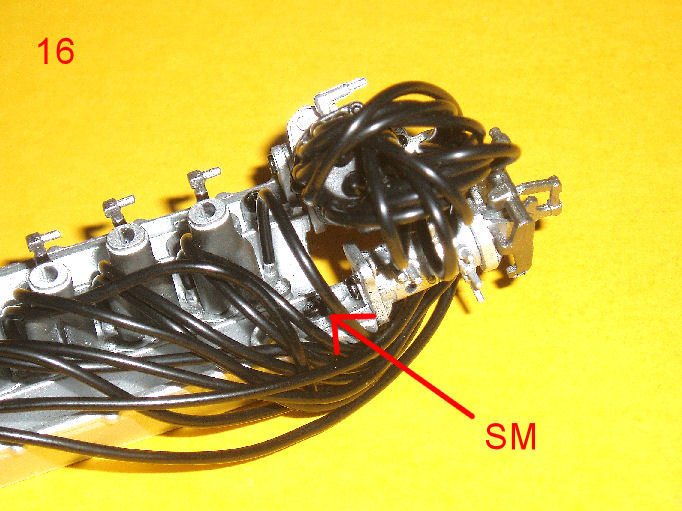

Pic 16: Fix the pump in place with 1 x SM screw.
Pic 17: Fit the valve cover 8A in place as shown, feeding one side under the ignition leads.
Press the part in place.
Pic 18: Fix the cover in place with 2 x AP screws through the holes in the side of the cylinder head.
Pic 19: Store all parts as well as the unused ABM screws safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,698 Points: 14,240 Location: ipswich
|
STAGE 10A:
Injection system.
Pic 1: Retrieve the cylinder head from stage 7 and the fuel lines from stage 9.
Pic 2: Cut the fuel lines into the lengths shown.
BUILDER’S TIP:
The pictures show the build following the printed instructions but connecting most of the fuel lines to the injector pump is extremely fiddly.
You may find it easier to remove the valve cover and the pump and fit the fuel lines to the pump before putting it back on the cylinder head and then connecting the other ends of the lines to the injectors.
This is entirely at the builder’s discretion.
Pic 3: On the injector pump there is a band of 4 x pins.
Fit one end of the 40mm pipe to pin number 2 and the other end to injector 1.
Pic 4: Fit one end of a 55mm pipe to pin number 3 and the other end to injector 2.
Pic 5: Fit one end of a 55mm pipe to pin number 4 and the other end to injector 3.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,698 Points: 14,240 Location: ipswich
|
STAGE 10B:
Pic 6: On the inside of the injector pump there is a short row of 3 x pins.
Fit one end of the 65mm pipe to pin number 1 and the other end to injector 4.
Pic 7: Fit one end of the 80mm pipe to pin number 2 and the other end to injector 5.
Pic 8: Fit one end of the 85mm pipe to pin number 3 and the other end to injector 6.
Pic 9: Retrieve the engine part from stage 6.
Pic 10: Fix the parts together as shown using 2 x ABM screws saved from the previous stage.
Pic 11: Store all parts safely for now.
roymattblack attached the following image(s):
|
|
|
|
