STAGE 87:
Sidepod right top panel.
Pic 1: Fit the top panel 87A in place on the right sidepod and fix using 3 x MP screws.

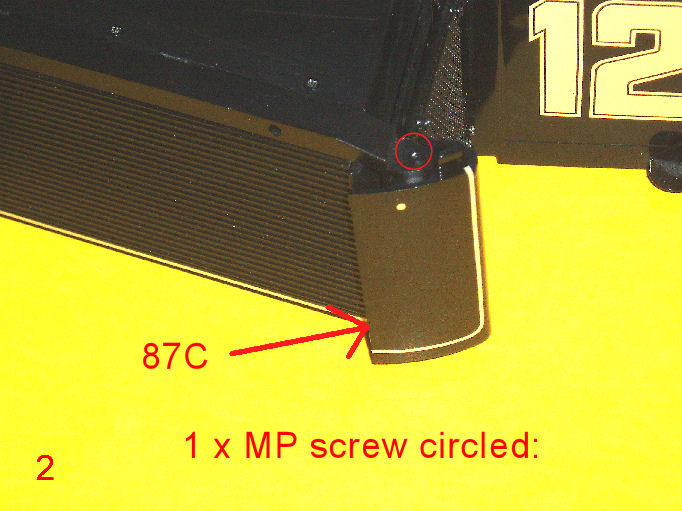

Pic 2: Fit the fight air divider 87C as shown and fix with 1 x MP screw down through the top of the radiator bracket.
Pic 3: Press-fit the two support bracket parts 87B and 87D together as shown.

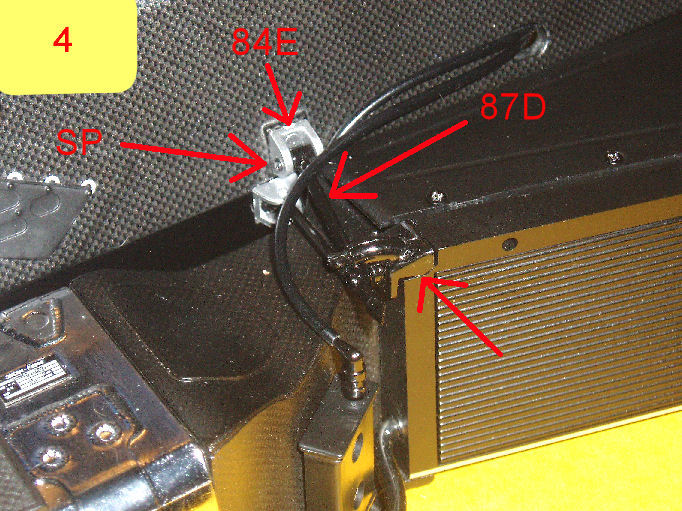

Pic 4: Fit the assembled bracket to the car as shown, locating the end nearer the body in the silver bracket 84E and fixing with 1 x SP screw from behind.
Press the outer end of the assembled bracket in the hole in the upper edge of the radiator as indicated in the picture.
Store the model safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,733 Points: 14,345 Location: ipswich
|
STAGE 88:
Right radiator hose.

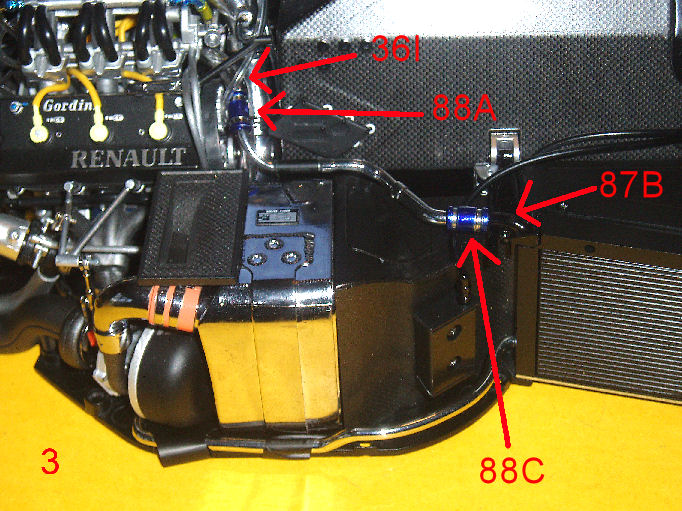

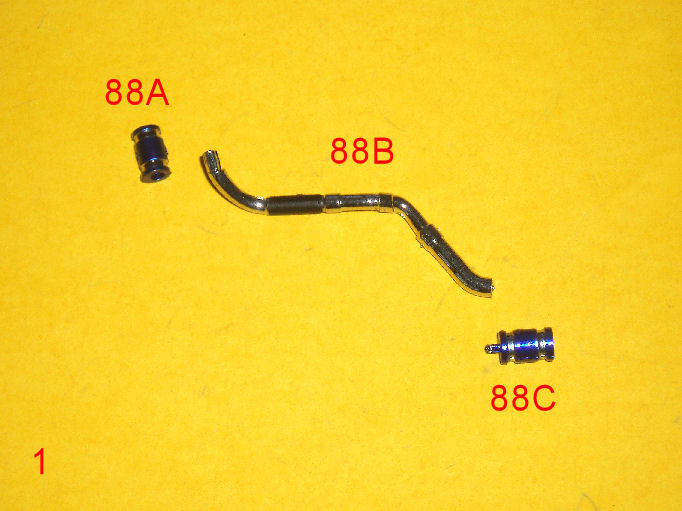

Pic 1: Locate the hose and fittings 88A, 88B and 88C.
Pic 2: Press-fit the parts together as shown.
Pic 3: Fit the assembled hose to the car connecting the ends as shown.
88A fits to the chrome pipe on the engine, 36I.
88C fits to the connector 87B on the top outside of the radiator.
Store the model safely for now.
