STAGE 87:
Fuel filler cap.
Pic 1: Locate the tank neck and fuel cap 87A and 87B.
Pic 2: Press-fit the cap into place as shown.
Pic 3: Retrieve the main body shell and turn it upside down.
Fit the fuel assembly inside the body as shown and fix with 2 x AIM screws.
Pic 4: Fit the small bracket 87D as shown and fix with 2 x AM screws.
Pic 5: From the outside, fit the fuel cover flap 87C as shown so the arm goes through the inside of the body.
Pic 6: From the inside, secure the cover flap arm to the bracket 87D using 1 x IM screw.
Store the assembly safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,736 Points: 14,354 Location: ipswich
|
STAGE 88A:
Rear lights.
NOTE: There are several errors in the printed instructions for this stage.
Please take care and follow this guide.
Pic 1: Retrieve the PCB 44F and locate the wires/plugs ‘C’ and ‘D’.
NOTE: In the printed instructions the wrong plug socket for wire C is shown.
Pic 2: Carefully unplug the two wires.
Pic 3: Using approx. 3cm pieces of tape from stage 62, wrap the wires together where the black and orange sections meet.
Pic 4: Locate the rear light 88B and feed the wires through the square holes as shown.
Fit the correct wire to each side.
NOTE: The part numbering in the printed instructions is very confusing. Follow the instructions here.
Pic 5: On the outside of the light, fit the LED’s as shown.
Pic 6: Press-fit the light reflectors 88A and 88C as shown, from inside the body.
They will only fit on the correct sides.
Pic 7: Turn the body upside down and fit the light as shown.
Care and patience is needed here as the parts are an awkward fit.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,736 Points: 14,354 Location: ipswich
|
STAGE 88B:
Pic 8: Retrieve the PCB 44F and locate the wires/plugs ‘E’ and ‘F’.
NOTE: In the printed instructions the wire numbering is again very confusing and also wrong.
Pic 9: Unplug wires ‘E’ and ‘F’.
Pic 10: As before, wrap the wires using tape 62D.
NOTE: In the printed instructions wire ‘F’ is incorrectly labelled ‘C’.
Pic 11: Locate the rear light 88D and feed the wires through the square holes as shown.
Fit the correct wire to each side.
Pic 12: As before, loop the LED’s inside the light as shown.
Pic 13: Turn the body upside down and fit the light as shown.
Care and patience is needed here as the parts are an awkward fit.
Pic 14: Fit two further AM screws as shown to secure the lights.
Store the assembly safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,736 Points: 14,354 Location: ipswich
|
STAGE 89A:
Rear Bumper.

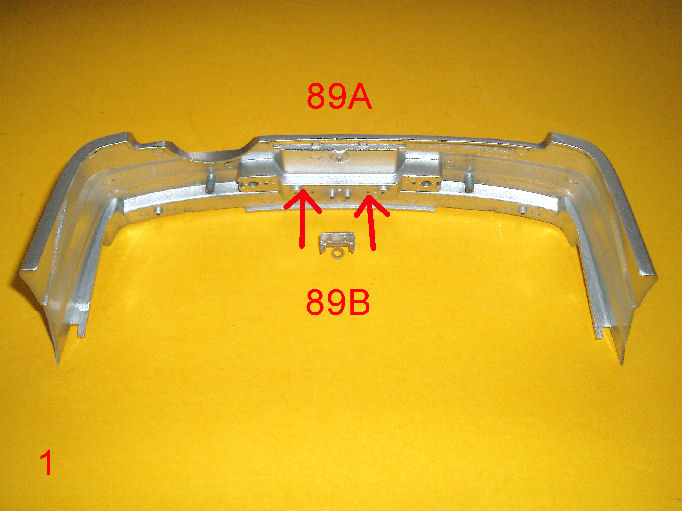

Pic 1: Locate the rear bumper and licence plate light holder parts 89A and 89B.
Pic 2: Fit the parts together as shown and fix with 2 x CM screws.
Pic 3: Retrieve the PCB 44F and locate the wire and plug ‘S’.

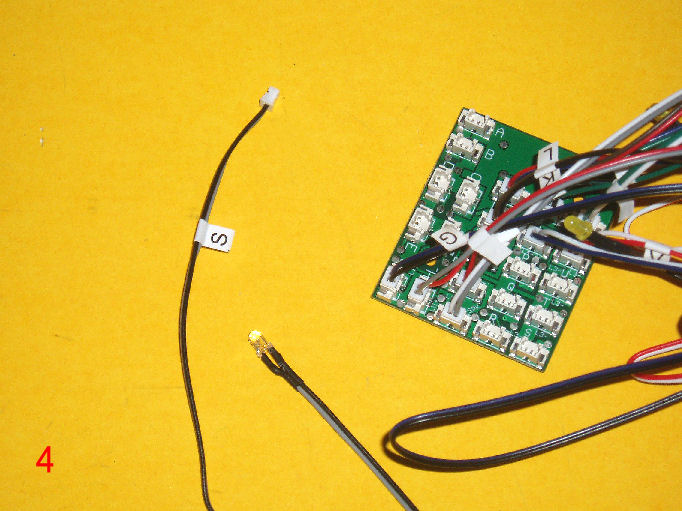

Pic 4: Carefully unplug wire ‘S’.

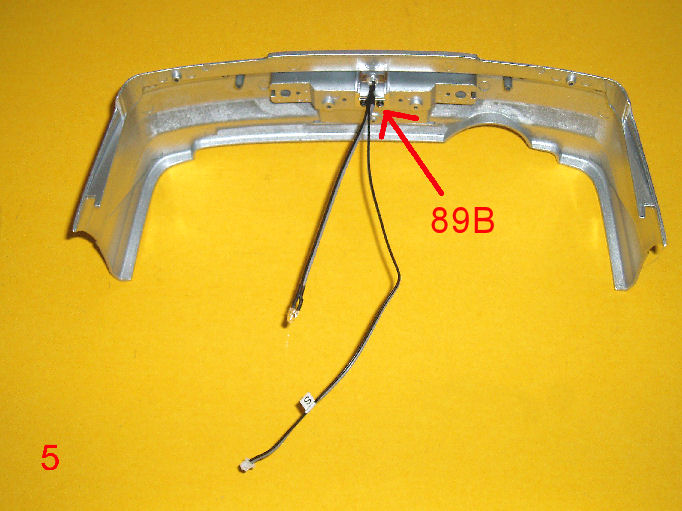

Pic 5: Fit the centre LED on wire ‘S’ into the hole on the licence plate lamp holder.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,736 Points: 14,354 Location: ipswich
|
STAGE 89B:

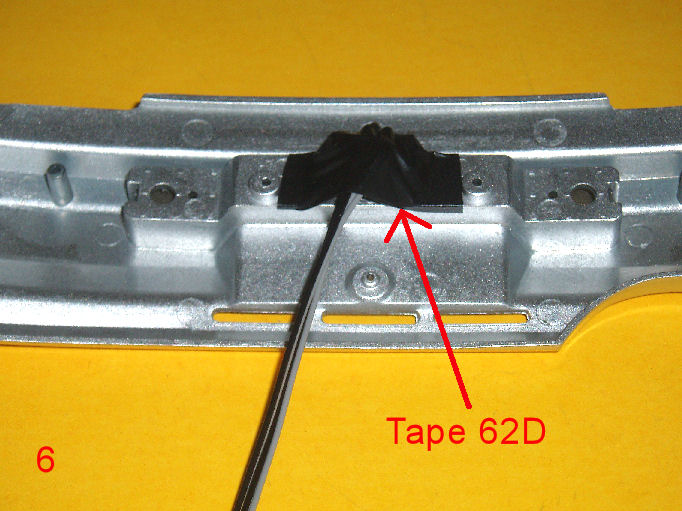

Pic 6: Use a piece of tape 62D to hold the wires down.
Pic 7: Retrieve the main body and turn it upside down to fit the rear bumper in place as shown.
Pic 8: The tab on the rear bumper must lock in place with the tab on the inside of the body as shown.

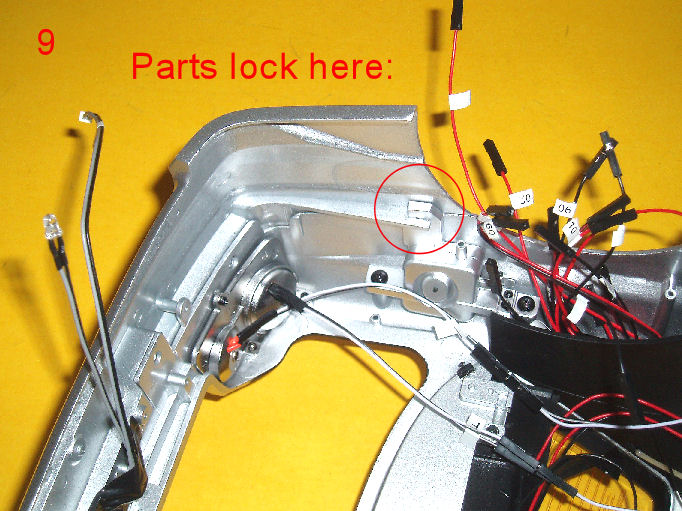

Pic 9: The tab on the other side of the rear bumper must also lock in place with the tab on the inside of the body as shown.

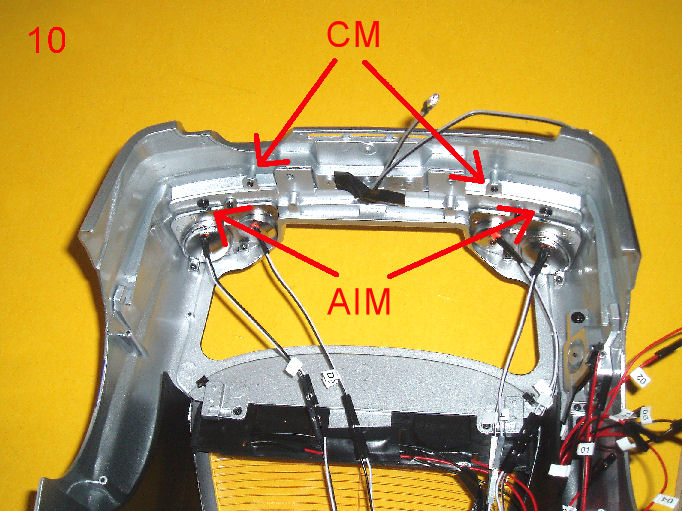

Pic 10: Fix the bumper to the body using 2 x CM and 2 x AIM screws.
Pic 11: Store the model safely for now.
roymattblack attached the following image(s):
|
|
|
|
