Issue 27
The Helmet
Picture 1 shows the contents of this issue.
Take the two eye frames and note the differences in the left and right parts. Picture 2 illustrates the correct numbered parts.
Take the right eye lens from issue 2 and attach the right eye frame (DV-27-03), picture 3. Do the same with the left eye, picture 4.
Place the left eye assembly into the mask pushing the pegs of the eye cover into their corresponding holes, picture 5.
Follow the same procedure for the right eye cover, picture 6.
Picture 7 show the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,740 Points: 20,537 Location: Northamptonshire, England
|
Issue 28
The Helmet
Picture 1 shows the contents of this issue.
Fit the inner nose tube end pieces as shown in picture 2. They are marked with “L” and “R” on them.
Take the first of eye frame tubes. These are all individually marked with the tag on the end. Use the tube marked DV-28-07 and place it to the inner right-hand side of the inner mask, pushing both ends into their respective holes as shown in pictures 3 and 4. Take the next two right hand tubes, marked DV-28-03 and 04, and fit them as illustrated in picture 5.
Do the same with the left-hand side as illustrated in picture 6 using the remaining three tubes.
Picture 7 show the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,740 Points: 20,537 Location: Northamptonshire, England
|
Issue 29
The Helmet
Picture 1 shows the contents of this issue.
Note: The magazine has the last two parts on the first build page marked wrongly. Please see picture 2 for the correct numbered parts.
Take the right-hand inner cheek, marked “R” on the inside and place it as shown in picture 3. Do the same with the left-hand cheek, picture 4.
Remove the protective adhesive sheet from the right conductor plate and place it into position, picture 5 and again do the same with the left-hand conductor plate, picture 6.
Note: I found that the adhesive tape did not stick the part into place very well, so I used a little glue.
Attach the two internal conductor plate connectors onto the conductor plate as shown in picture 7.

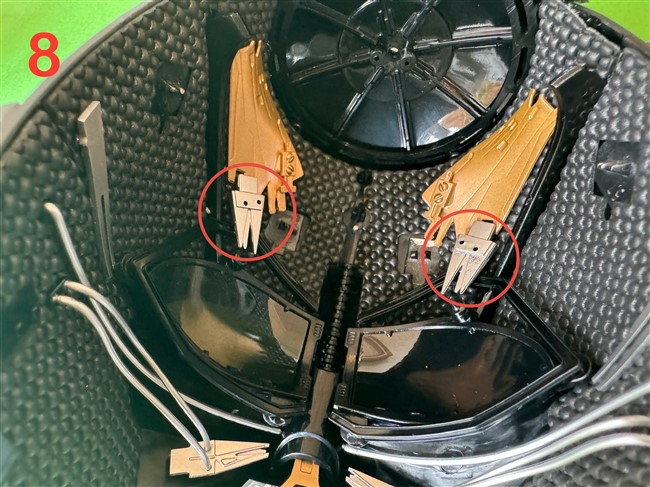

Finally, attach the two internal conductor plate end pieces by push fitting the two pegs into the eye frame, picture 8.
That completes the assembly for this issue.
