STAGE 15A:
Left exhaust.
Pic 1: Locate the exhaust parts 15A and 15B.
Pic 2: Fit the parts together as shown and fix with 2 x AP screws.
Pic 3: Locate the exhaust parts 15C and 15D.
Press-fit them together. They will only fit one way.
Pic 4: Fix these parts to the assembly in pic 2 using 2 x AP screws.
Pic 5: Fit the manifold assembly to the left bank exhaust 15E.
Pic 6: Fit the upper part of the exhaust 15F as shown and fix from the other side with 2 x EP screws.
Pic 7: Press-fit the end section 15G in place.
It will only fit one way.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,812 Points: 14,582 Location: ipswich
|
STAGE 15B:
Pic 8: Retrieve the engine assembly and fit the rubber hose 14L to the pin on the side of the engine block.
Pic 9: Temporarily disconnect the two central plug wires on the left side of the engine.
Pic 10: Fit the exhaust assembly in place as shown and fix using 2 x CM screws.
Pic 11: Reconnect the two central plug wires.
Store the engine safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,812 Points: 14,582 Location: ipswich
|
STAGE 16A:
Right exhaust.
Pic 1: Locate the exhaust parts 16A and 16C.
Pic 2: Fit the parts together as shown and fix with 2 x AP screws.
Pic 3: Locate the exhaust parts 15B and 15D.

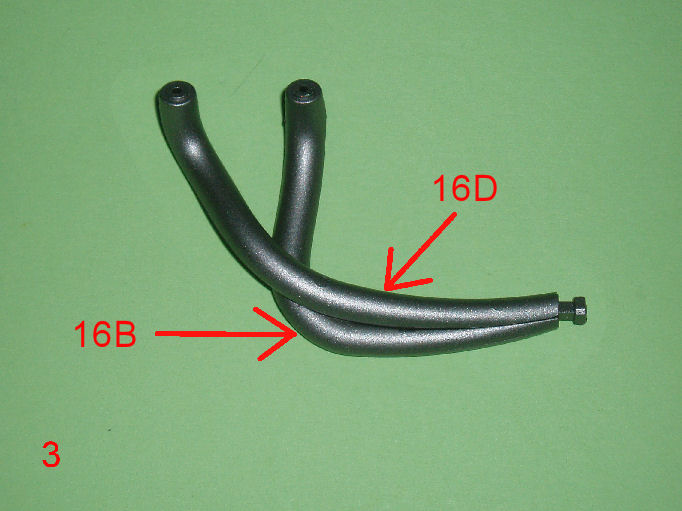

Press-fit them together. They will only fit one way.

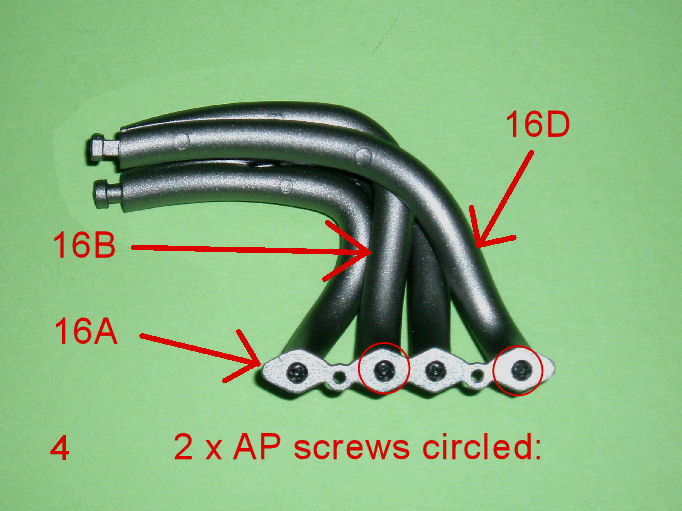

Pic 4: Fix these parts to the assembly in pic 2 using 2 x AP screws.

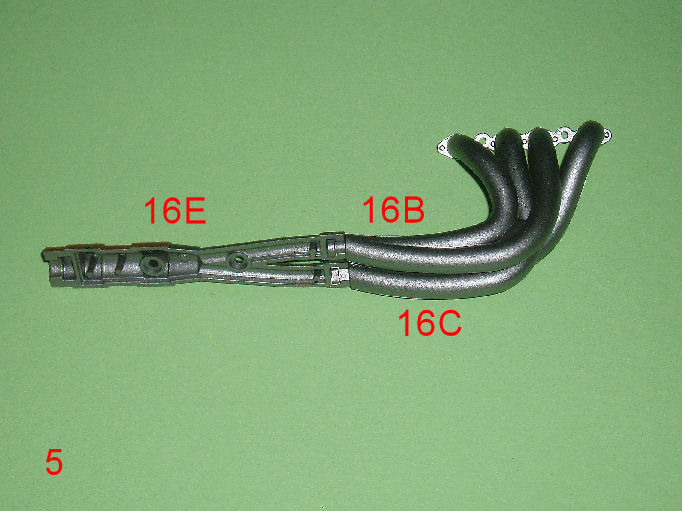

Pic 5: Fit the manifold assembly to the left bank exhaust 16E.

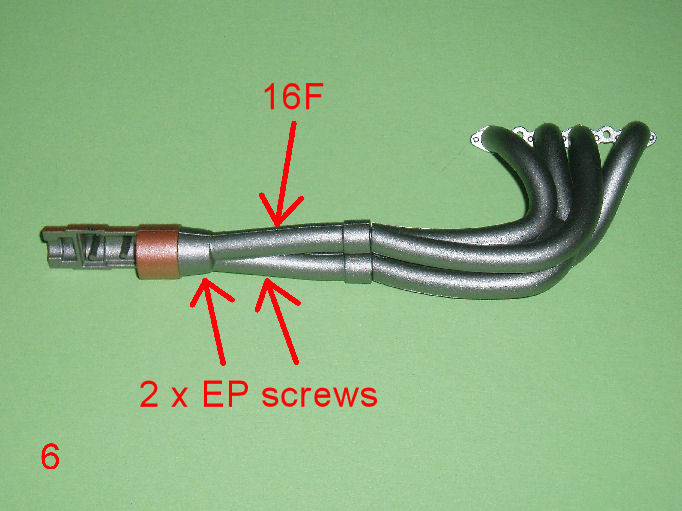

Pic 6: Fit the upper part of the exhaust 16F as shown and fix from the other side with 2 x EP screws.
Pic 7: Press-fit the end section 16G in place.
It will only fit one way.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,812 Points: 14,582 Location: ipswich
|
STAGE 16B:

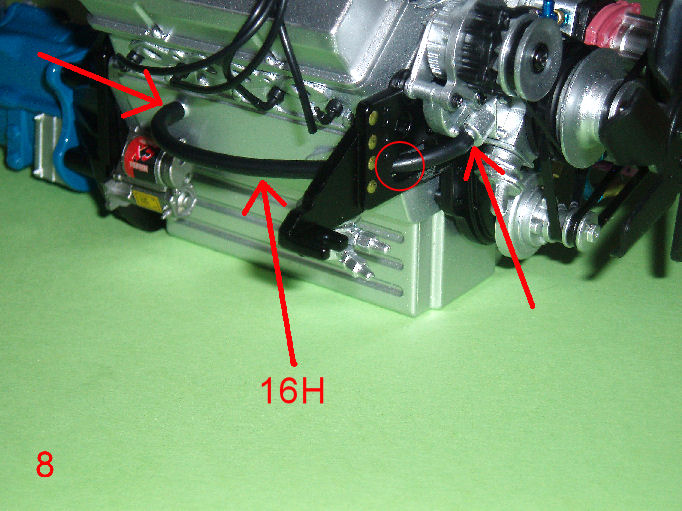

Pic 8: Retrieve the engine assembly and fit the rubber hose 16H to the pin on the side of the engine block and the water pump as shown.

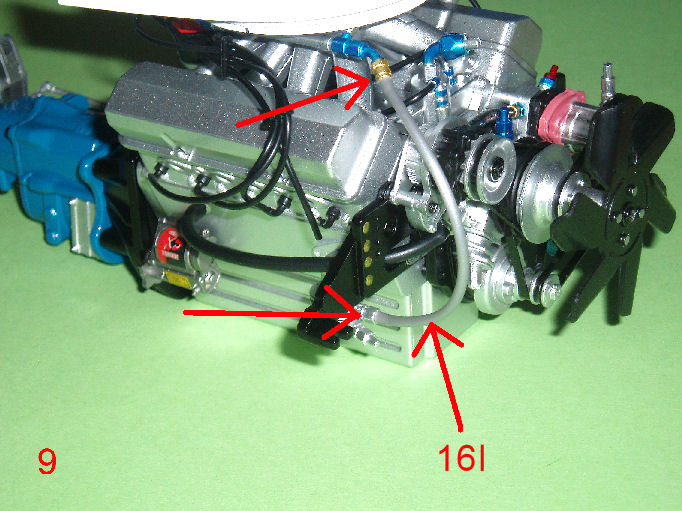

Pic 9: Connect the grey hose 16I to the fuel pump and fuel supply as shown.
Pic 10: Temporarily disconnect the two central plug wires on the right side of the engine.

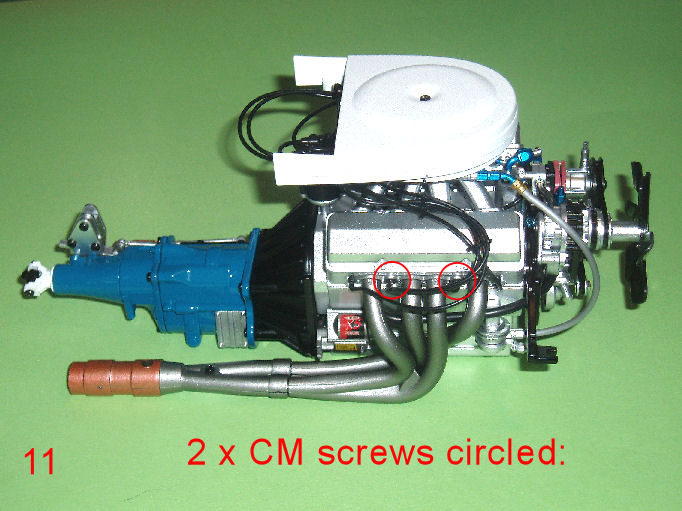

Pic 11: Fit the exhaust assembly in place as shown and fix using 2 x CM screws.
Reconnect the two central plug wires.
Store the engine safely for now.
roymattblack attached the following image(s):
|
|
|
|
