STAGE 9:
Right engine block.

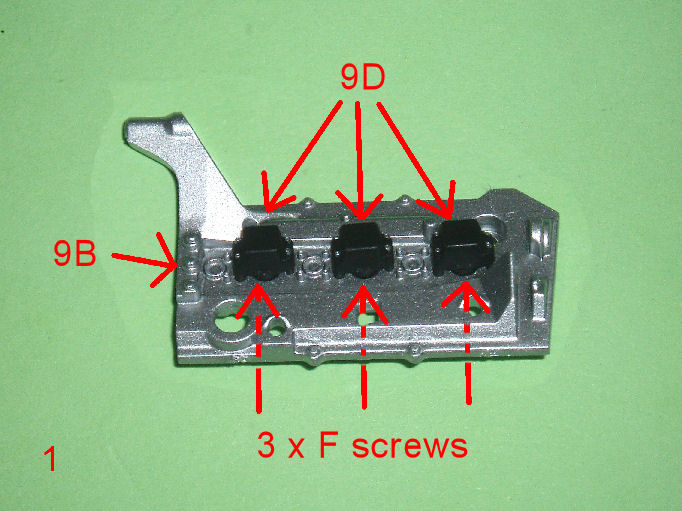

Pic 1: Fit the 3 x ignition coils 9D into the cylinder head 9B as shown.
They will only fit one way.
Fix from behind with 3 x F screws.
Pic 2: Fit the cylinder head part 9E to 9B as shown and fix at one end from behind with a G screw.
Pic 3: Press-fit the cylinder head shield 9B in place as shown.
It will only fit one way.
Pic 4: Locate the engine block 9A. The cylinder head assembly will fit on top.

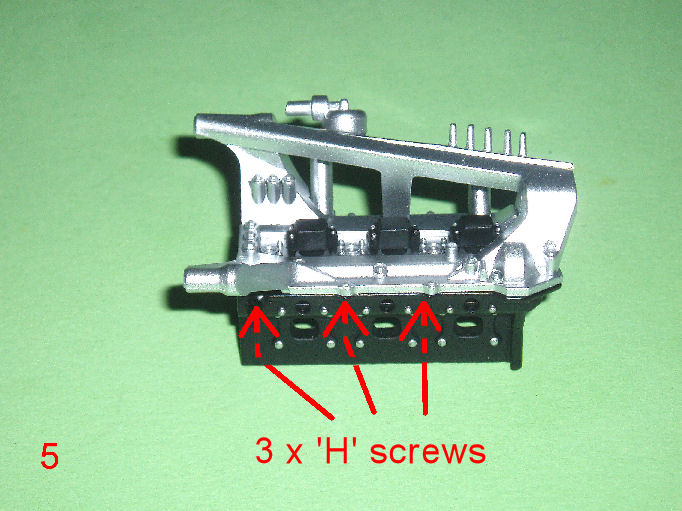

Pic 5: Fit the parts together and secure from underneath with 3 x H screws.
Pic 6: Shows the completed stage.
Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,882 Points: 14,792 Location: ipswich
|
STAGE 10:
Left engine block.

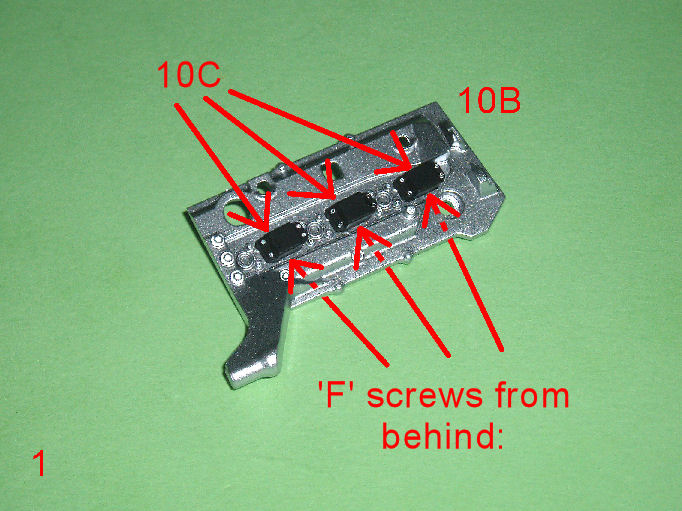

Pic 1: Fit the coils 10C to the cylinder head 10B and fix from behind with 3 x ‘F’ screws.

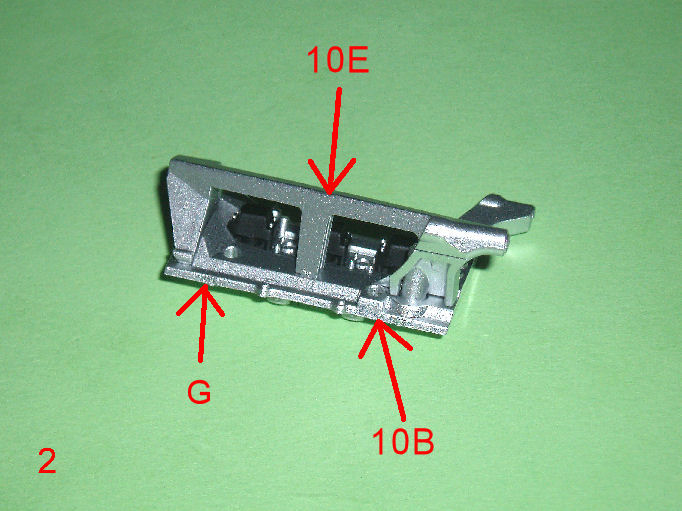

Pic 2: Fit the cylinder head part 10E as shown and fix from underneath with 1 x ‘G’ screw.

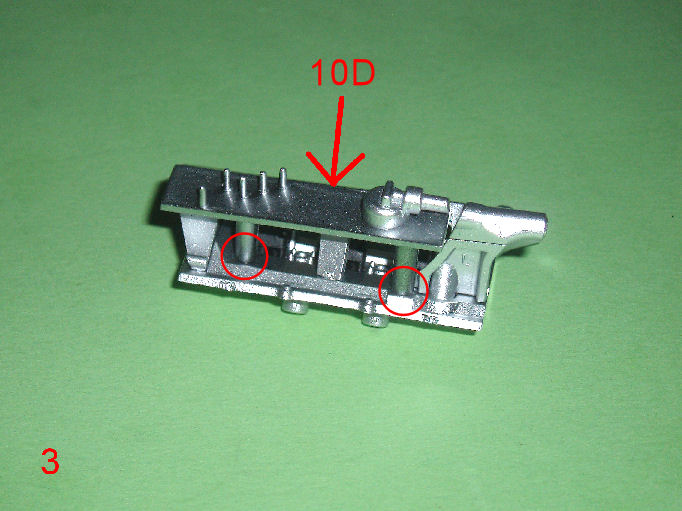

Pic 3: Press-fit part 10D in place as shown.
Pic 4: Locate the engine block part 10A. The cylinder head will fit on top.
Pic 5: Fit the two parts together as shown and fix from underneath with 3 x ‘H’ screws.
Pic 6: Shows the 3 x ‘H’ screws.
Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,882 Points: 14,792 Location: ipswich
|
STAGE 11:
Central engine block.
Pic 1: Locate the central block 11A and retrieve the two cylinder heads 9A and 10A.
Pic 2: Fit the heads in place as shown and fix using 4 x ‘I’ screws.
Pic 3: Press-fit 3 x spark plug covers 11B in place as shown.
Pic 4: On the other side, press-fit 3 x spark plug covers 11B in place as shown.
Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
|
