STAGE 97:
Rear diffuser arms:

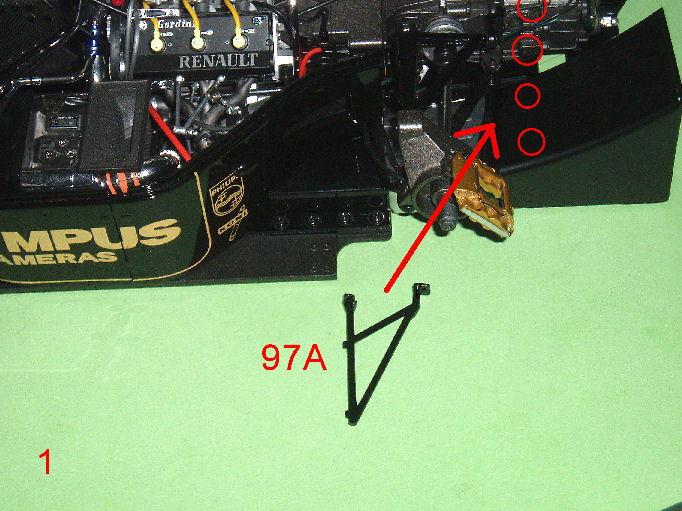

Pic 1: Locate the left diffuser arm 97A.
Note the four locating points on the model.

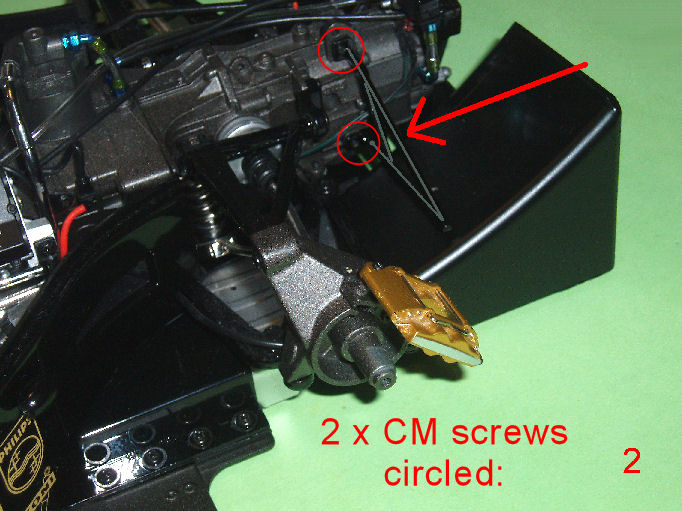

Pic 2: Fit the arm in place as shown. The fixing tabs on the upright end should be facing forwards.
The two pegs on the lower arm locate in the holes on the top of the diffuser.
Fix using 2 x CM screws as shown
.

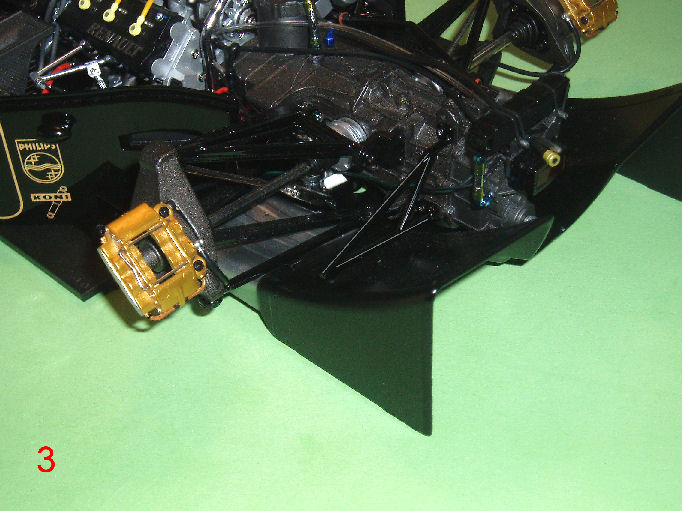

Pic 3: Shows the assembly from behind.

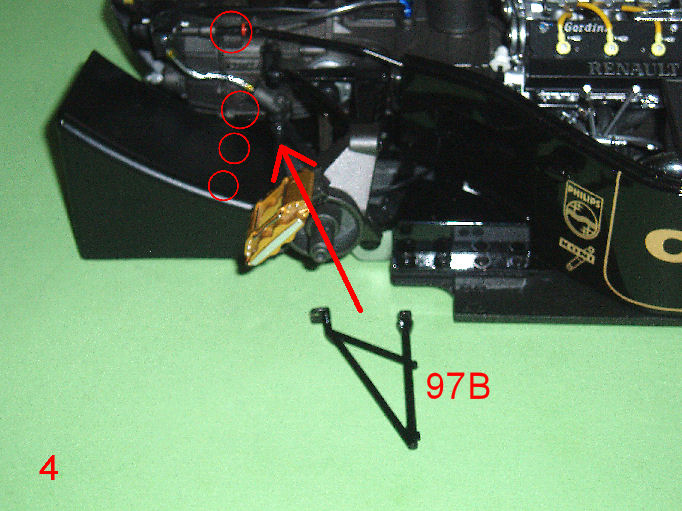

Pic 4: Locate the right diffuser arm 97B. It will fit to the car as before.

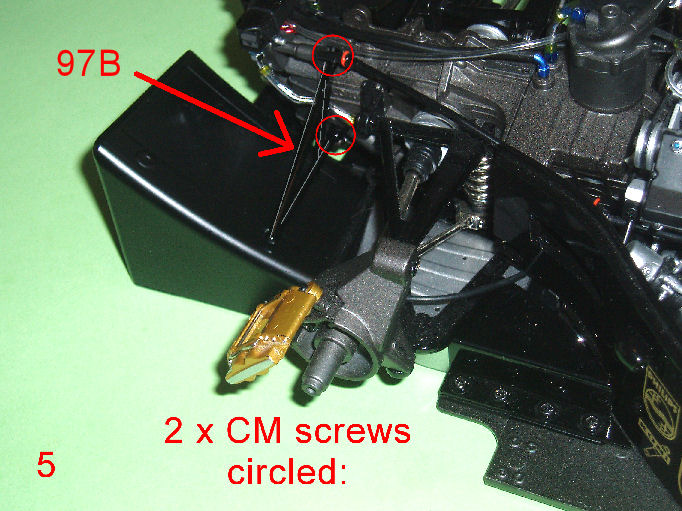

Pic 5: Fit the arm in place as shown. The fixing tabs on the upright end should be facing forwards.
The two pegs on the lower arm locate in the holes on the top of the diffuser.
Fix using 2 x CM screws as shown.

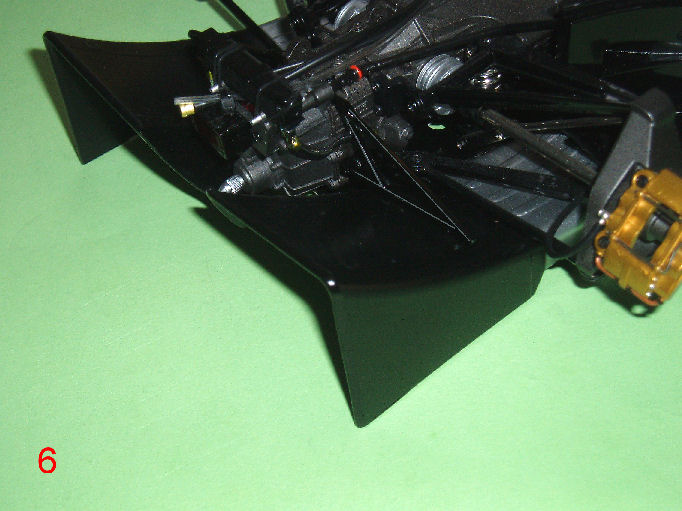

Pic 6: Shows the assembly from behind.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
|
