STAGE 27:

Front left brake cooling.

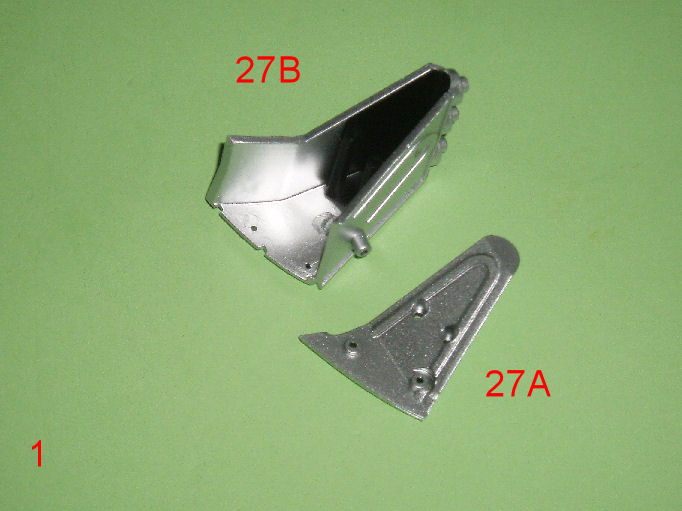

Pic 1: Locate the air box parts 27A and 27B.

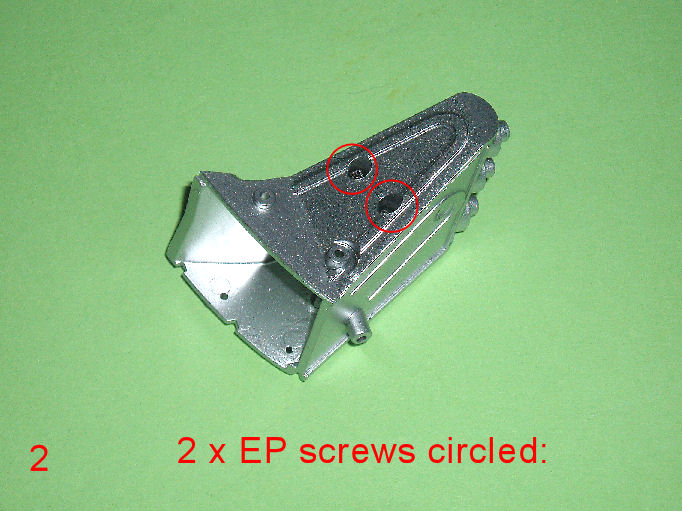

Pic 2: Fit them together and fix with 2 x EP screws.

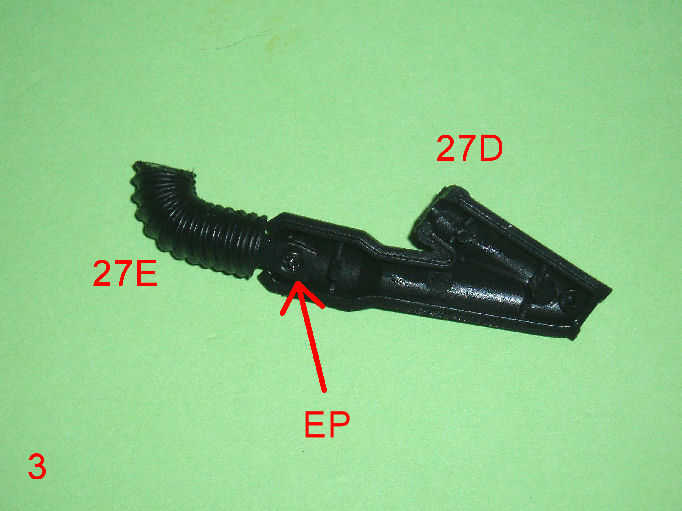

Pic 3: Fit the rubber hose 27E onto the pin on the end of the cooling duct 27D as shown and fix with 1 x EP screw.

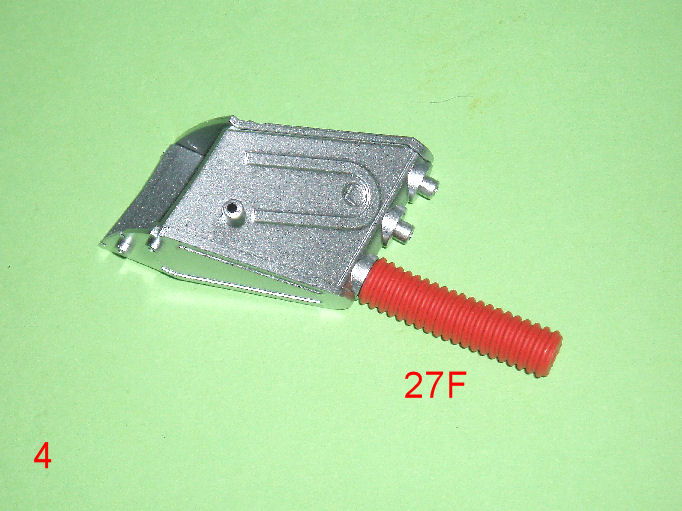

Pic 4: Fit the cooling duct 27F to the lower pin on the air box as shown.
NOTE – The duct 27F has a larger hole in one end. This is the hole that fits to the air box.

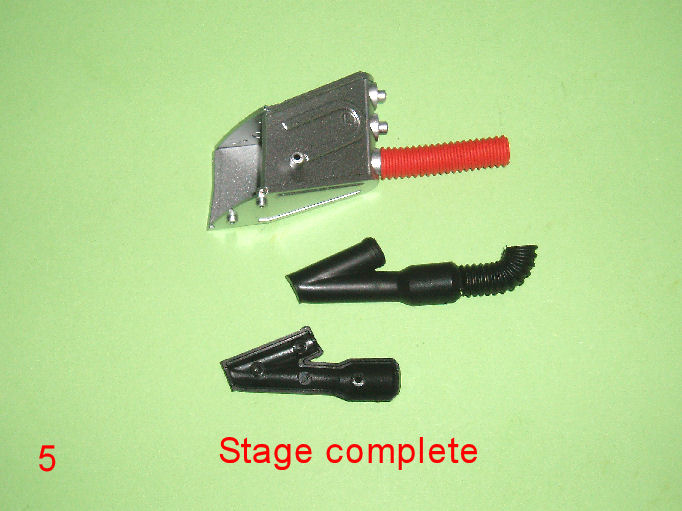

Pic 5: Store the parts safely for now.
roymattblack attached the following image(s):
roymattblack
#2 Posted : 04 September 2025 10:11:35

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 4,919
Points: 14,903
Location: ipswich
STAGE 28:

Front left brake cooling.

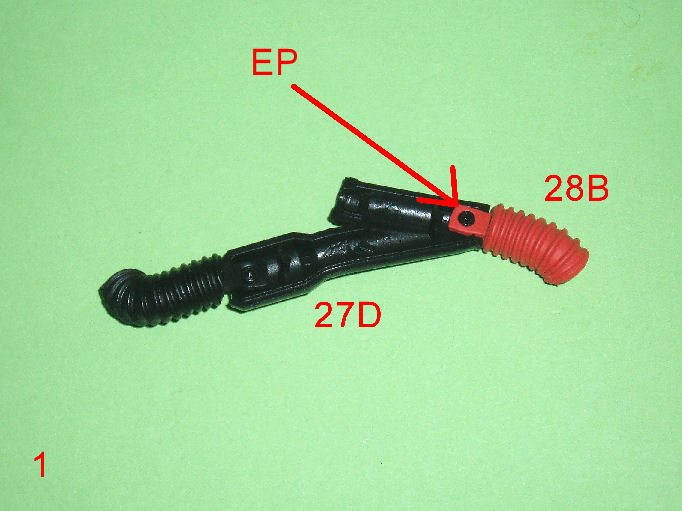

Pic 1: Retrieve the cooling duct 27D from the previous stage and fit the orange hose 28B as shown.
Fix with 1 x EP screw.

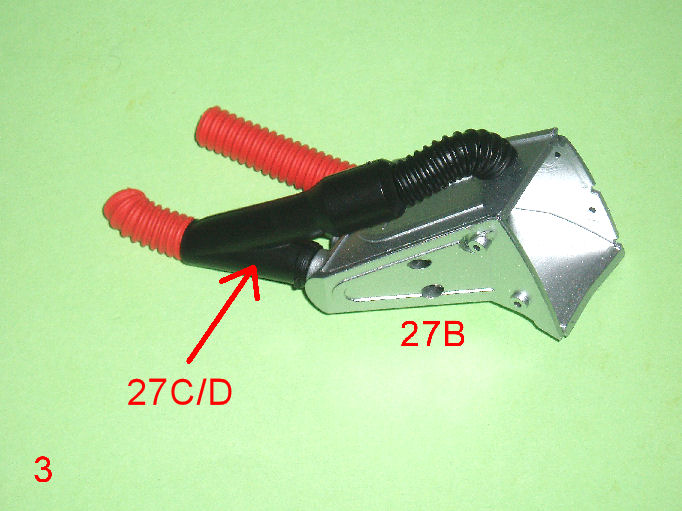

Pic 2: Press-fit the duct parts 27C from the previous stage and 27D together
.
Pic 3: Retrieve the air box assembly 27B and press-fit the duct assembly in place as shown.

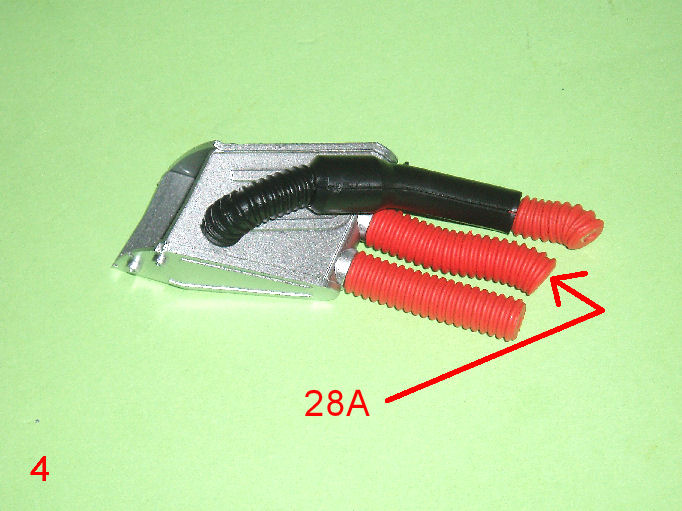

Pic 4: Press-fit the duct pipe 28A in place on the air box noting it is the large hole end that fits here.

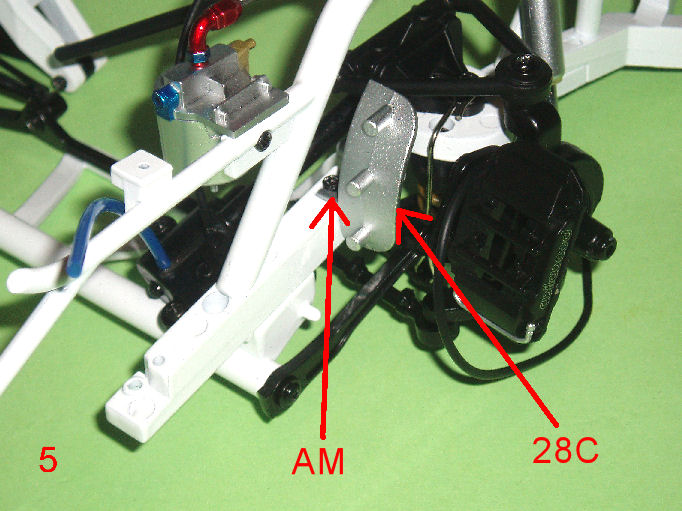

Pic 5: Retrieve the main front frame and fit the left cooling duct 28C in place as shown.
Fix with 1 x AM screw.

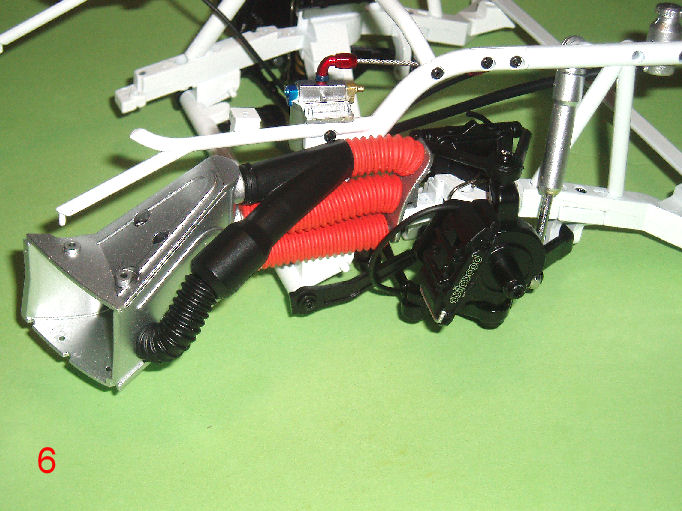

Pic 6: Fit the cooling duct assembly to the duct 28C.
The three orange hoses all press-fit into place.

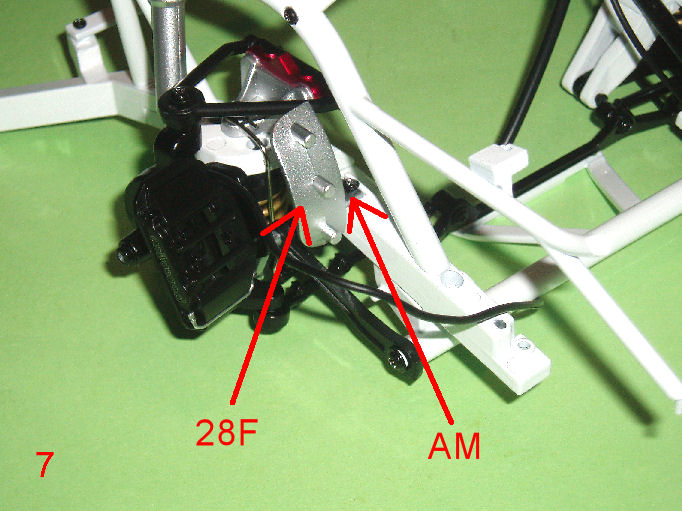

Pic 7: Fit the right cooling duct 28F on the other side of the frame and fix with 1 x AM screw.

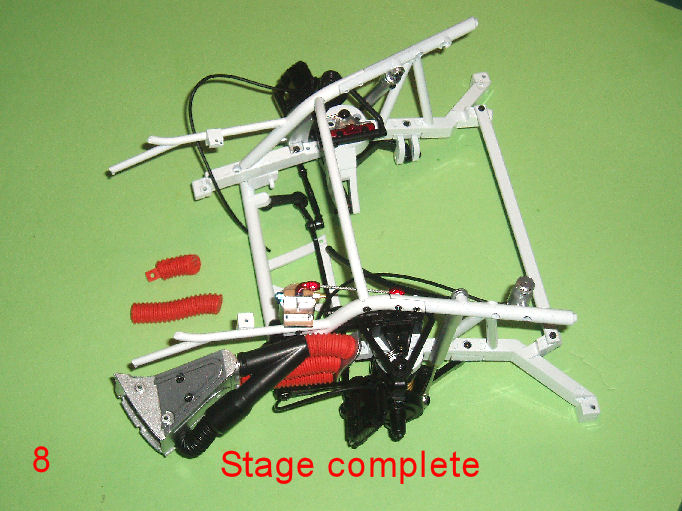

Pic 8: Store the assembly and unused parts for now.

roymattblack attached the following image(s):
