STAGE 6:
Engine block 2.
Pic 1: Fit the support mount 6C to the engine block 6A as shown.
Pic 2: Fit the engine support 6B to the side of the block 6A.
It will only fit one way.
Fix from the other side with 1 x CM screw.
Pic 3: Press-fit the oil cap 6E into the crank case pan 6D.
Pic 4: Fit the crank case pan to the crank case part 6F as shown.
Pic 5: Fix the parts together from the other side with 4 x AP screws.
Pic 6: Fix the mounting bracket 6G to the crank case using 2 x AM screws
Pic 7: Fit the engine block 6A to the crankcase and fix through the bracket with 2 x AM screws.
Store the assembly safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,942 Points: 14,972 Location: ipswich
|
STAGE 7:
Engine block 3.

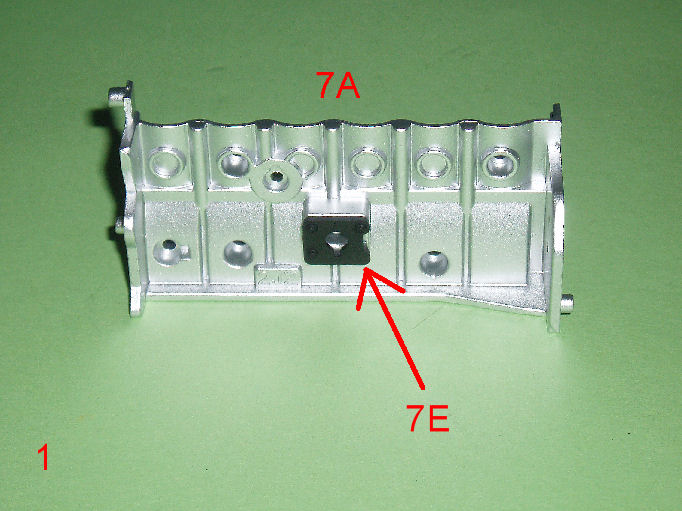

Pic 1: Fit the support mount 7E to the engine block 7A as shown.

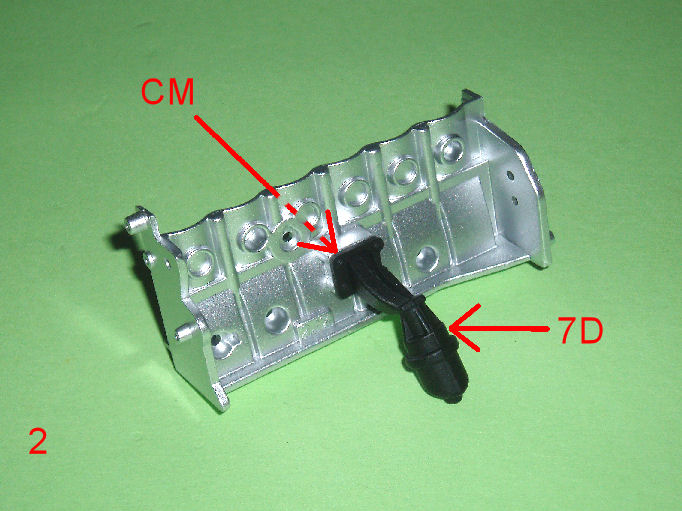

Pic 2: Fit the engine support 7D to the side of the block 7A.
It will only fit one way.
Fix from the other side with 1 x CM screw.
Pic 3: Locate the two parts of the starter motor 7F and 7G.
They will fit together as indicated.
Pic 4: Press-fit the two parts together.
Pic 5: Fit the assembly to the engine block as shown and fix with 1 x AP screw.
Pic 6: Store all parts safely.
roymattblack attached the following image(s):
|
|
|
|
