Issue 100

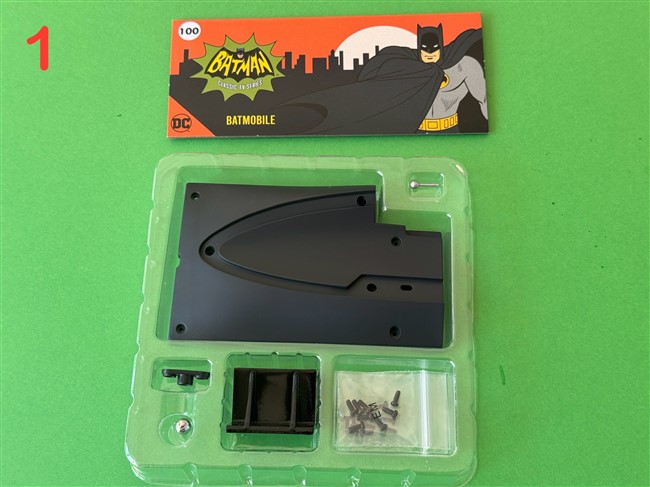

Picture 1 shows the contents of this issue.
Fitting the Trim and Attaching the Door

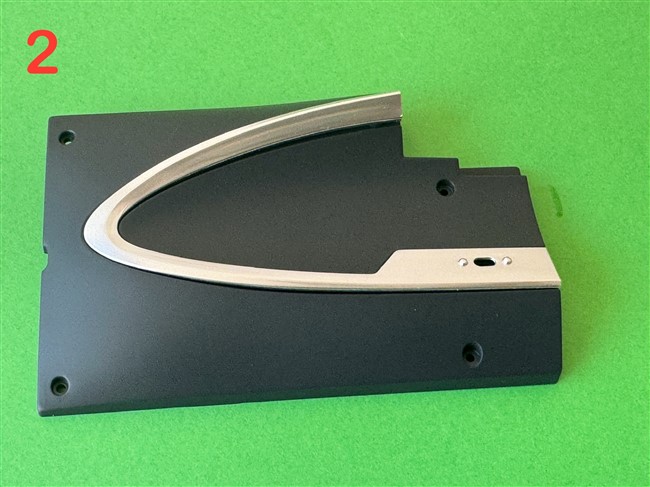

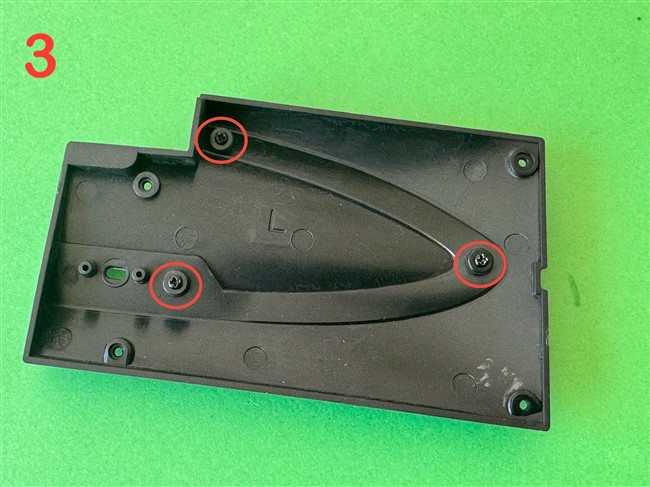

Retrieve the door trim from issue 99 and insert it in the left door inside panel (100A), picture 2. Turn the assembly over and secure it in place using 3 x AP screws, picture 3.

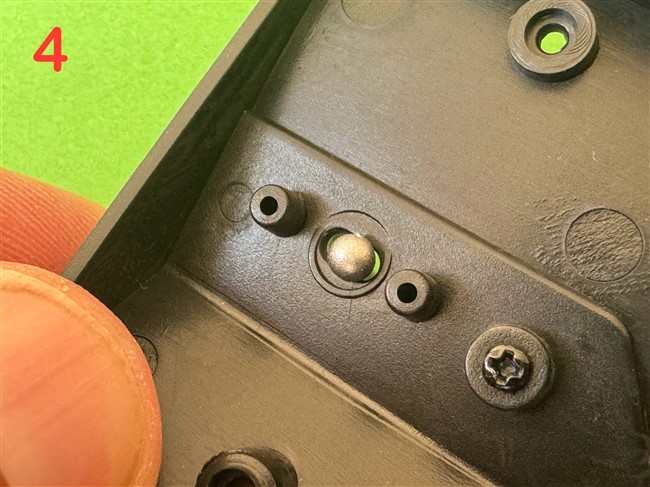

Push the door handle (100B) through the oval shape hole, picture 4. Cover the round part of the door handle with the door handle bracket (100D) securing it in place using 2 x AP screws, picture 5.

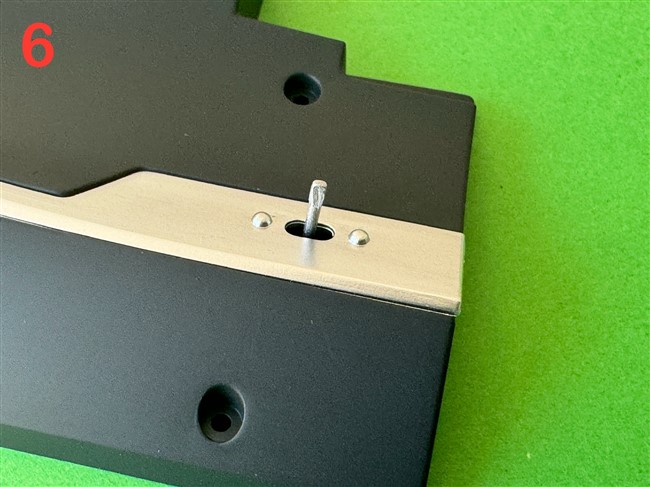

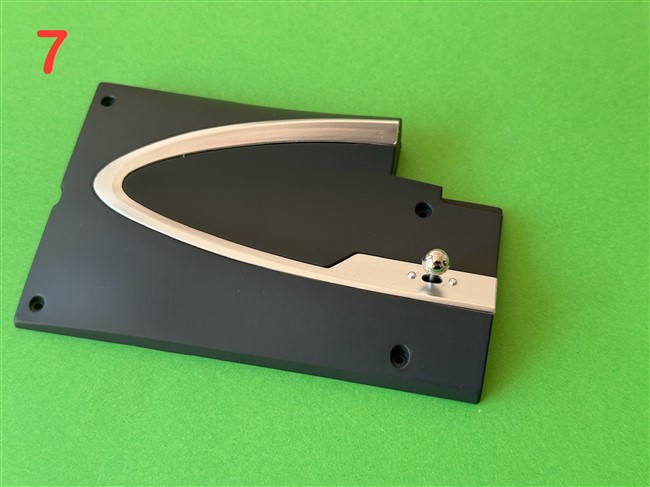

Turn the assembly back over and attach the door handle head (100C), picture 6 and 7.

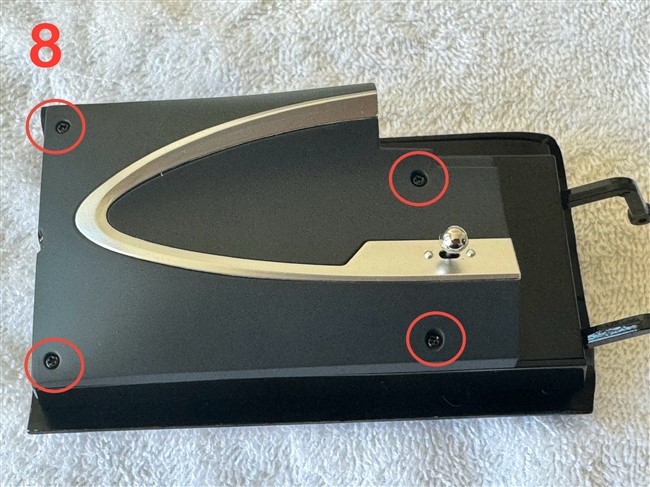

Take the door panel assembly and attach it to the left door using 4 x AP screws, picture 8.

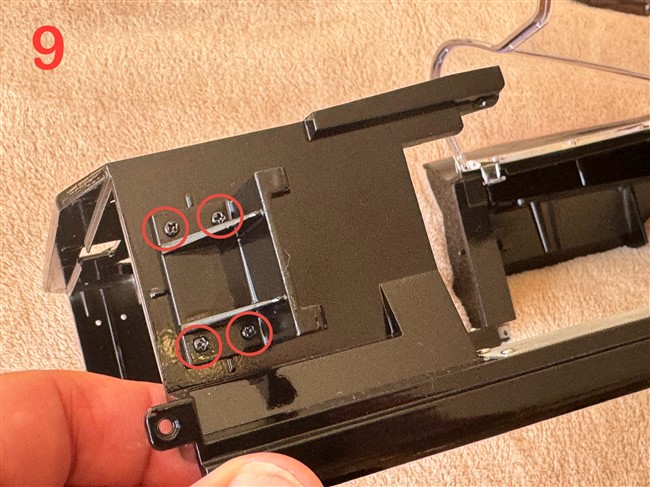

Use 4 x EN screws to attach the door hinge (100E) to the body frame, picture 9.
Finally, attach the door to the hinge using 2 x EM screws.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,830 Points: 20,807 Location: Northamptonshire, England
|
Issue 101

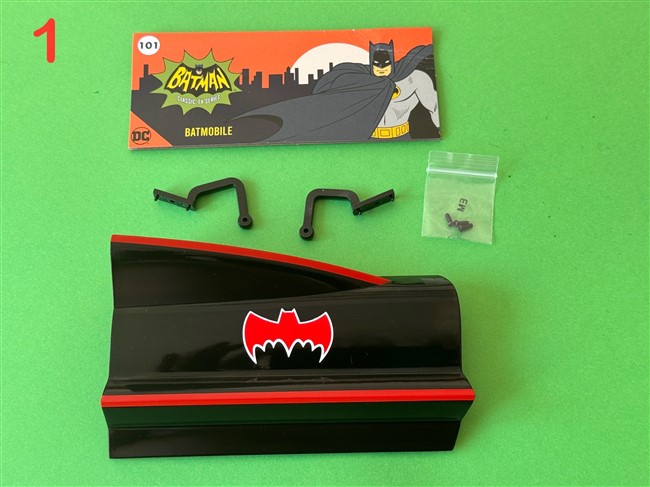

Picture 1 shows the contents of this issue.
Fitting the Hinges

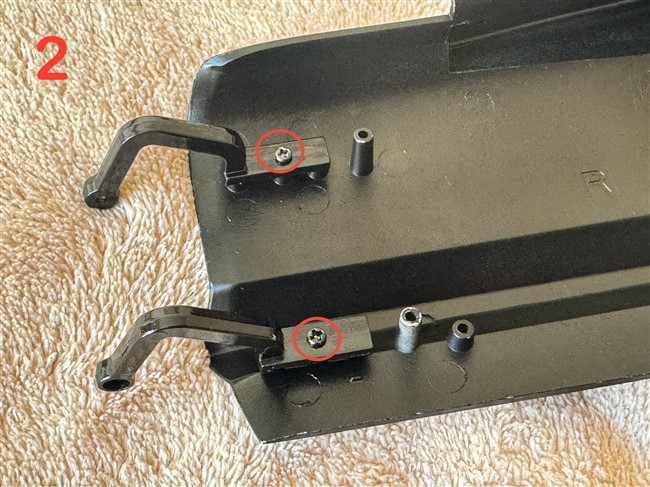

Fix the two door hinges (101B & 101C) to the door as you did previously, picture 2.

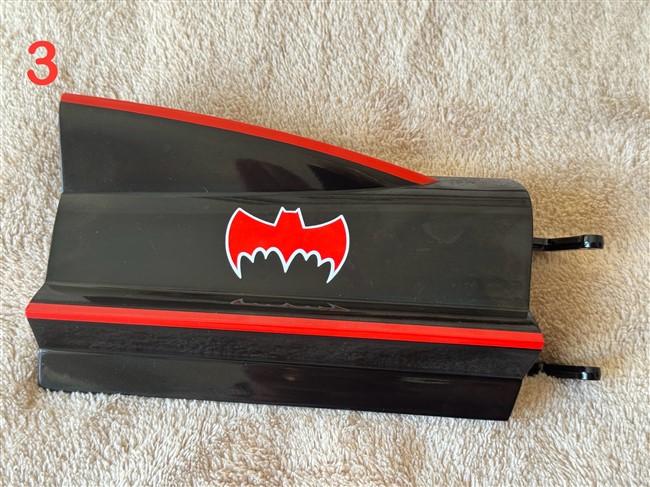

Picture 3 shows the assembly complete for this issue.
