Issue 91

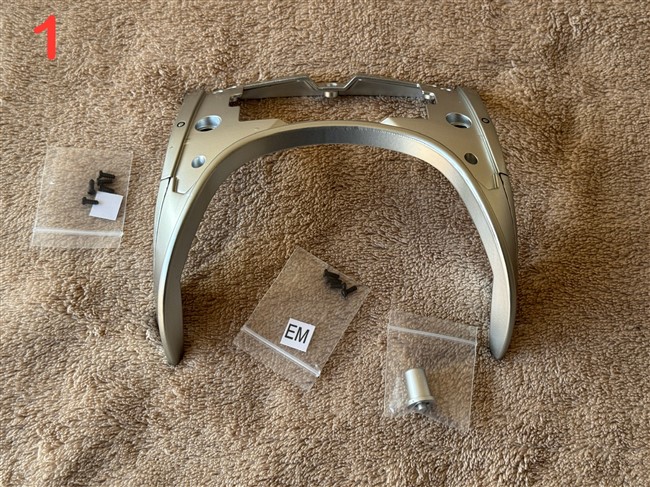

Picture 1 shows the parts for this issue.
The Back Assembly

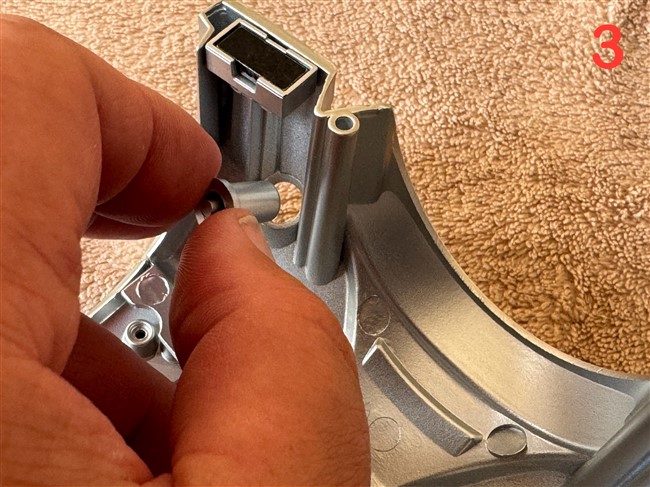

Connect the back of the shoulders (90A) to the back of the armour (91A), using 3 x EM screws, picture 2.

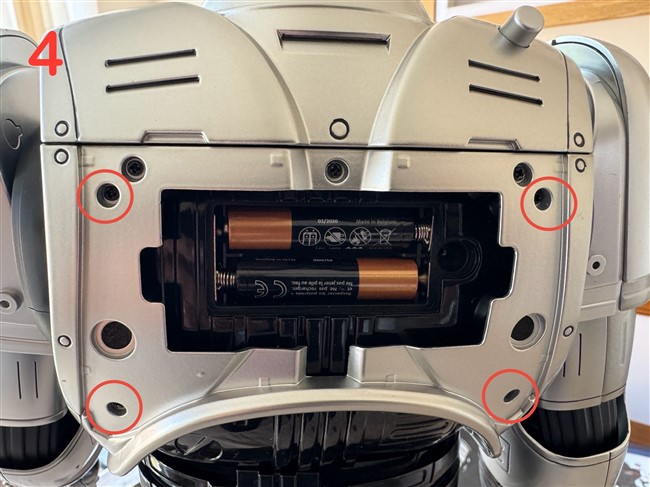

Insert the switch button (91B), picture 3. Attach the assembly onto the back of the model, securing it in place using 4 x EP screws as shown circled in picture 4.
Note: The magazine shows the two bottom screws to be located in the wrong holes. For the correct positioning, refer to the last picture.
That completes the assembly for this issue.
