STAGE 15:
Fuel pump.

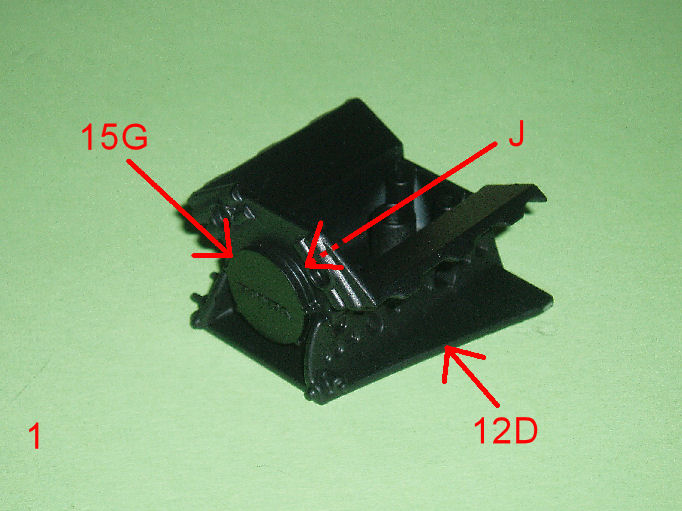

Pic 1: Retrieve the lower engine part 12D and fit the front cap 15G as shown.
Fix from the inside with 1 x ‘J’ screw.
Pic 2: Fit the front panel 15F to the assembly and fix with 2 x ‘I’ screws.

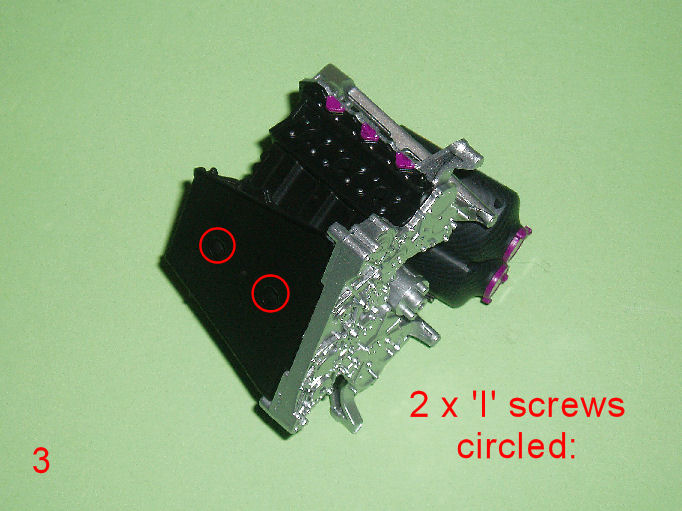

Pic 3: Retrieve the main engine assembly and fit the lower block/front panel as shown and fix from underneath with 2 x ‘I’ screws.
Pic 4: Press-fit the two pipes 15B and 15C into the fuel pump 15A as shown.
Make sure you fit them in the correct locations.

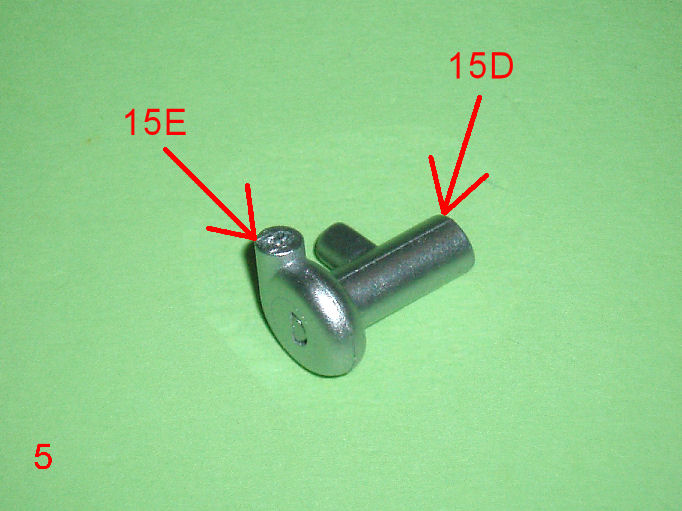

Pic 5: Assemble the two fuel pipe parts 15D and 15E as shown.
They will only fit one way.

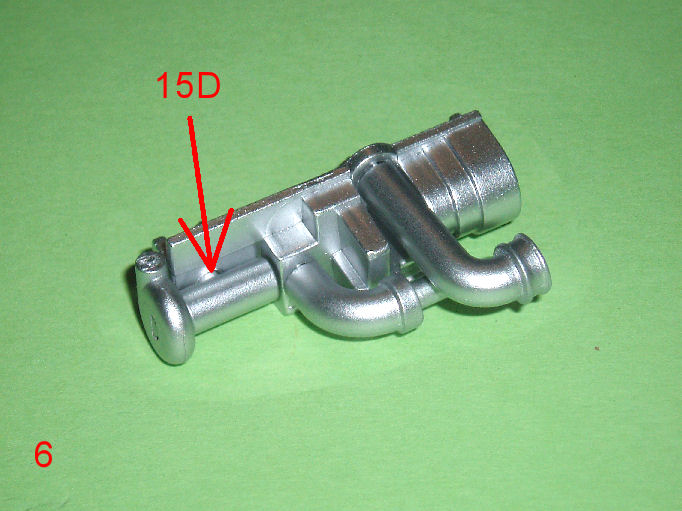

Pic 6: Press-fit the parts into the fuel pump
.
Pic 7: Press-fit the assembly into the lower side of the engine as shown.
Store the engine safely for now.
