STAGE 53:
Neck and tail Triceratops Dinozord.
Pic 1: Retrieve the unused parts 52.2 and 52.5 from the previous stage.
Pic 2: Fit the parts together as shown.
Pic 3: Retrieve part 52.4 and fit it in place.
Secure with 2 x PB screws.
Pic 4: Fit the tail pivot cover 52.7 to the assembly as shown and slide the connecting pin 52.9 into the holes.
Pic 5: Retrieve the body part 52.8 and slide the assembly into place inside.
Note how the parts fit together in the circle highlight.
Pic 6: Store all parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,948 Points: 14,990 Location: ipswich
|
STAGE 54:
Left front undercarriage 1 Triceratops Dinozord.
Pic 1: Retrieve the head of the Triceratops and locate the connecting body 54.1.
The post indicated on 54.1 will fit into the hole in 51.5.
Pic 2: Shows the parts fitted.
Pic 3: Retrieve the lower body 52.8 and fit it in place as shown.
Pic 4: From underneath, fix the parts using 2 x PB screws.
Pic 5: Retrieve the cover 53.1 and locate the undercarriage part 54.2.
Pic 6: Fit the parts together and fix with 1 x PWM screw.
Pic 7: On the outside, fit the panel 54.8 in place and fix from behind with 2 x PWB screws.
Pic 8: Press-fit the two panels 54.9 in place as shown.
Pic 9: Store the unused parts and spare PB screws for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 4,948 Points: 14,990 Location: ipswich
|
STAGE 55:
Left front undercarriage 2 Triceratops Dinozord.
Pic 1: Retrieve the wheel carriage parts 54.3, 54.4 and 54.5 from the previous stage.
Pic 2: Fit part 54.4 into 54.3 as shown.
Pic 3: Fit part 54.5 in place and fix from the other side with 2 x PB screws.

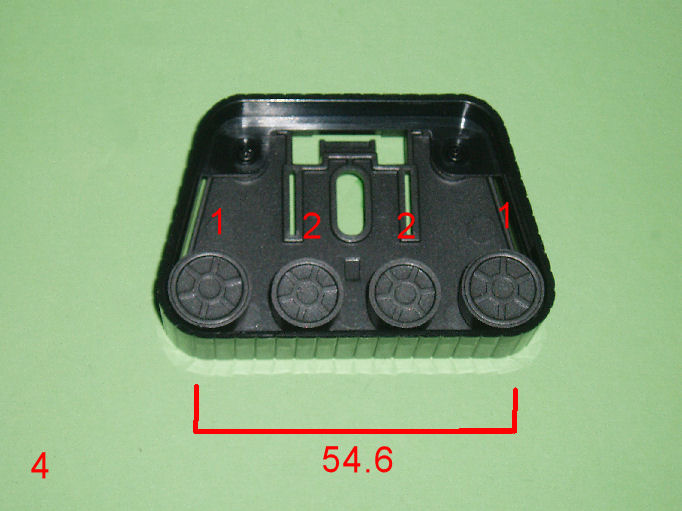

Pic 4: Press-fit the wheels 54.6 into the assembly in the sizes as shown.
The part sizes are marked on the sprue.
Pic 5: Retrieve the main part 54.2 and fit the wheel assembly in place.

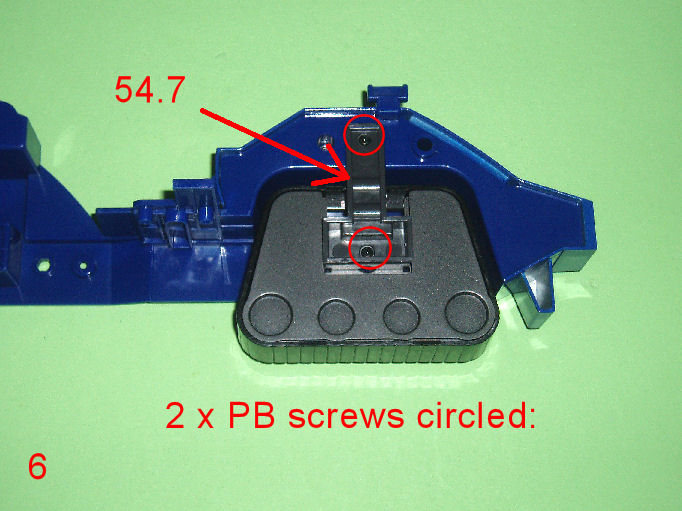

Pic 6: Fix the retaining bracket 54.7 in place using 2 x PB screws.
Pic 7: Locate the outer cover 55.1.
Pic 8: Fit it to the main assembly as shown.

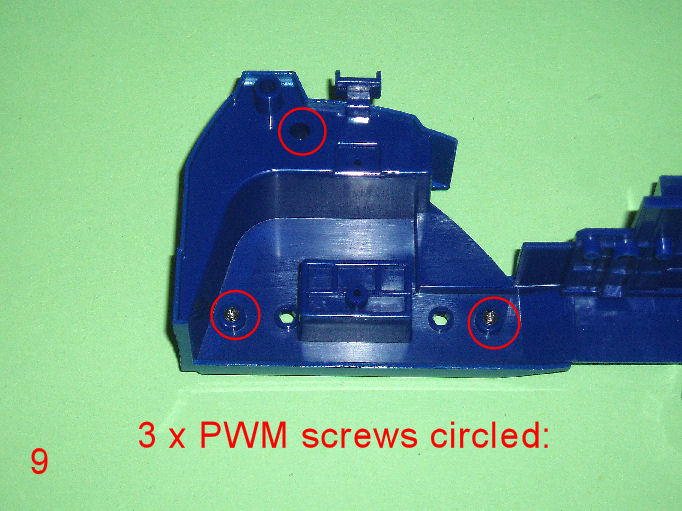

Pic 9: Fix the parts together using 3 x PWM screws on the inside.
Store the assembly safely. roymattblack attached the following image(s):
|
|
|
|
