Issue 91
Picture 1 shows the parts for this issue.
The Back Assembly
Connect the back of the shoulders (90A) to the back of the armour (91A), using 3 x EM screws, picture 2.
Insert the switch button (91B), picture 3. Attach the assembly onto the back of the model, securing it in place using 4 x EP screws as shown circled in picture 4.
Note: The magazine shows the two bottom screws to be located in the wrong holes. For the correct positioning, refer to the last picture.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,836 Points: 20,825 Location: Northamptonshire, England
|
Issue 92
Picture 1 shows the parts for this issue.
The Back Assembly
Insert the screw (92B) into the battery compartment cover (92A) from the outside, then place the spring (92C) over the screw, picture 2.
Now place the washer (92D) over the screw, picture 3. Note: You may need to screw the washer in place.
Attach the battery compartment cover onto the battery compartment and tighten up the screw to hold it in place, picture 4.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,836 Points: 20,825 Location: Northamptonshire, England
|
Issue 93

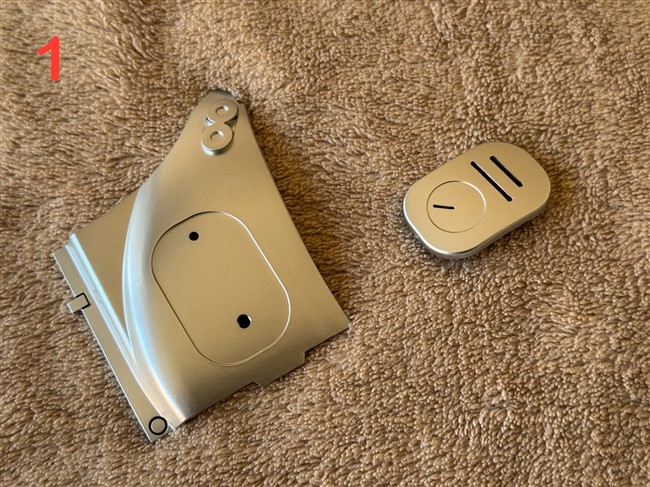

Picture 1 shows the parts for this issue.
The Back Assembly

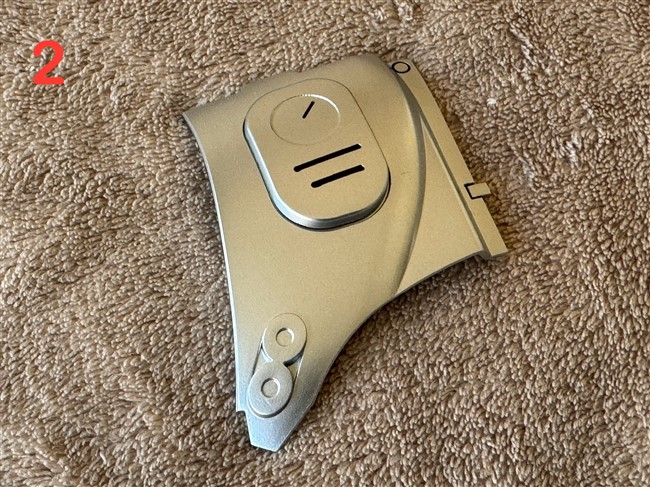

Place the left shoulder blade detail (93B) over the shoulder blade (93A) making sure the pins fit the holes, picture 2.
Place the left shoulder blade to the back armour as shown in picture 3.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,836 Points: 20,825 Location: Northamptonshire, England
|
Issue 94
The Back Assembly Continued
Connect the right shoulder blade (94A) to the back of the armour, picture 1.
That completes the assembly for this issue.
