STAGE 21:

Steering column.

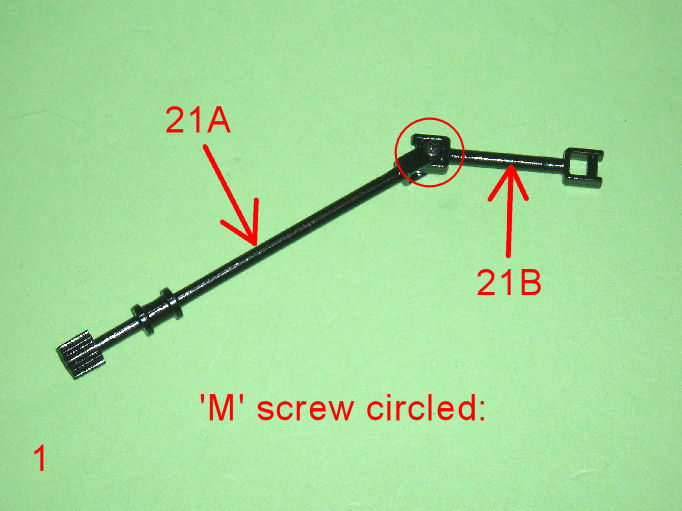

Pic 1: Fit the two steering column parts 21A and 21B together as shown and fix them using 1 x ‘M’ screw.

Pic 2: This is to identify the three different brackets.

Pic 3: Retrieve the car nose assembly and fit bracket 21D in place as shown.
It will only fit one way.

Pic 4: Lay the column 21A in place with the double-collar section over the bracket.

Pic 5: Fit bracket 21C over the top, trapping the column in place.
Fix using 2 x ‘A’ screws.

Pic 6: Fit bracket 21E in place at the other end of the steering column as shown and secure with 2 x ‘A’ screws.

Store the assembly safely.

roymattblack attached the following image(s):
roymattblack
#2 Posted : 12 October 2025 12:00:07

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 5,057
Points: 15,317
Location: ipswich

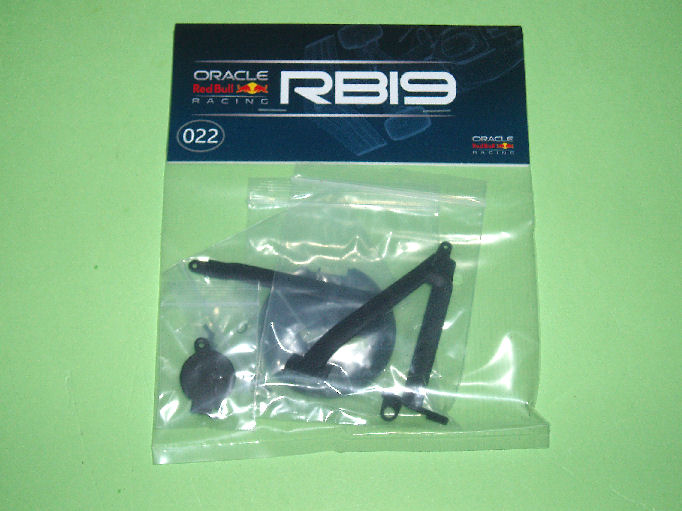

STAGE 22:

Front right suspension.

Pic 1: Fit the suspension arm 22B through the slot in the back plate knuckle 22D as shown.
The red line indicates the correct angle each end of the arm should be.
Do not fit the arm upside-down.

Pic 2: Fit the retaining plate 22C to the end of the arm and fix with 1 x ‘C’ screw.

Pic 3: Fit the double arm 22A through the slot as shown and fix to the other tabs on the retaining plate with 1 x ‘C’ screw.

Pic 4: Fix the retaining plate in place using 2 x ‘A’ screws.

Store the assembly safely for now.
roymattblack attached the following image(s):
roymattblack
#3 Posted : 13 October 2025 10:33:15

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 5,057
Points: 15,317
Location: ipswich
STAGE 23A:

Front right suspension 2.

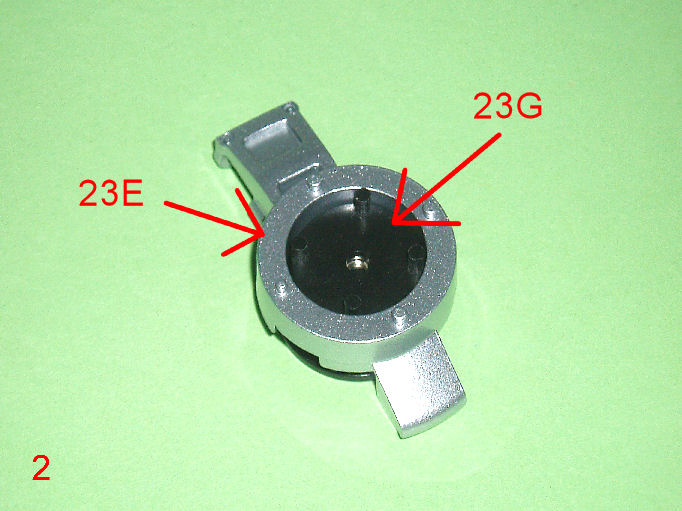

Pic 1: Locate the hub parts 23E and 23G.

Pic 2: Fit the parts together as shown.

Pic 3: Retrieve the assembly from the previous stage and fit the hub parts in place as shown.

Pic 4: Fix the parts together from the other side with 2 x ‘B’ screws.
roymattblack attached the following image(s):
roymattblack
#4 Posted : 13 October 2025 10:35:15

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 5,057
Points: 15,317
Location: ipswich
STAGE 23B:

Pic 5: Locate the brake disk and outer detail, 23B and 23C.

Pic 6: Fit the hook end of the detail strip into the slot in the disc.

Pic 7: Wrap the strip around the disc and fit the other end into the slot in the disc.
Fold the tab over inside the disc.

Pic 8: Locate the other disc parts 23A and 23C.
23C will go on top of 23A.

Pic 9: Peel the backing paper from the rear of 23C and stick the part in place on the front of 23A.

Pic 10: Press-fit the assembly onto the main disc, 23B.

Pic 11: Store all parts safely for now.

roymattblack attached the following image(s):
