Issue 21
Picture 1 shows the parts for this issue.

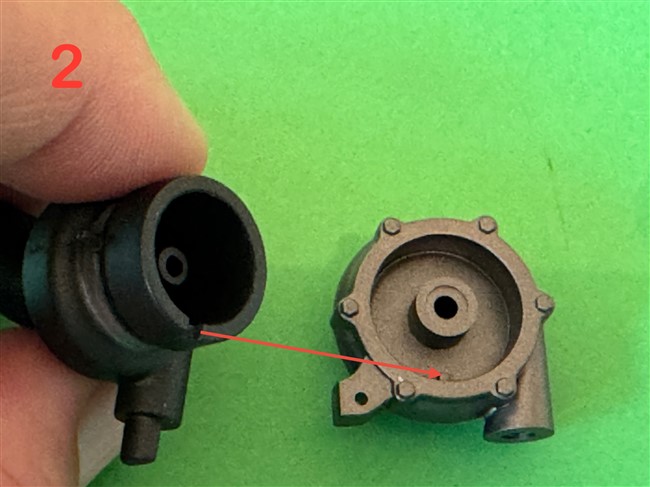

Assemble the right compressor housing (21D) into the right turbo housing (21A), picture 2. Using a “C” screw, secure the two parts together, picture 3.

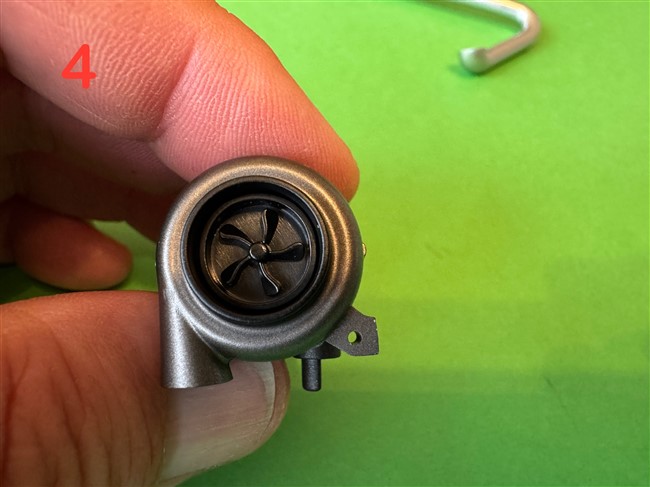

Press fit the turbo (21C) into the housing, picture 4.

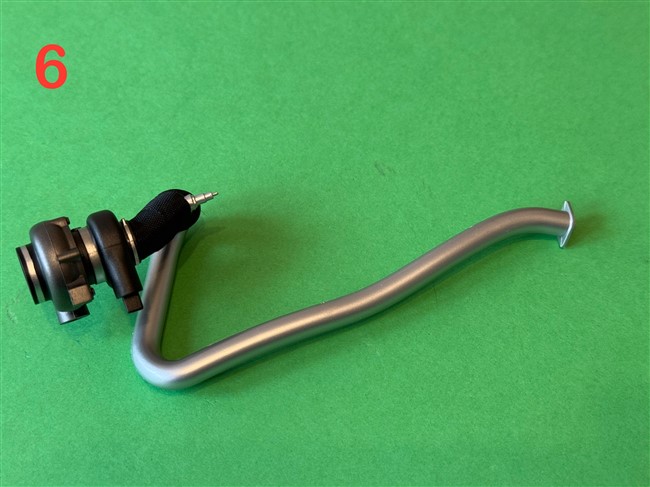

Finally, fit the pin on the end of the right turbo housing into the hole in the bent end of the right exhaust pipe (21B).
That completes the assembly for this issue.
