STAGE 45:
Left tank top.

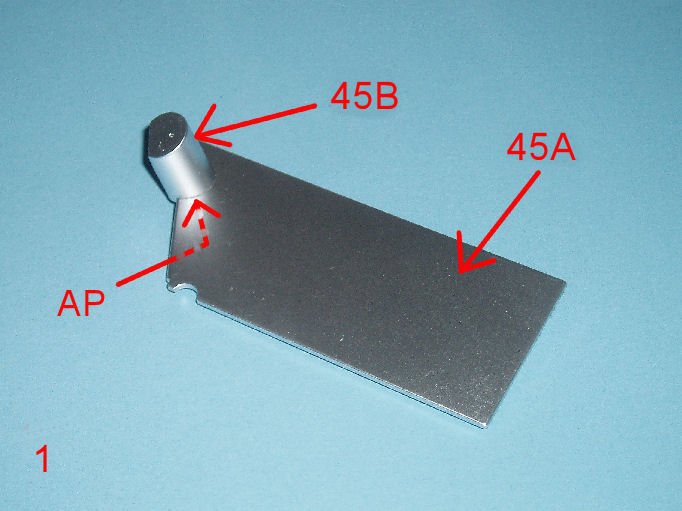

Pic 1: Fit the tank top parts 45A and 45B together as shown and fix from underneath using 1 x AP screw.
The parts will only fit one way.
Pic 2: Retrieve the front frame assembly and make sure the battery box wires run through the grooves in the box as highlighted.
Pic 3: Fit the tank top in place as shown.
Pic 4: Fix from underneath using 3 x AP screws.
Pic 5: Store the assembly and unused wiring for now.
