Issue 21
Picture 1 shows the parts for this issue.
Assemble the right compressor housing (21D) into the right turbo housing (21A), picture 2. Using a “C” screw, secure the two parts together, picture 3.
Press fit the turbo (21C) into the housing, picture 4.
Finally, fit the pin on the end of the right turbo housing into the hole in the bent end of the right exhaust pipe (21B).
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,884 Points: 20,969 Location: Northamptonshire, England
|
Issue 22
Picture 1 shows the parts for this issue.
Assemble the right compressor housing (22D) into the right turbo housing (22A), picture 2. Using a “C” screw, secure the two parts together, picture 3.
Press fit the turbo (22C) into the housing, picture 4.
Finally, fit the pin on the end of the right turbo housing into the hole in the bent end of the right exhaust pipe (22B), picture 5.
Fit the radiator assembly onto the intake duct, inserting the pin on the duct, picture 6.

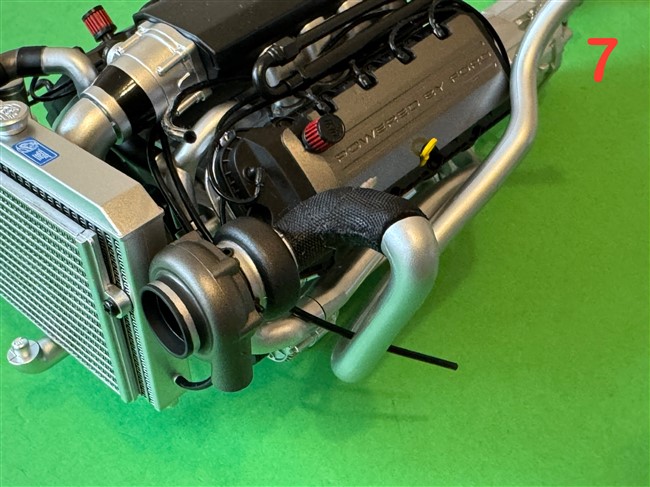

Insert the pin on the bottom of the left turbo housing into the hole in the end of the left exhaust manifold. Align the hole in the left compressor housing with the hole in the side flange of the radiator, picture 7. Secure in place using a “D” type screw, picture 8.
Now do the same with the right turbo housing, pictures 9 and 10.
Picture 11 show the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,884 Points: 20,969 Location: Northamptonshire, England
|
Issue 23
Picture 1 shows the parts for this issue.
Assemble the turbocharger pressure pipe (23D) by first passing it under the intake throttle body and insert each end into the turbo housings, picture 2.
Fit the pin on the end of the right pipe from the intercooler of the turbocharger (23B) into the bottom of the right compressor housing, picture 3.
Now do the same with the left pipe (23C), picture 4. Part (23A) the intercooler will be assembly at a later stage.
Picture 5 shows the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,884 Points: 20,969 Location: Northamptonshire, England
|
Issue 24
Picture 1 shows the parts for this issue.
Fit the glove box compartment base (24B) onto the front side of the passenger compartment floor (24A) using 2 x “C” type screws, picture 2.
Picture 3 shows the complete assembly for this issue. Markwarren attached the following image(s): Regards
