STAGE 39:
Reinforcing bars.
Pic 1: Retrieve the front frame assembly and carefully place it upside down.
Fit the reinforcing bar 39A (marked ‘A’ at one end) in place as shown and fix with 2 x AM screws.
Pic 2: Fit the reinforcing bar 39B (marked ‘B’ at one end) in place as shown and fix with 2 x AM screws.

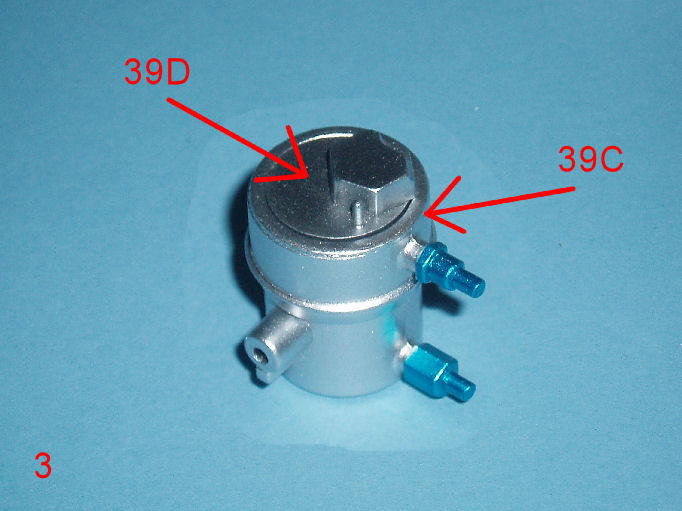

Pic 3: Press-fit the coolant pot parts 39C and 39D together. They will only fit one way.
Pic 4: Fit the assembly to the right side of the frame 22B and fix from the outside with 1 x EP screw.
Pic 5: Fit the clear tube 39E to the small pin on the top of the coolant tank.

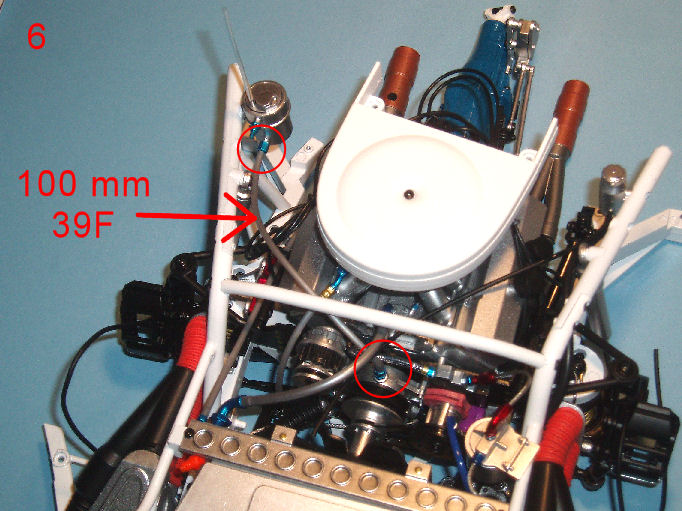

Pic 6: Locate the long tube 39F and cut it off a 100mm length.
Fit it to the lower pin on the coolant tank, and the other end to the top of the water pump.
Pic 7: Locate the tube 33J fitted previously to the top corner of the radiator.
Connect the other end to the upper pin on the coolant tank.
Pic 8: Carefully place the assembly upside down.
Cut a 120mm piece of hose from 39F and fit one end on the empty pin on the lower fuel pump as shown.
The other end remains free for now.
Pic 9: Fit the two steel hoses 39G to the lower pins on the rear engine housing as shown.
They will only fit one way.
