STAGE 45:
Left tank top.
Pic 1: Fit the tank top parts 45A and 45B together as shown and fix from underneath using 1 x AP screw.
The parts will only fit one way.
Pic 2: Retrieve the front frame assembly and make sure the battery box wires run through the grooves in the box as highlighted.
Pic 3: Fit the tank top in place as shown.
Pic 4: Fix from underneath using 3 x AP screws.
Pic 5: Store the assembly and unused wiring for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,081 Points: 15,389 Location: ipswich
|
STAGE 46:
Left tank frame.
Pic 1: Retrieve the assembly from the previous stage and fit the upper frame 46A in place as shown.
The ‘legs’ will locate where indicated in red.

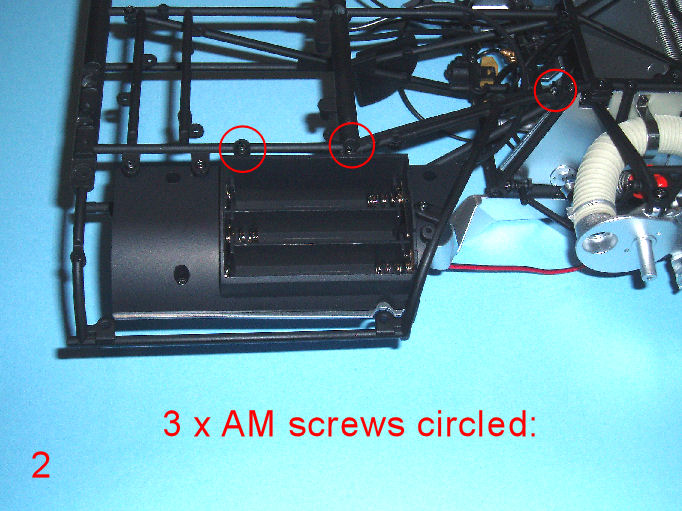

Pic 2: Fix the frame 46A in place from underneath using 3 x AM screws.
Pic 3: Fit the frame cross-bar 46B in place and fix with 1 x AM screw at each end.
Pic 4: Store the assembly and unused wiring safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,081 Points: 15,389 Location: ipswich
|
STAGE 47:
Right tank top.

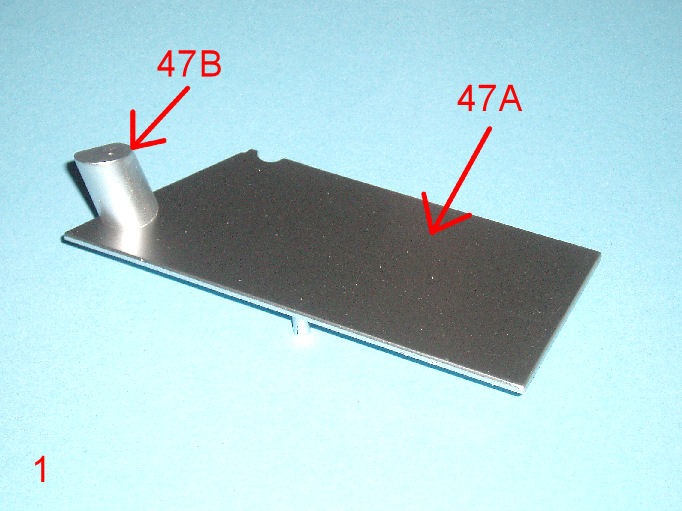

Pic 1: Fit the tank top parts 47A and 47B together as shown.
The parts will only fit one way.

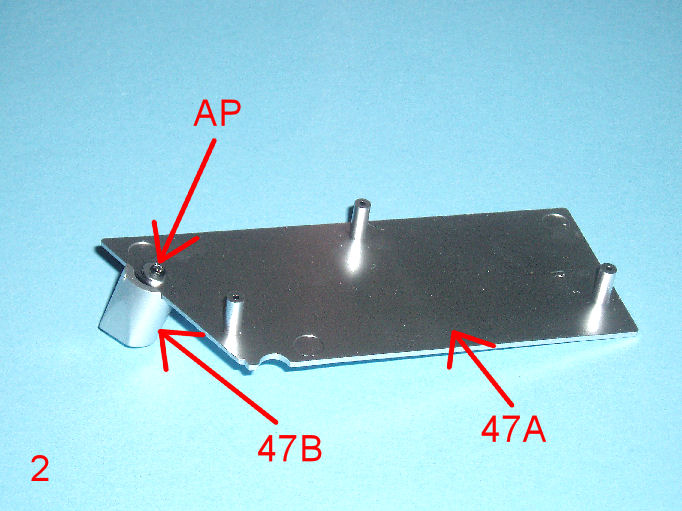

Pic 2: Fix the parts together from underneath with 1 x AP screw.
Pic 3: Store the assembly and unused wiring safely.
roymattblack attached the following image(s):
|
|
|
|
