Issue 27
The Abdominal Structure
Picture 1 shows the contents of this issue.
Retrieve the chest assembly from the previous issue, Arrange the left abdominal structure as shown in pictures 2 and 3.

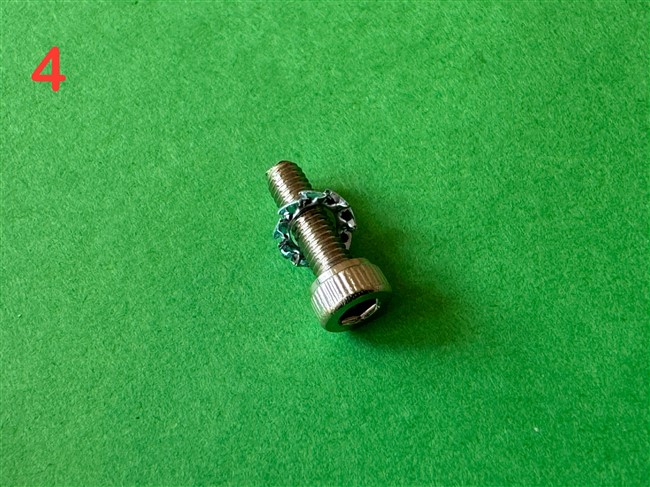

Prepare two type H bolts by placing a serrated washer on them, picture 4.
Turn the assembly over and place a M3 nut into the recess as shown in picture 5. Holding it into position, turn the assembly back over and insert the bolt into the nut, tightening it using the allen key supplied with this kit, picture 6. Place the other bolt and nut as shown in picture 7.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,912 Points: 21,053 Location: Northamptonshire, England
|
Issue 28
The Abdominal Structure
Picture 1 shows the contents of this issue.
Before assembling the right abdominal structure, place an M3 nut into the recess at the back of the part, as shown in picture 2. DO NOT proceed with the assembly without placing this nut first.

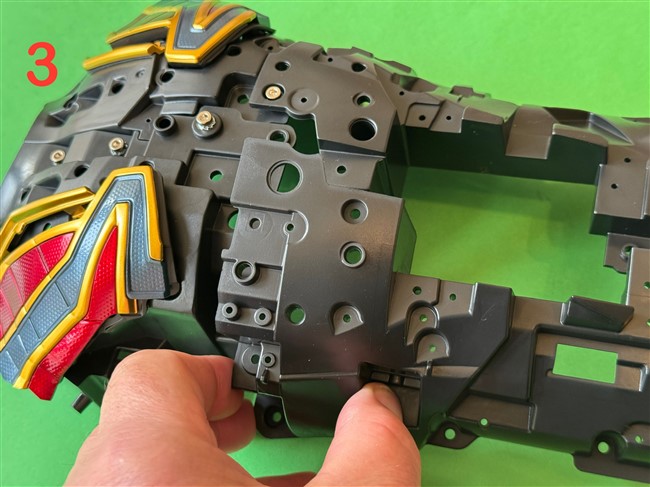

Retrieve the chest assembly from the previous issue, Arrange the right abdominal structure as shown in picture 3.
Prepare the type H bolts by placing a serrated washer on them, picture 4.

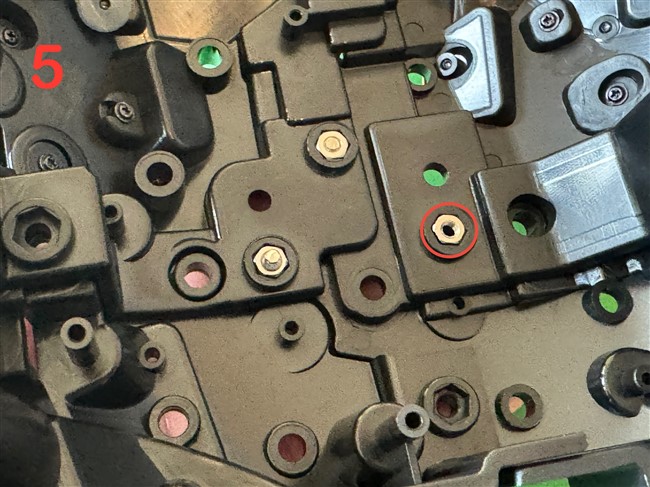

Turn the assembly over and place a M3 nut into the recess as shown in picture 5. Holding it into position, turn the assembly back over and insert the bolt into the nut, tightening it using the allen key supplied with this kit, picture 6. Place the other bolts and nut as shown in picture 7.
Finally, place the last H bolt and nut as shown in picture 8.

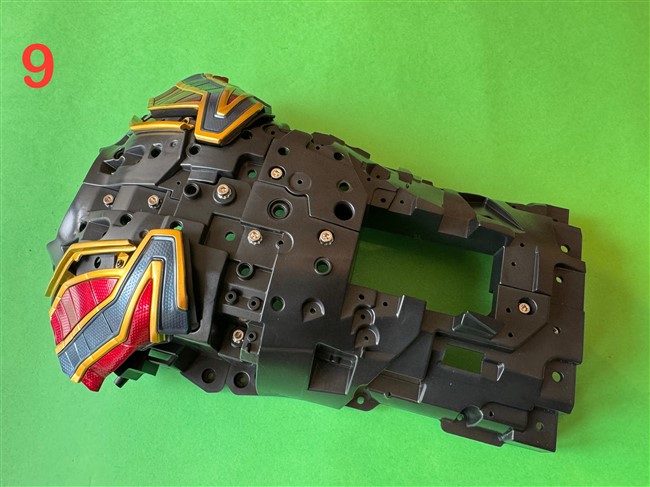

Picture 9 shows the completed assembly for this issue.
