Issue 87

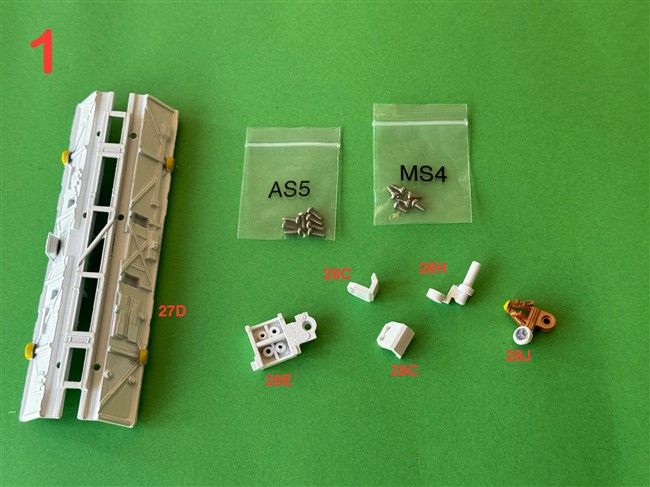

Picture 1 shows the contents of this issue.

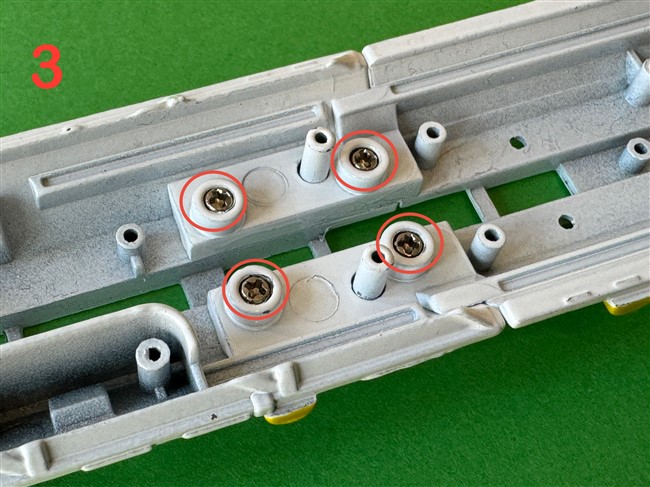

Fix piece 27D to the previous assembly using 4 x MS4 screws, pictures 2 and 3.

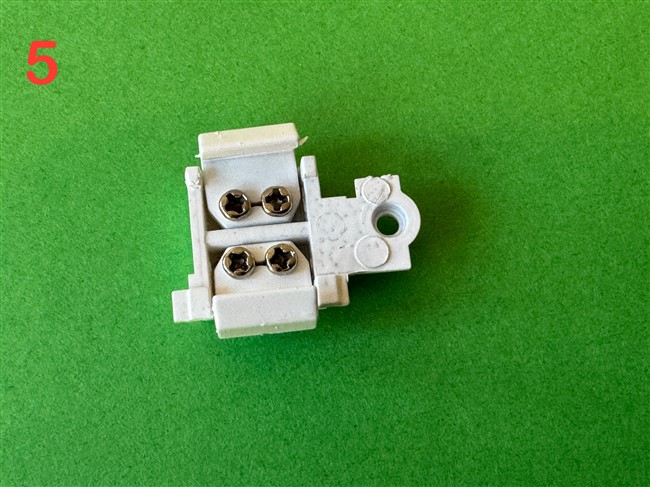

Fix both the 28C pieces to 28E using the AS5 screws as you did in the previous stage, pictures 4 and 5.
Take the assembly and attach it to the assembly from issue 85 using an AS5 screws, pictures 6 and 7.

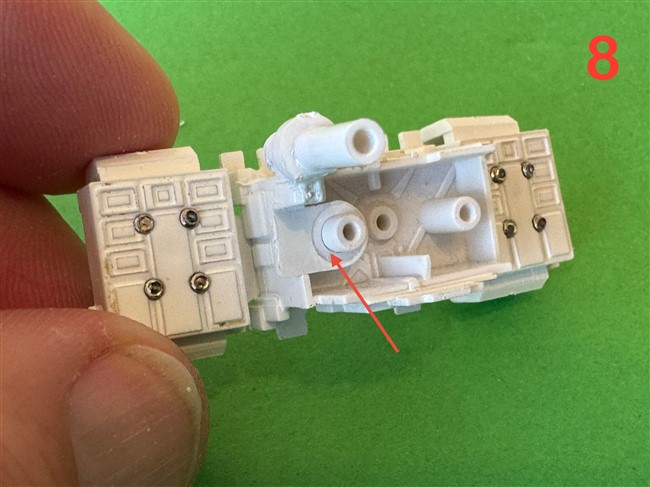

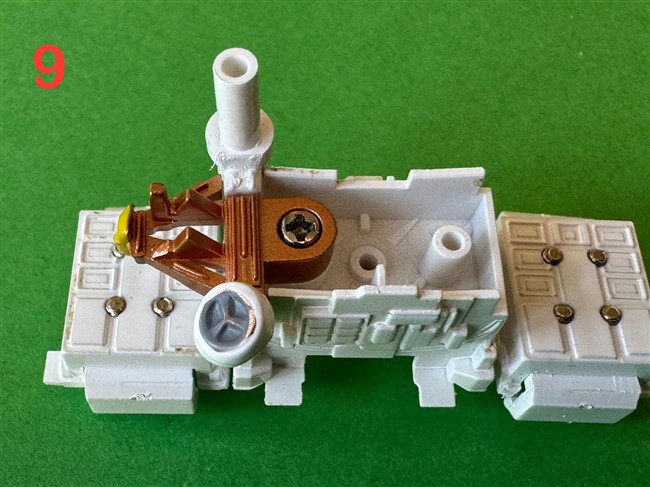

Push fit piece 28H into place as shown in picture 8, followed by piece 28J securing them both in place using an AS5 screw, picture 9.

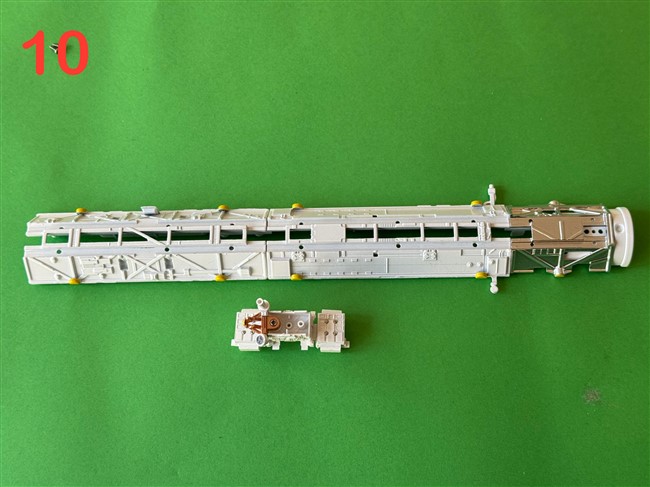

Picture 10 shows the final assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,928 Points: 21,091 Location: Northamptonshire, England
|
Issue 88

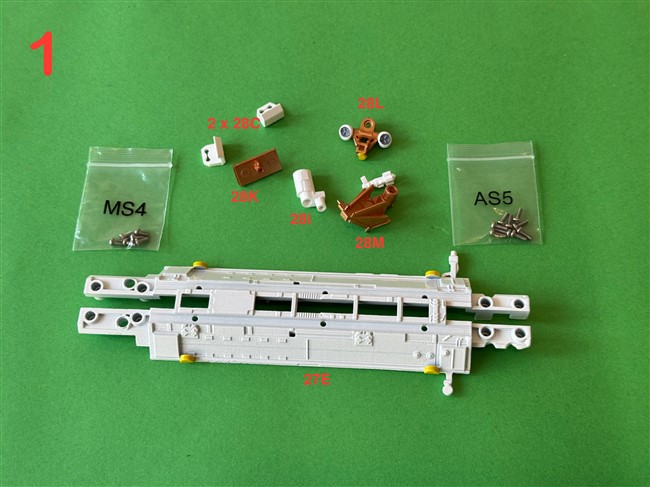

Picture 1 shows the contents of this issue.
Fix piece 27E to the assembly of the previous stage using 4 x MS4 screws, picture 2 and 3.

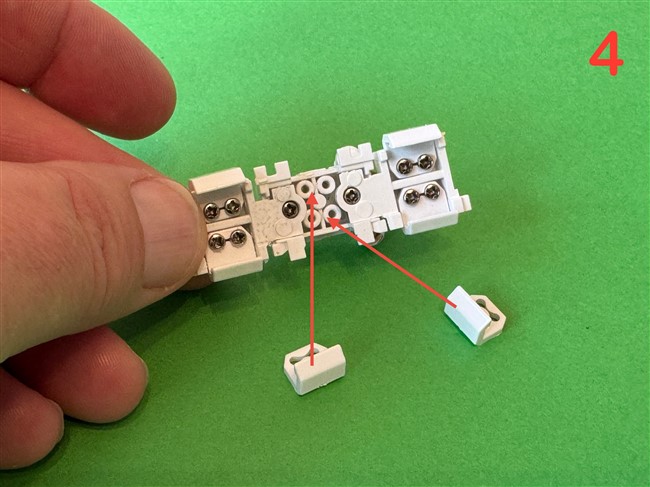

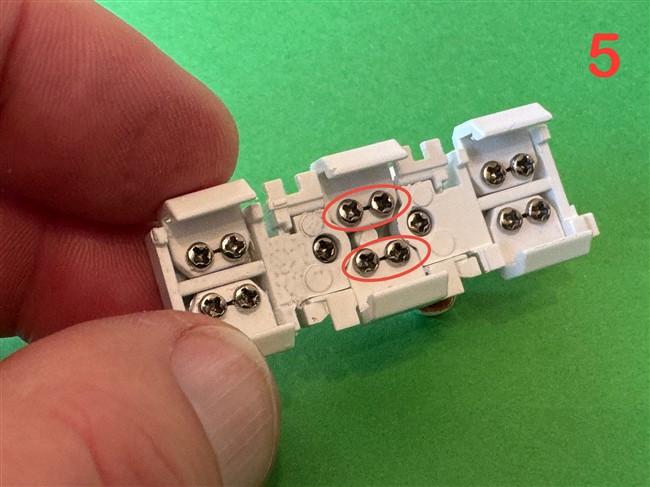

Attach both 28C parts as illustrated in picture 4, securing them in place using 4 x AS5 screws, picture 5.
Attach piece 28M using an AS5 screw, picture 6, then attach piece 28L next to it using another AS5 screw, picture 7.
Fix piece 28i in place securing it with an AS5 screw, picture 8.
Push fit part 28K as shown in pictures 9 and 10, followed by part 28P, picture 11.
Picture 12 shows the final assembly for this issue.
