STAGE 105:
Rear left brake and wheel fitting.
Pic 1: Fit the caliper part 105E to the left rear hub and fix with 2 x AP screws.
Pic 2: Locate the disc parts 105F and 105G.
These parts will fit together as indicated.
Pic 3: Fit the parts together and fix with 2 x ZP screws.
Pic 4: Fit the disc to the hub as shown.
Pic 5: Press-fit the caliper front 105D in place.
Pic 6: Retrieve the wheel from stage 104 and the bolts 105B.
Pic 7: You will find it far easier to fit the centre bolts while the wheel is off the car, as opposed to the printed instructions which suggest fitting the wheel first.
Pic 8: Fit the wheel to the car as shown.
It will only fit properly one way as there is a keyway on the disc and the rear of the wheel which must be in line.
Fit the centre washer 105C and then fix the wheel with 1 x DM screw.

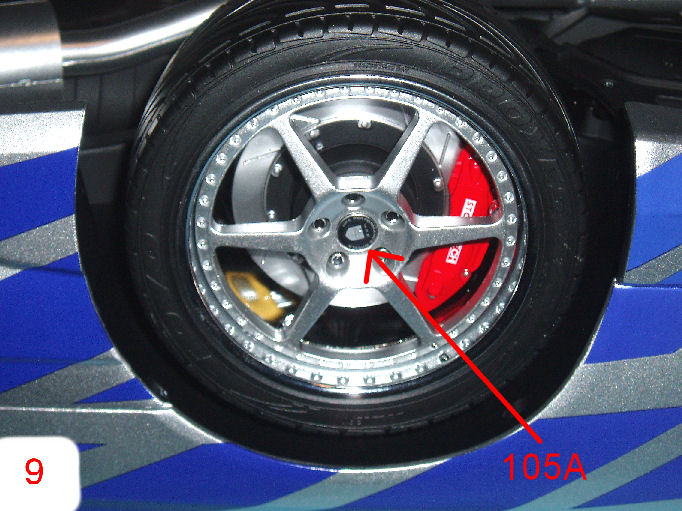

Pic 9: Press-fit the centre cap 105A in place.
Store the model safely for now.roymattblack attached the following image(s):
|
|
|
|
