STAGE 105:
Rear left brake and wheel fitting.
Pic 1: Fit the caliper part 105E to the left rear hub and fix with 2 x AP screws.
Pic 2: Locate the disc parts 105F and 105G.
These parts will fit together as indicated.
Pic 3: Fit the parts together and fix with 2 x ZP screws.
Pic 4: Fit the disc to the hub as shown.
Pic 5: Press-fit the caliper front 105D in place.
Pic 6: Retrieve the wheel from stage 104 and the bolts 105B.
Pic 7: You will find it far easier to fit the centre bolts while the wheel is off the car, as opposed to the printed instructions which suggest fitting the wheel first.
Pic 8: Fit the wheel to the car as shown.
It will only fit properly one way as there is a keyway on the disc and the rear of the wheel which must be in line.
Fit the centre washer 105C and then fix the wheel with 1 x DM screw.
Pic 9: Press-fit the centre cap 105A in place.
Store the model safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,117 Points: 15,500 Location: ipswich
|
STAGE 106A:
Rear and front right wheels.
Pic 1: Locate the tyre and inner wheel 106A and 106C.
Pic 2: Fit the rim inside the tyre as shown.
Pic 3: Fit the rim 106D in place making sure the screw tabs all line up.
Pic 4: Fit the outer rim 106B in place as shown.
Pic 5: Fix the parts together from the inside with 3 x ABM screws.
Pic 6: Retrieve the brake caliper from stage 14 and carefully separate the parts.
Pic 7: Fit the caliper part 14B to the left front hub and fix with 2 x AP screws.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,117 Points: 15,500 Location: ipswich
|
STAGE 105B:
Pic 8: Retrieve the disc parts 14C/D from stage 14 and fit to the hub as shown.
Pic 9: Press-fit the caliper front 14A in place.

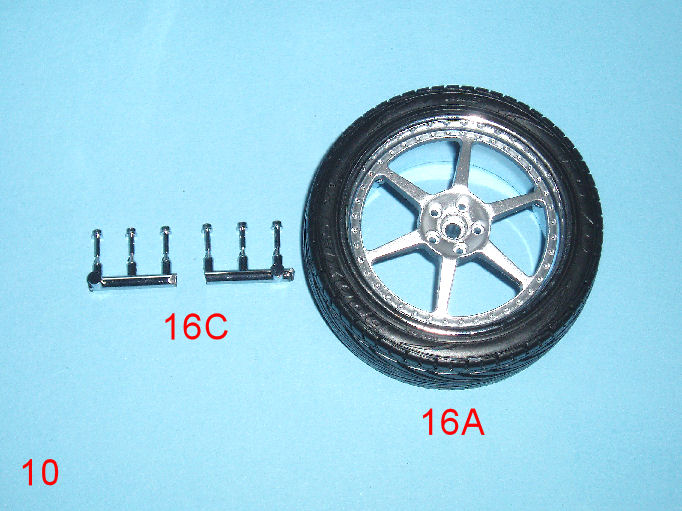

Pic 10: Retrieve the wheel from stage 16 and the bolts 16C.
Pic 11: You will find it far easier to fit the centre bolts while the wheel is off the car, as opposed to the printed instructions which suggest fitting the wheel first.
Pic 12: Fit the wheel to the car as shown.
It will only fit properly one way as there is a keyway on the disc and the rear of the wheel which must be in line.
Fit the centre washer 106E and then fix the wheel with 1 x DM screw.
Pic 13: Press-fit the centre cap 16B in place.
Pic 14: Store the model and wheel safely for now.
roymattblack attached the following image(s):
|
|
|
|
