Issue 93
Picture 1 shows the contents of this issue.
Place part 31i into part 31F and secure using an AS5 screw, pictures 2 and 3. Place part 31G on the assembly, picture 4.
Fix piece 31E onto the assembly along with part 31H and secure it in place using 2 x AS5 screws, pictures 5 and 6.
Attach part 31K to the side of the assembly.
Finally, attach this assembly to the main frame assembly as shown in picture 7 using an MS4 screw.
Pictures 8 shows the final assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,940 Points: 21,127 Location: Northamptonshire, England
|
Issue 94
Picture 1 shows the contents of this issue.
Push fit part 31M onto piece 31L, picture 2. Place the other part 31N onto 31L and secure the assembly using an AS5 screw, picture 3.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,940 Points: 21,127 Location: Northamptonshire, England
|
Issue 95
Picture 1 shows the contents of this issue.
Attach part 31Q to the assembly from the previous issue and secure it in place using 4 x AS5 screws, pictures 2 and 3.
Push fit part 34A as shown in picture 4.
Finally, attach base 12 to the base as illustrated in pictures 5 and 6.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,940 Points: 21,127 Location: Northamptonshire, England
|
Issue 96
Picture 1 shows the contents of this issue.
Attach the two parts 31Q to the piece 31P and secure them both in place with an AS5 screw, pictures 2, 3 and 4.
Do the same with part 31S, pictures 5 and 6.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,940 Points: 21,127 Location: Northamptonshire, England
|
Issue 97
Picture 1 shows the contents of this issue.
Take the parts 31W, 31T and the assembly from the last issue, picture 2 and attach them as shown in pictures 3 and 4 using an AS5 screw.
Next, attach part 31V using an AS5 screw, pictures 5 and 6. Place piece 31U securing it with an AS5 screw, pictures 7 and 8.

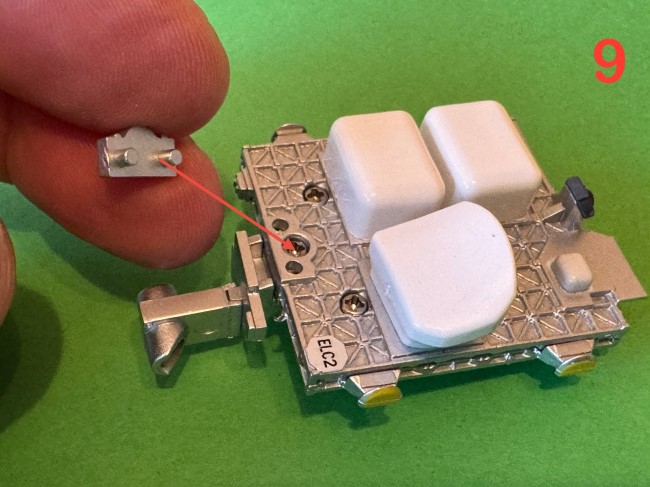

Attach the screw cover 31Z, pictures 9 and 10.
Attach both the parts 31X and 31Y by push fitting them in place, picture 11.
Attach the assembly to the main frame assembly by using an MS4 screw, picture 12.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,940 Points: 21,127 Location: Northamptonshire, England
|
Issue 98
Picture 1 shows the contents of this issue.
Attach parts 32E, 32F and 32G to part 32C using an AS5 screw for each one, pictures 2, 3 and 4.
Keep this part safe until next time.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
