STAGE 3:
Reactor exhaust.
Pic 1: Press-fit the 6 x reactor tube shafts 3-9 into the base plate 3-1 as shown.
The parts will only fit one way.

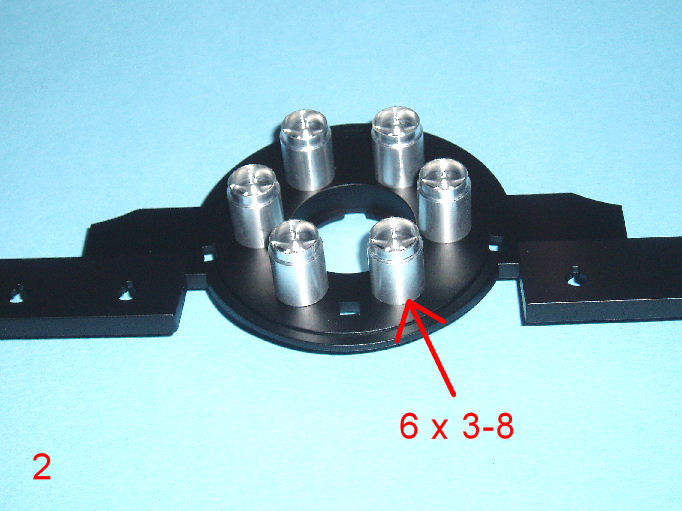

Pic 2: Press-fit the 6 x reactor tubes 3-8 in place over the shafts.
Pic 3: Fit the vent centre and base 3-6 and 3-7 together and fix from inside with 1 x ‘B’ screw.
Pic 4: Press-fit the assembly in place on the base.
It will only fit one way.

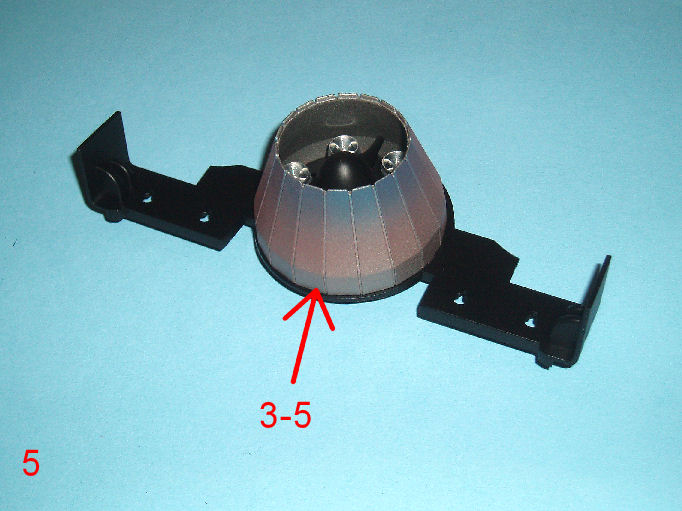

Pic 5: Press-fit the reactor vent 3-5 onto the base plate.
It will only fit one way.
Pic 6: Fit the 4 x exhaust pipes 3-4 onto the base plate as shown and fix from behind with 1 x ‘B’ screw in each.
Pic 7: Press-fit the 4 x exhaust shafts 3-3 into the tubes as shown.
Make sure they are all aligned as shown.
Pic 8: Fit the 4 x exhaust collars 3-2 in place as shown.
They will only fit one way.
Store the assembly safely for now.roymattblack attached the following image(s):
|
|
|
|
