STAGE 45:
Battery box.

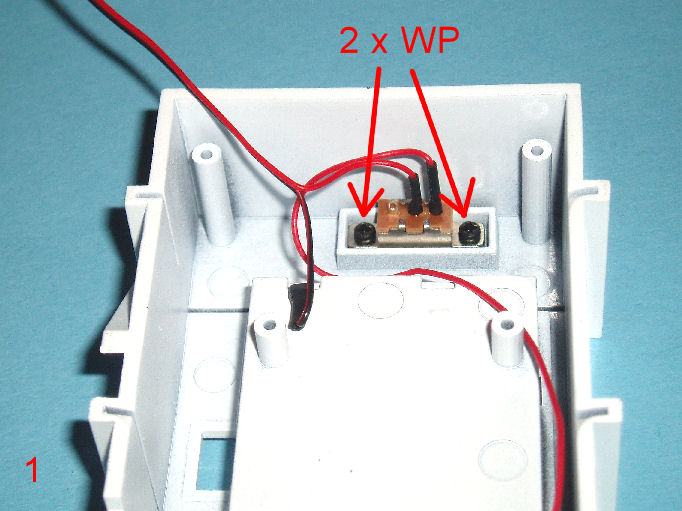

Pic 1: Locate the battery box 45A and fit the switch in place inside.
Note that the two red wire connections are on the right.
Fix the switch with 2 x WP screws.
Pic 2: From the other side, the switch should be in the ON position.

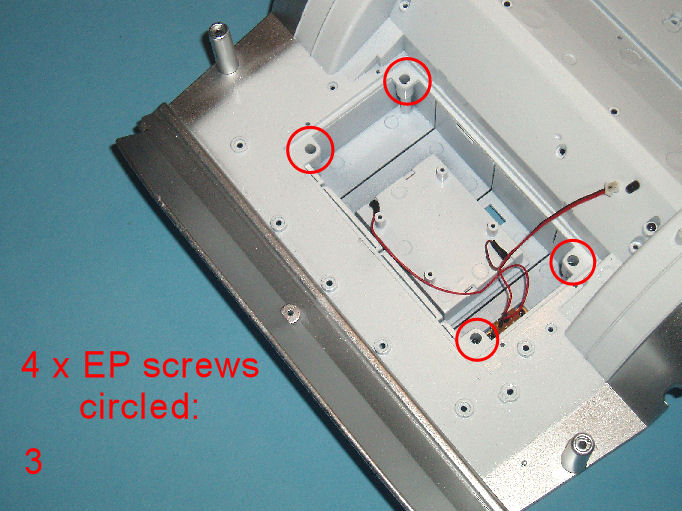

Pic 3: Retrieve the main assembly and fit the battery box under the opening at the rear. The switch should be on the right as shown.
Fix with 4 x EP screws.

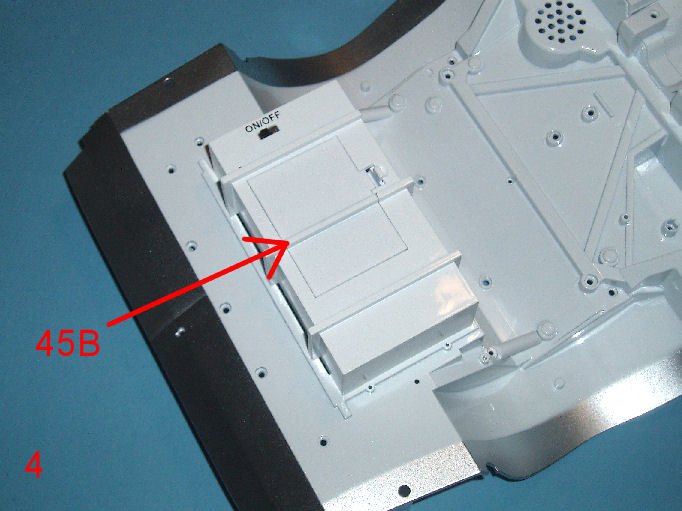

Pic 4: From the other side, fit the cover 45B in place.
Pic 5: Fit the rear cross member 45C in place as shown.
Pic 6: From the other side, fix with 2 x EP screws.
Store the model safely.roymattblack attached the following image(s):
|
|
|
|
