STAGE 51:
Function test and frame reinforcement.
Pic 1: MAKE SURE YOU CONNECT THE BATTERY BOX PLUG ‘B’ TO THE SOCKET ‘B’ ON THE OTHER SIDE OF THE CAR FRAME.
Put batteries in the car and remote control and test the different functions.
The printed instructions also give a clear guide to how things should work.
After testing remove all batteries.
Pic 2: Fit the reinforcing bar 51A to the main frame as shown.

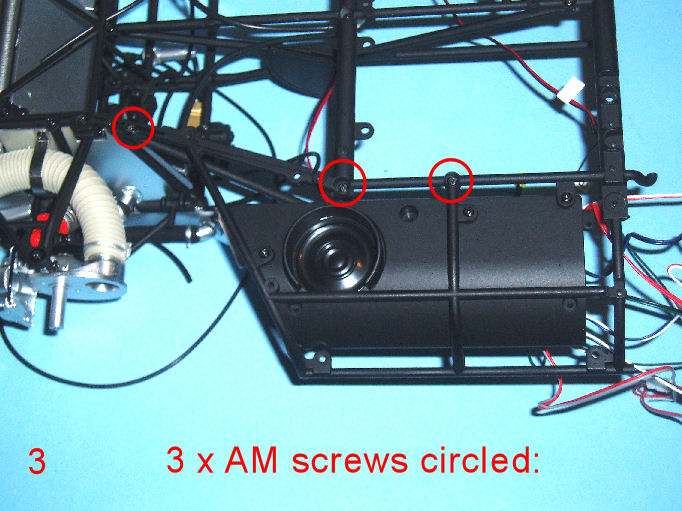

Pic 3: Holding the part in place, turn the model over and fix the parts using 3 x AM screws where indicated.

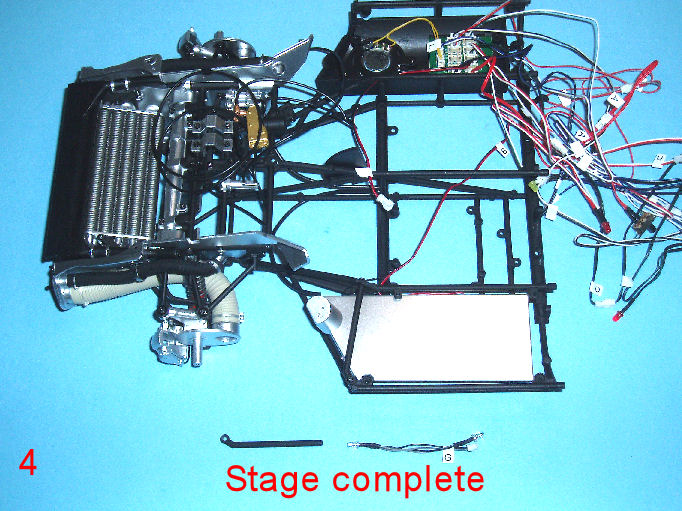

Pic 4: Store everything safely for now.roymattblack attached the following image(s):
|
|
|
|
