STAGE 45:
Battery box.
Pic 1: Locate the battery box 45A and fit the switch in place inside.
Note that the two red wire connections are on the right.
Fix the switch with 2 x WP screws.
Pic 2: From the other side, the switch should be in the ON position.
Pic 3: Retrieve the main assembly and fit the battery box under the opening at the rear. The switch should be on the right as shown.
Fix with 4 x EP screws.
Pic 4: From the other side, fit the cover 45B in place.
Pic 5: Fit the rear cross member 45C in place as shown.
Pic 6: From the other side, fix with 2 x EP screws.
Store the model safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,132 Points: 15,545 Location: ipswich
|
STAGE 46:
PCB and speaker.
Pic 1: Fit the PCB 46A into the battery box in the position shown.
Fix with 4 x EP screws.
Pic 2: Connect the on/off switch wire to the socket indicated.
Pic 3: Position the speaker 46C as shown on the floor of the car.
Pic 4: Fit the retaining bracket 46B and fix with 2 x AM screws.

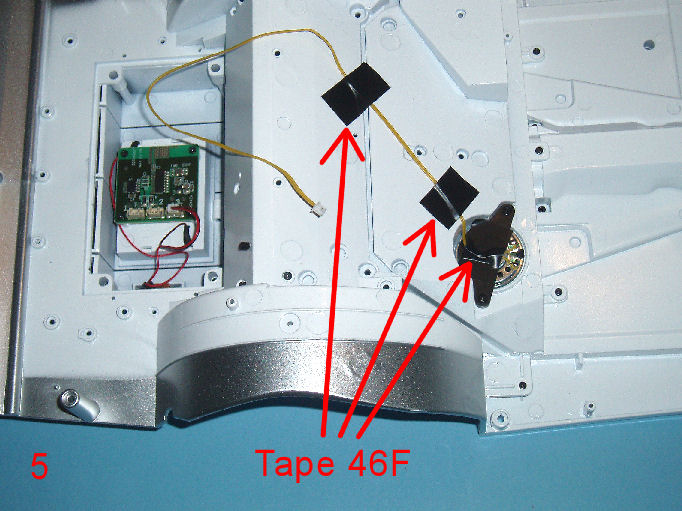

Pic 5: Carefully fold the yellow wires back over the speaker and tape it down in the positions shown using pieces of 46F tape.
Pic 6: Fit the LED wire 46D along the side of the floor as shown and fix it down using 2 x brackets 46E and 2 x EM screws.
The white connectors on the wires should be central between the brackets.
Pic 7: Fit the yellow and grey wires side by side and tape them as shown with a piece of 46F tape.
Store the model safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,132 Points: 15,545 Location: ipswich
|
STAGE 47:
Remote control.

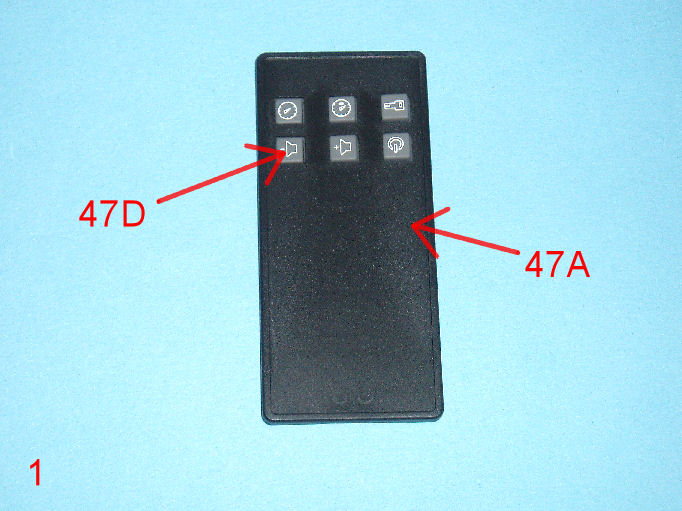

Pic 1: Fit the rubber pad 47D inside the casing 47A as shown.
Pic 2: Fit the control board 47C inside the casing.
It will only fit one way.
Pic 3: Clip the rear cover 47B onto the casing.

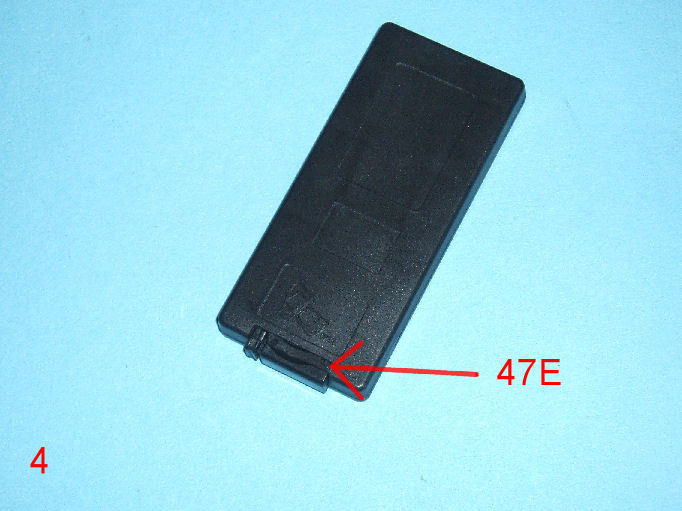

Pic 4: Fit the battery holder 47E into the casing as shown.
Pic 5: Connect the yellow and grey wires to the correct sockets on the PCB as shown.
You can now put batteries in the car and the remote control to test that all the functions work.
Remove the batteries and store everything safely for now.
roymattblack attached the following image(s):
|
|
|
|
