Issue 39
The Back
Picture 1 shows the contents of this issue.
Carefully fit the left shoulder gold trip, securing it with a type E screw as shown in picture 2. Turn the assembly over and secure it from the inside using a type F screw, picture 3.
Picture 4 shows the completed assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,948 Points: 21,151 Location: Northamptonshire, England
|
Issue 40
The Back
Picture 1 shows the contents of this issue.
Carefully fit the right shoulder gold trip, securing it with a type E screw as shown in picture 2. Turn the assembly over and secure it from the inside using a type F screw, picture 3.

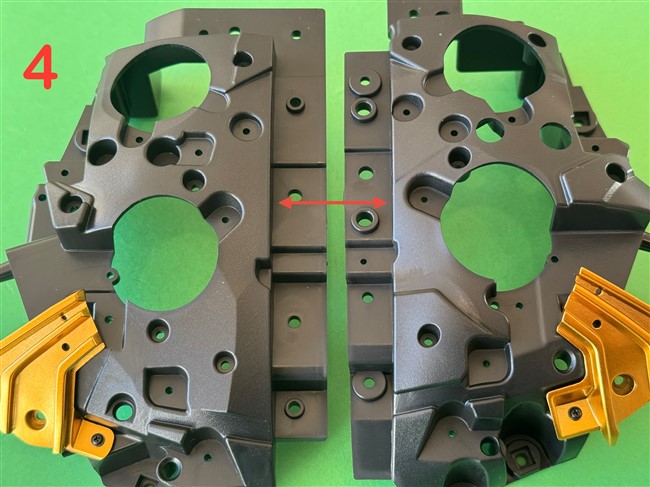

Retrieve the assembled left back shoulder from the previous issue and position them side by side as shown in picture 4. Take the three type L screws and place a toothed washer onto each one, picture 5.
With the two assemblies attached to each other, carefully turn the assembly over so it shows the inside and place an M3 nut in place as illustrated in picture 6. Holding the nut in place with a finger so it doesn’t fall out, turn the assembly back over and insert the screw in place and tighten it up using the allen key from issue 22, picture 7.
Now place the other two screws in position as shown in picture 8, placing the M3 nuts on the inside of the shoulder torso.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,948 Points: 21,151 Location: Northamptonshire, England
|
Issue 41
The Back
Press the centre back gold trim into place, picture 1. Secure it in place using 3 x type E screws, picture 2.
Picture 3 shows the completed assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,948 Points: 21,151 Location: Northamptonshire, England
|
Issue 42
The Back
Picture 1 shows the contents of this issue.
Fit the upper back gold trim into the upper recess of the back, securing it in place using 2 x type E screws, picture 2.
Press the blue plate in place as shown in picture 3, then turn the assembly over and secure it in place using 2 x type E screws, picture 4.
Picture 5 shows the completed assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
