Issue 21

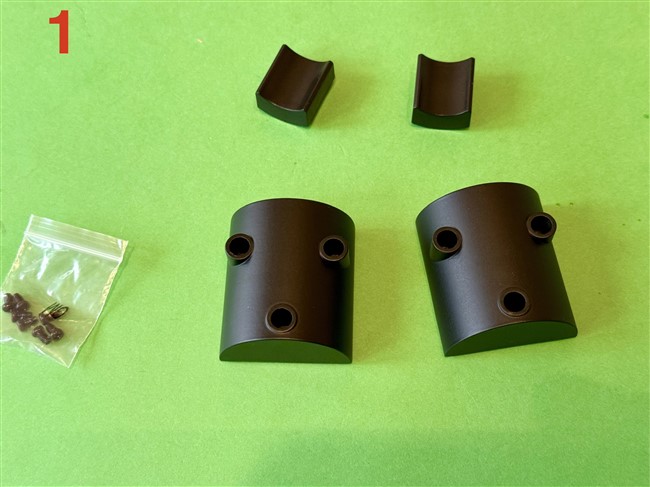

Picture 1 shows the contents of this issue.
The Upper Parts of the Legs

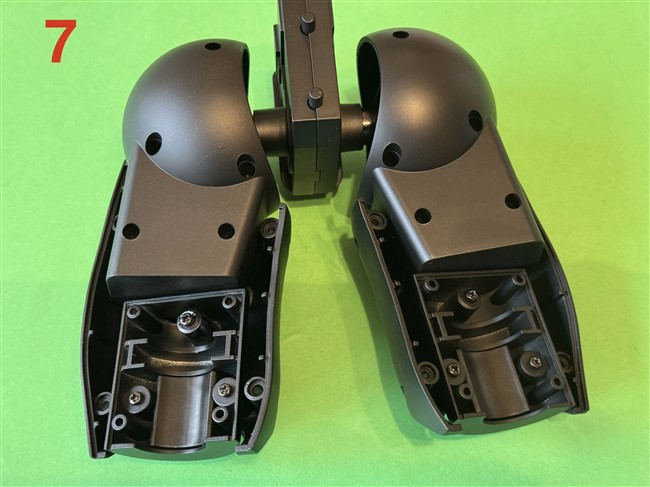

Place (21B), right mounting cover and place it inside the thigh structure, picture 2. Secure it in place using 3 x GM screws, picture 3.
Do the same with the left cover, picture 4.
Insert the support blocks (21C) to both sides by push fitting them in place, as shown in pictures 5, 6 and 7.
That completes the assembly for this issue.
