Issue 27
Picture 1 shows the parts for this issue.
Begin by fitting the right front seat base (27B) into the right front seat cushion (27E), pictures 2 and 3.
Fix the six pins on the seat backrest (27A) into the six holes on the front seat back cushion, pictures 4 and 5.
Join the two parts of the seat together, picture 6, and secure them in place using 2 x I screws, picture 7.
Push fit the seat lever in place on the side of the seat as shown in picture 8. Picture 9 shows the seat assembly complete.
Retrieve the left seat assembly from issue 24, and with the right seat assembly from this issue and place them both on the cabin floor, picture 10. Turn the assembly over and secure each seat with 2 x I screws as shown in picture 11.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 6,956 Points: 21,175 Location: Northamptonshire, England
|
Issue 28
Picture 1 shows the parts for this issue.
Place the two short rear floor mats (28D) behind the front seats, picture 2.
Press the rear seat support (28C) in place as shown in picture 3.
Finally, press the six pivots of the long rear mat (28A) into the holes in the rear of the passenger compartment floor, picture 4.

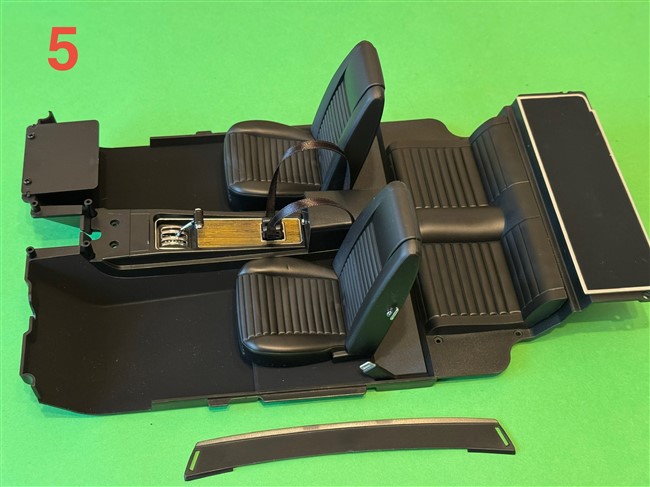

Picture 5 shows the complete assembly for this issue.
