STAGE 33:
Front bodywork 3.
Pic 1: Locate the left air intake parts 33A and 33B.
33B will fit on top of 33A.
Pic 2: Shows the parts assembled.
Pic 3: Retrieve the front body to fit the intake.
Pic 4: Fit the intake 33A/B in place and fix from the inside with 2 x ‘A’ screws.

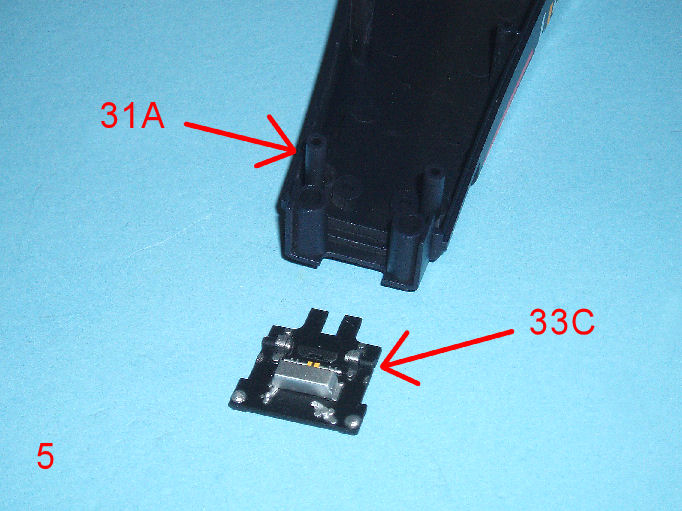

Pic 5: Turn the body 31A over and locate the steering plate 33C.
Pic 6: Fit the steering plate 33C into the body 31A as shown.
Pic 7: Retrieve the front steering/suspension assembly.
Pic 8: Fit the upper body in place over the suspension assembly, with the body located under the upper suspension arms as circled.
Pic 9: Turn the assembly over and fix the parts with 4 x ‘A’ screws.
Store the assembly safely.
