STAGE 21:
Front cross member.

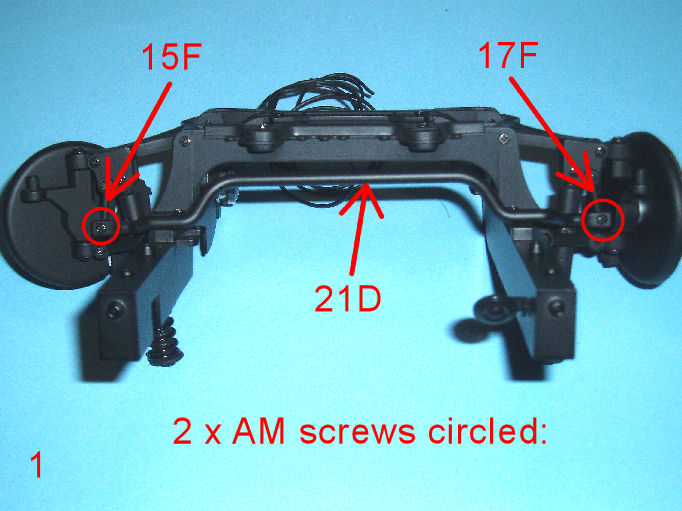

Pic 1: Retrieve the front chassis assembly and locate the stabilizer bar 21D.
Fit it in place as shown and fix each end to the drop links 15F and 17F using 1 x AM screw in each end.
Pic 2: Detail of the left side.
Pic 3: Detail of the right side.
Pic 4: Fit the 2 x securing brackets 21C and fix with 2 x AM screws in each.
Pic 5: Fit the front cross member 21A as shown and fix using 2 x BM screws.
Pic 6: Fit the front panel 21B and fix with 3 x IM screws.
Pic 7: Store the assemble safely.
