STAGE 97:
Dinozord cannons 1.
Pic 1: Fit the connecting piece 97.3 inside the cannon half 97.2 as shown and fix with 2 x PWM screws.
Pic 2: Make two sets the same.
Pic 3: Fit the connecting piece 97.4 inside the cannon half 97.1 as shown and fix with 2 x PWM screws.
Pic 4: Make two sets the same.
Pic 5: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 98:
Dinozord cannons 2.
Pic 1: Peel the backing paper off and fit the mount bushings 2 x 98.6 to the two cannon mounts 2 x 98.3.
Pic 2: Fit the parts together as shown.
Pic 3: Retrieve one of the gun parts 97.2 from the previous stage and fit the cannon mount, fixing it with 1 x PWM screw.
Pic 4: Fit the other gun half 97.2 to the cannon mount and fix with 1 x PWM screw.
Pic 5: Press-fit the other two gun halves 97.1 onto the assembly.
Pic 6: Fit the cannons into the lower half of the Dinozord tail 98.1
.
Pic 7: Fit the top of the tail 98.2 and fix with 2 x PB screws from above and below.
Pic 8: Fit the trim panel 98.4 into the tail part 98.1.
Pic 9: Fit the tail trim 98.5 into the tail part 98.2.
Store the assembly safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 99:
Dinozord body 3.
Pic 1: Retrieve the body assembly 79.1 and locate the inner panel 99.2.
79.1 will fit over the inner panel 99.2.
Pic 2: Shows the parts fitted together.

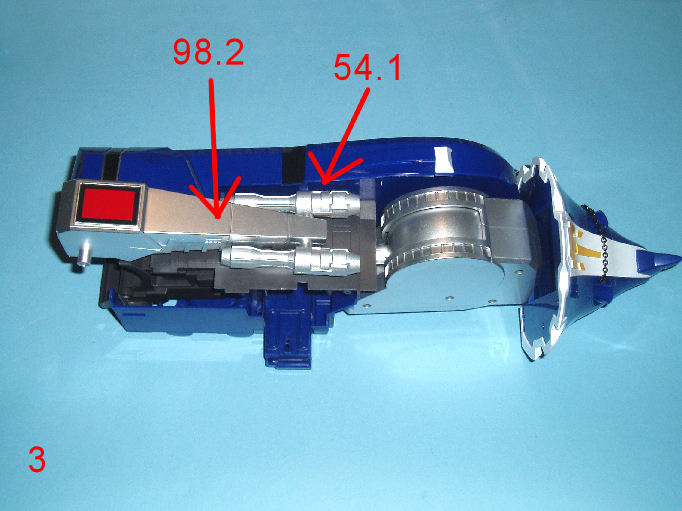

Pic 3: Retrieve the main Dinozord assembly and fit the cannons 98.2 in place as shown.
Pic 4: Fit the outer assembly 99.2 in place and fix with 2 x PB screws.

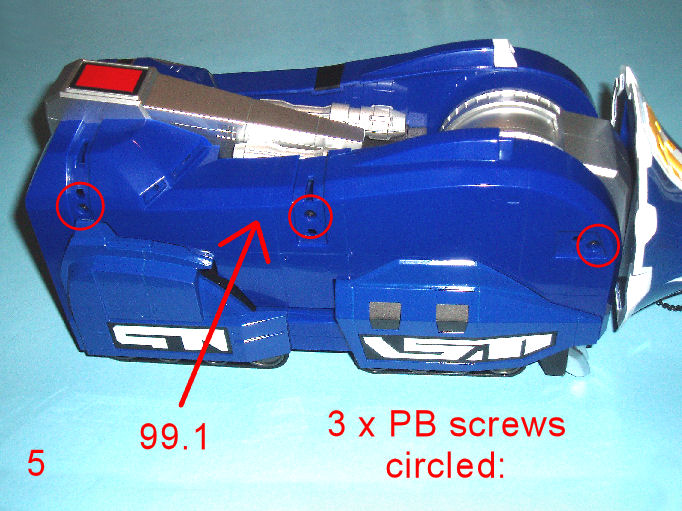

Pic 5: Fit the outer body 99.1 and fix with 3 x PB screws.
Pic 6: Press-fit the trim pieces 99.3, 99.4, 99.5, 99.6 and 99.7 in place where shown.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 100:
Tyrannosaurus tail 1.
Pic 1: Press-fit the tail parts 100.6 and 100.7 together, trapping the point 100.14 in the end.
Pic 2: Fit the lower tail part 100.9 to the assembly as shown.
Pic 3: Fit the upper tail part 100.8 and fix with 1 x PB screw through the central hole.
Pic 4: Fit the lower tail part 100.1 to the assembly as shown.
Pic 5: Fit the upper tail part 100.2 and fix with 1 x PB screw through the central hole.
Pic 6: Fit the lower tail part 100.4 to the assembly as shown.
Pic 7: Fit the upper tail part 100.3 and fix with 1 x PB screw through the central hole.
Pic 8: Press-fit the trim pieces 100.10 and 100.12 into the tail.
Pic 9: Press-fit the trim pieces 100.11 and 100.13 into the other side of the tail.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 101:
Tyrannosaurus tail 2.
Pic 1: Retrieve the tail assembly from stage 100 and fit the lower panel 101.2 as shown.
Pic 2: Fit the upper panel 101.1 in place and fix with 1 x PB screw through the centre hole.
Pic 3: Fit the trim panels 101.3, 101.5 and 101.7 to the left side of the tail.
Pic 4: Fit the trim panels 101.4, 101.6 and 101.8 to the right side of the tail.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 102:
Tyrannosaurus tail 3.
Pic 1: Retrieve the main body assembly and locate the tail panel 102.2.
Fit the panel to the body connector 58.3 as indicated.
Fix with 1 x PB screw.
Pic 2: Fit the connecting block 102.3 as shown.
Pic 3: Fit the tail assembly from stage 101 over the lower post on the panel 102.2.
Pic 4: Fit the top tail panel 102.1 and fix with 2 x PB screws.
Pic 5: Press-fit the trim panel 102.4 in place.
Pic 6: On the other side, press-fit the trim panel 102.5 in place.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 103:
Tyrannosaurus left leg 1.
Pic 1: Fit the hexagonal end of the spindle 103.5 into the locating hole in the foot connector 103.3.
Pic 2: Fit the inner knee joint 103.1 into the leg panel 103.2 as shown.
Pic 3: Fit the kneecap 103.4 in place as shown.
Pic 4: Store the parts safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 104:
Tyrannosaurus left leg 2.

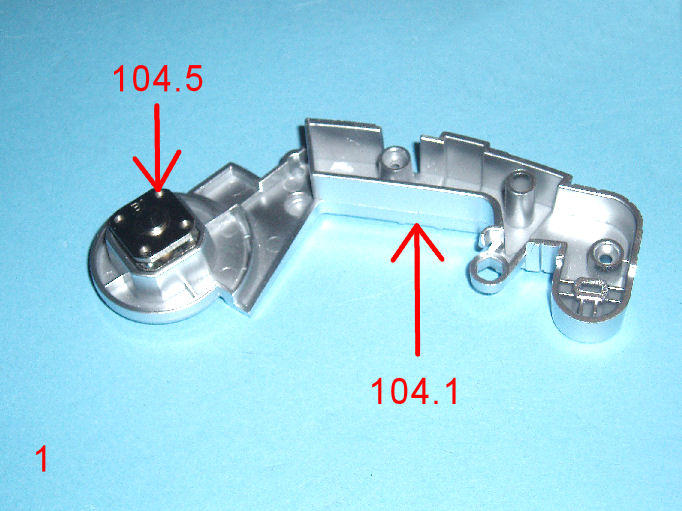

Pic 1: Fit the knee joint spindle 104.5 into the right calf 104.1 as shown.

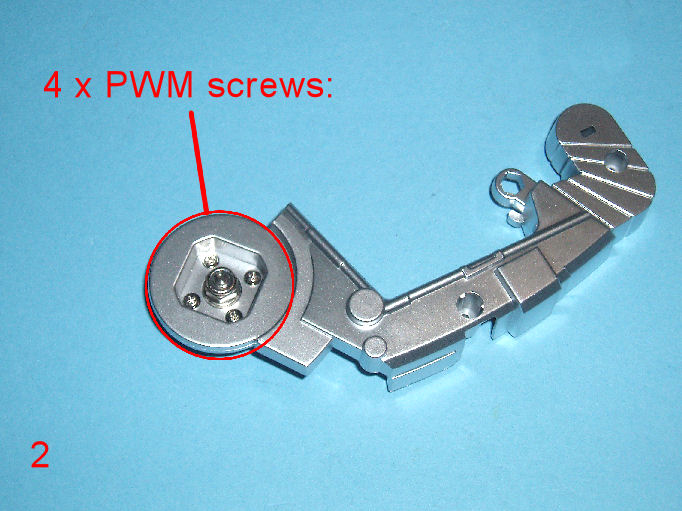

Pic 2: From the other side, fix the parts with 4 x PWN screws.

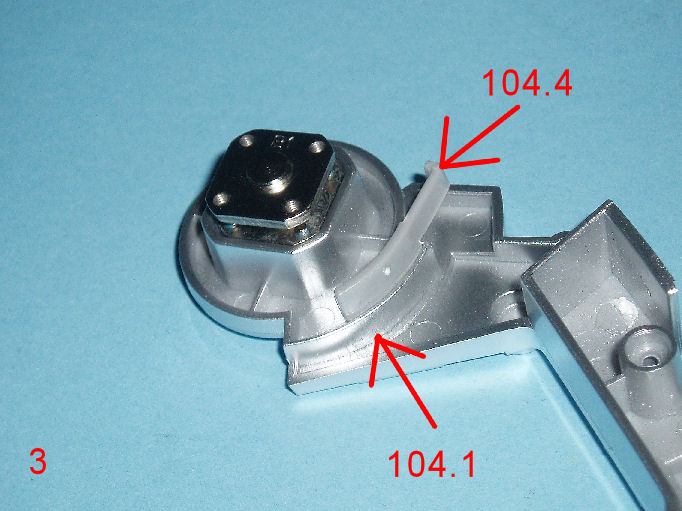

Pic 3: Fit the internal part 104.4 into the knee joint where indicated.
It will only fit one way.
Pic 4: Retrieve the leg assembly from stage 103 and fit the metal spindle 103.5 into the locating hole in the leg 103.2.
Fit the connecting piece 104.2 to the assembly as shown.
Pic 5: Fit the calf 104.1 to the assembly and fix with 2 x PB screws.

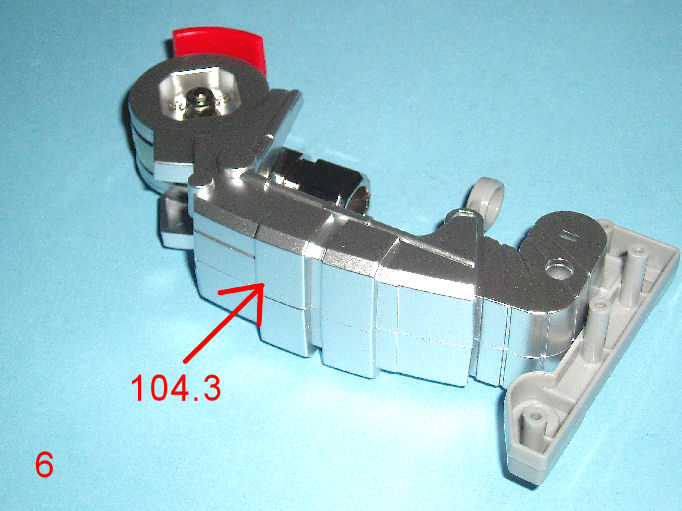

Pic 6: Press-fit the screw cover 104.3 in place.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|

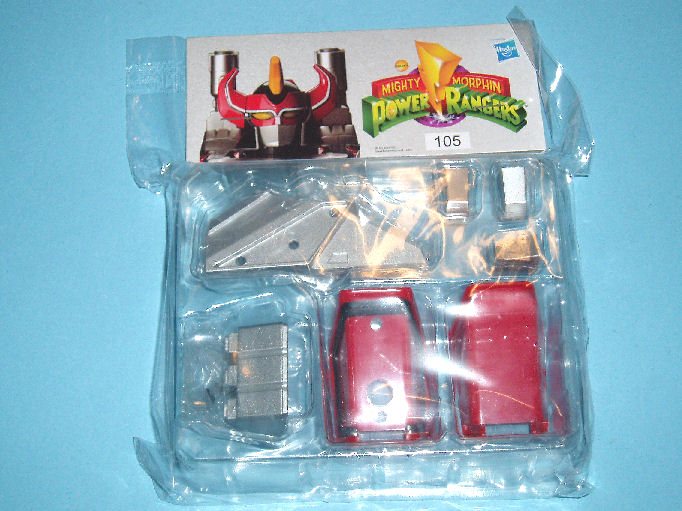

STAGE 105:
Tyrannosaurus left leg 3.
Pic 1: Fit the 3 x toes 105.3 to the foot 105.2 and fix from the inside with 3 x PWB screws.
Pic 2: Fit the assembly to the foot 105.1 and fix with 2 x PWM screws.

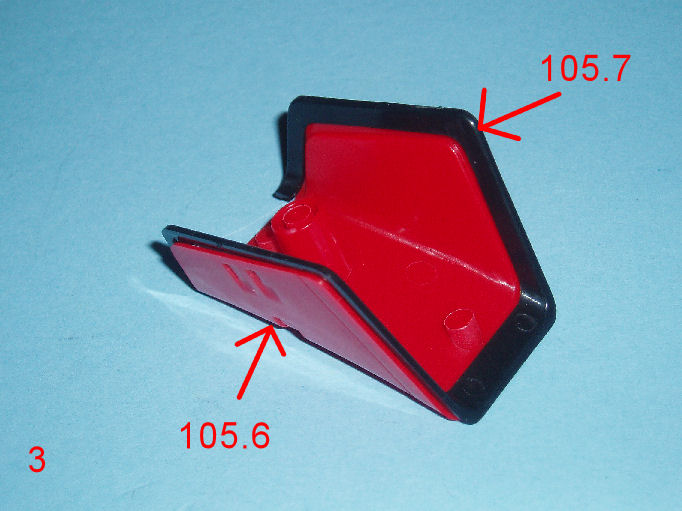

Pic 3: Fit the shin parts 105.6 and 105.7 together as shown.
Pic 4: Fit the shin part 105.5 inside the assembly.

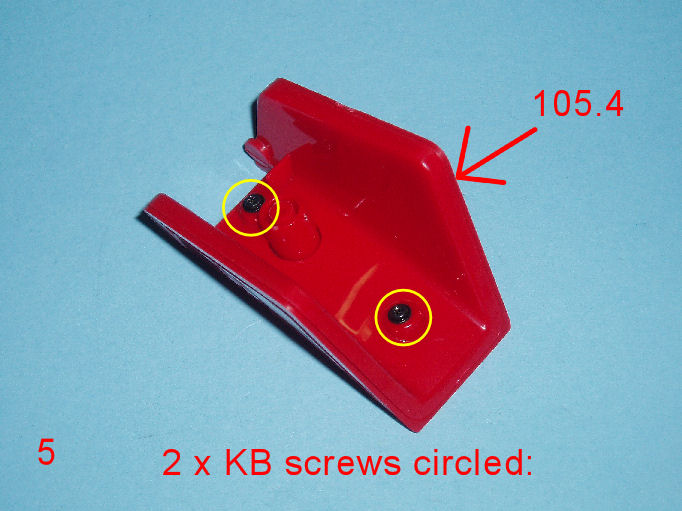

Pic 5: Fit the shin part 105.4 inside the assembly and fix with 2 x KB screws.
Pic 6: Retrieve the leg assembly and fit the shin in place as shown.
Fix with 1 x KB screw through the grey connecting piece.
Pic 7: Fit the foot assembly 105.1 to the connecting piece on the end of the leg assembly and fix with 2 x PWM screws.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|

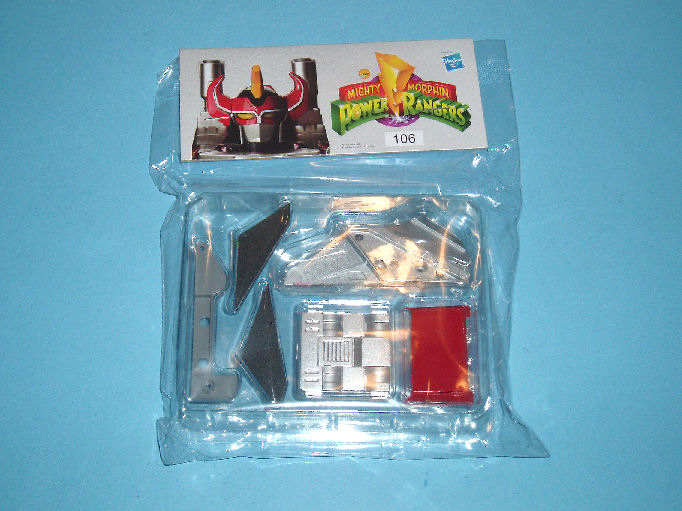

STAGE 106:
Tyrannosaurus left leg 4.

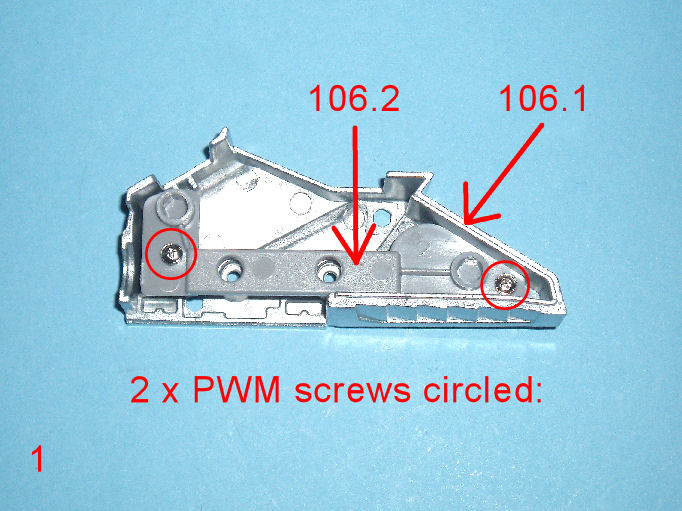

Pic 1: Fix the connecting piece 106.2 inside the foot parts 106.1 as shown using 2 x PWM screws.
Pic 2: Retrieve the leg assembly from stage 105 and fit the base of the foot 106.3 into the slot on the foot 105.1.
Pic 3: Fit the other half of the foot 106.1 and fix with 2 x PWB screws.
Pic 4: Press-fit the top trim 106.4 in place.
Press the side trim 106.5 into the side of the foot as shown.
Pic 5: Press the side trim 106.6 into the other side of the foot as shown.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 107:
Tyrannosaurus left leg 5.
Pic 1: Fit the internal plate 107.2 into the thigh 107.1 and fix with 4 x PWB screws.
Pic 2: Press the wide end of the spindle 107.4 into the hexagonal hole in the thigh 107.1.
Make sure it is pushed fully in place.
Pic 3: Fit the internal knee 107.3 over the spindle 107.4 as shown.
Pic 4: Retrieve the leg/foot assembly from the previous stage and fit the knee joint 107.3 over the metal spindle as shown.
Fix using 4 x PWM screws.
Store the leg safely for now.
roymattblack attached the following image(s):
|
|
|
|
