STAGE 27:
Rear mudguards.
Pic 1: The mudguard 27A will fit under the wheel arch parts 25A and 25B.
Pic 2: Press-fit the part in place as shown.

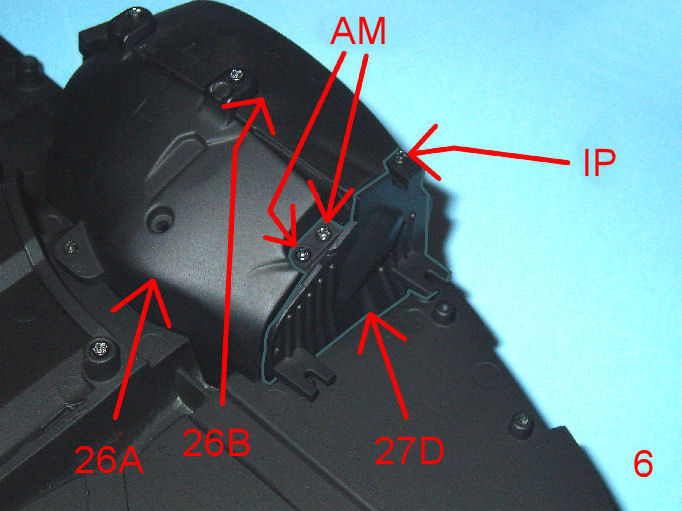

Pic 3: Fit the rear mudguard 27B in place as indicated and fix with 1 x IP screw and 2 x AM screws where shown.

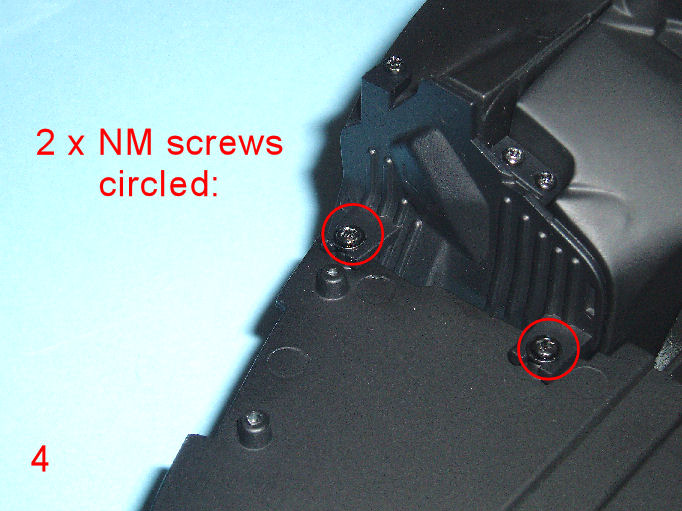

Pic 4: Fix the lower edge with 2 x NM screws.

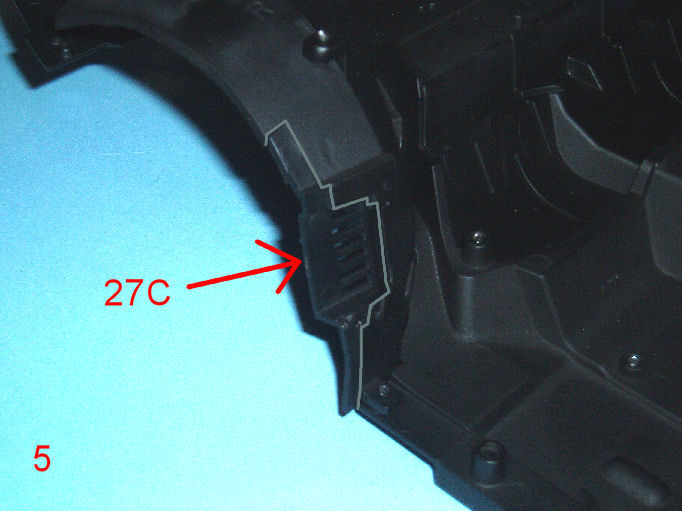

Pic 5: Repeat with the mudguard 27C on the other side.
Pic 6: Repeat with the rear mudguard 27D on the other side.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 28:
Rear axle 1.

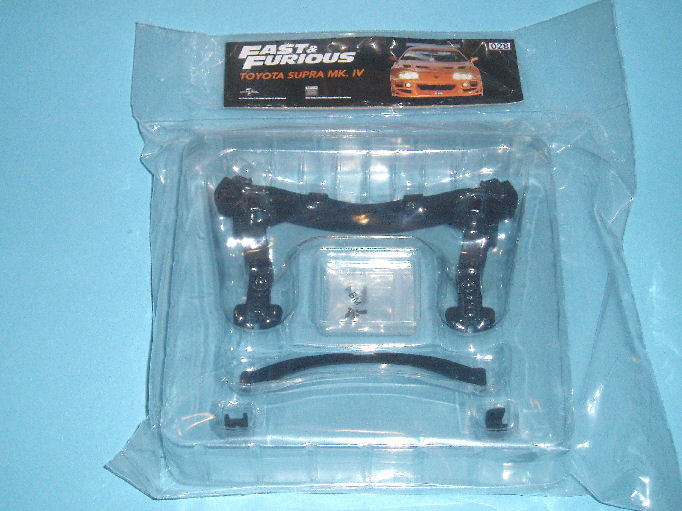

Pic 1: Locate the axle 28A and top cover 28B.
The cover will fit on top of the axle.

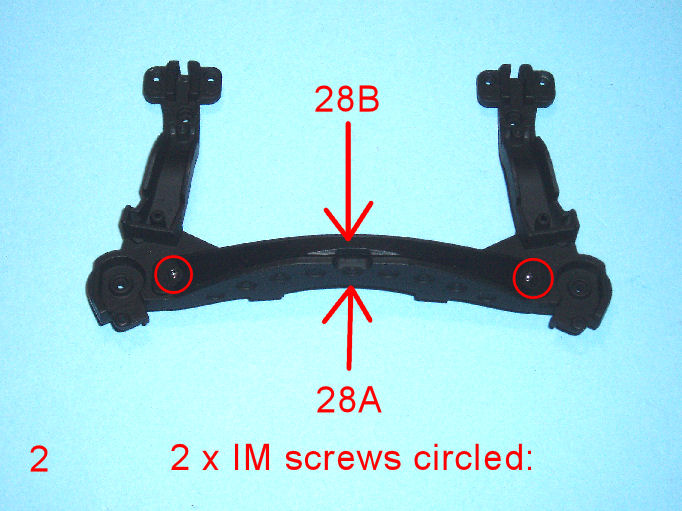

Pic 2: Fit the parts together and fix with 2 x IM screws.

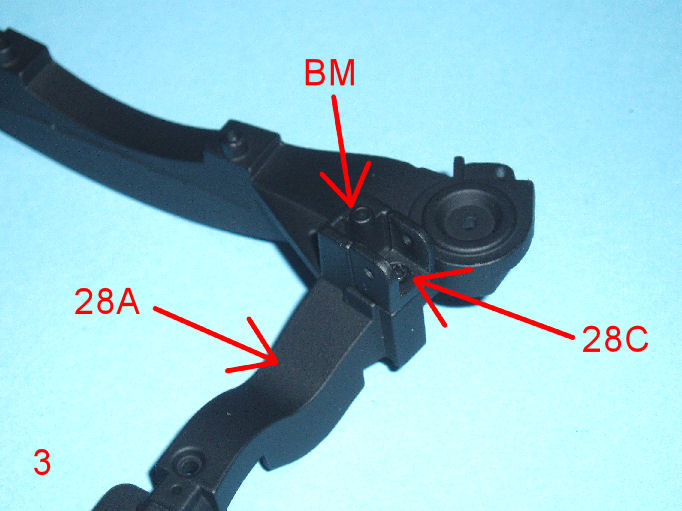

Pic 3: Fit the left bracket 28C as shown and fix with 1 x BM screw.
Pic 4: Fit the right bracket 28D as shown and fix with 1 x BM screw.
Pic 5: Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 29:
Rear axle 2.

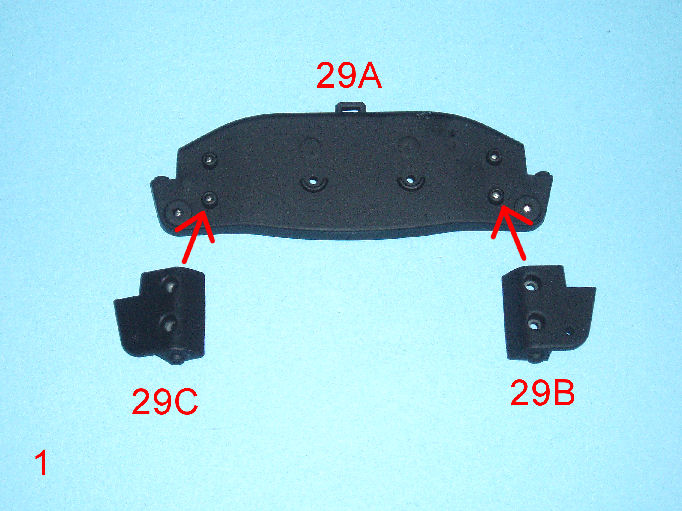

Pic 1: Fit the reinforcing plates 29B and 29C in place on the rear axle plate 29A.

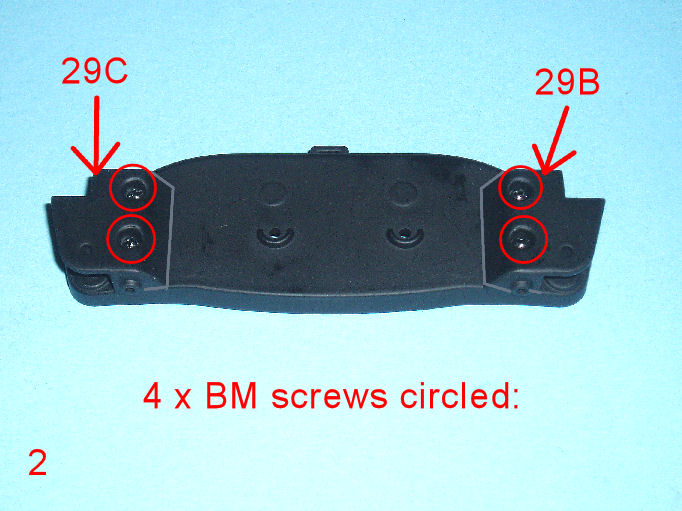

Pic 2: When fitted, fix with 2 x BM screws in each.

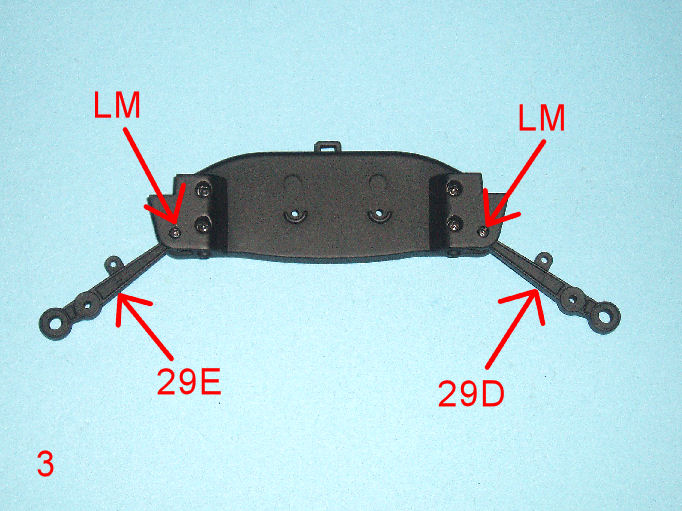

Pic 3: Fit the control arms 29D and 29E in place and fix using 1 x LM screw in each. The parts are marked ‘L’ and ‘R’ but appear to be the same.
Pic 4: Press-fit the 2 x brake cylinders 29J in place on the back plate 29A.

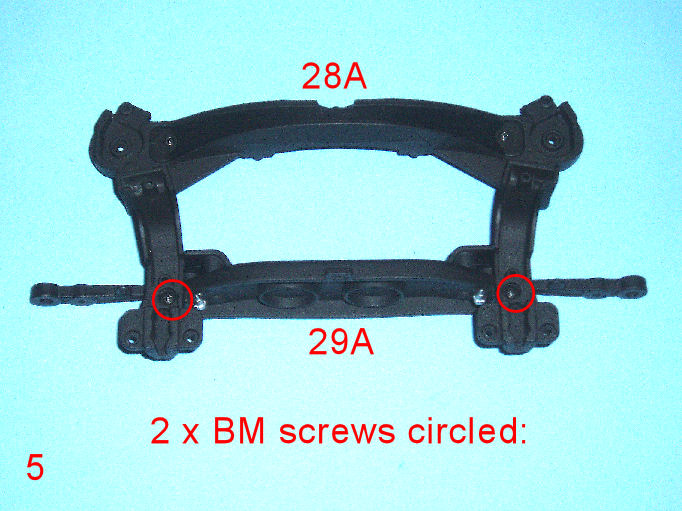

Pic 5: Retrieve the rear axle assembly 28A from the previous stage and fit the axle plate 29A as shown.
Fix with 2 x BM screws.

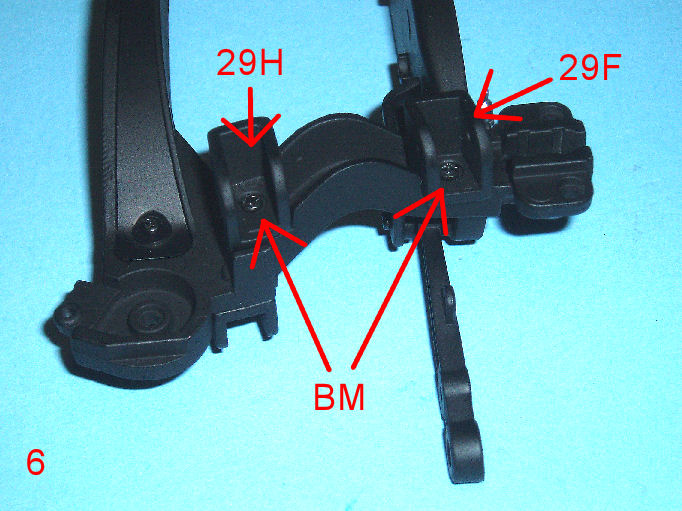

Pic 6: On the left side of the frame 28A fit the two brackets 29F and 29H.
They will each only fit in the correct locations.
Fix using 2 x BM screws.

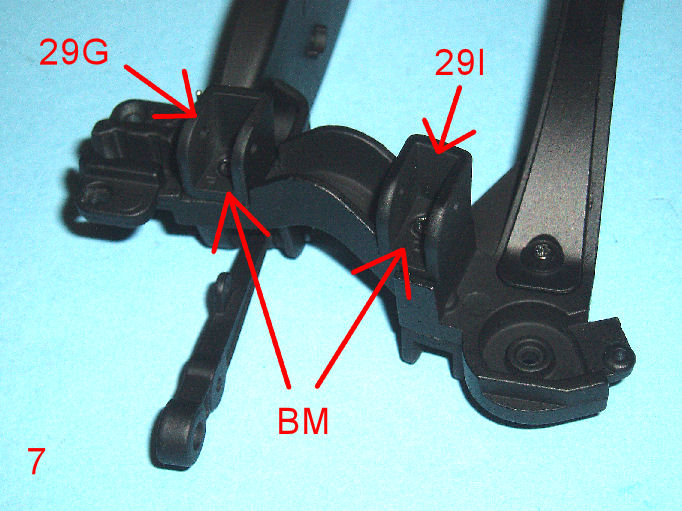

Pic 7: On the right side of the frame 28A fit the two brackets 29G and 29I.
They will each only fit in the correct locations.
Fix using 2 x BM screws.

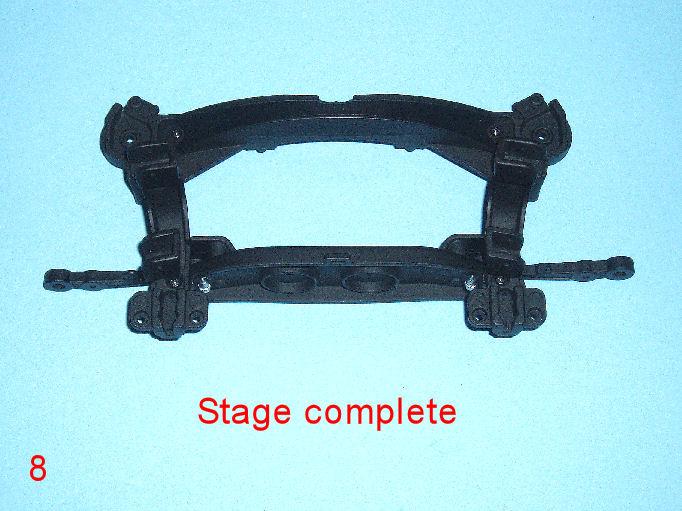

Pic 8: Store the assembly safely.
