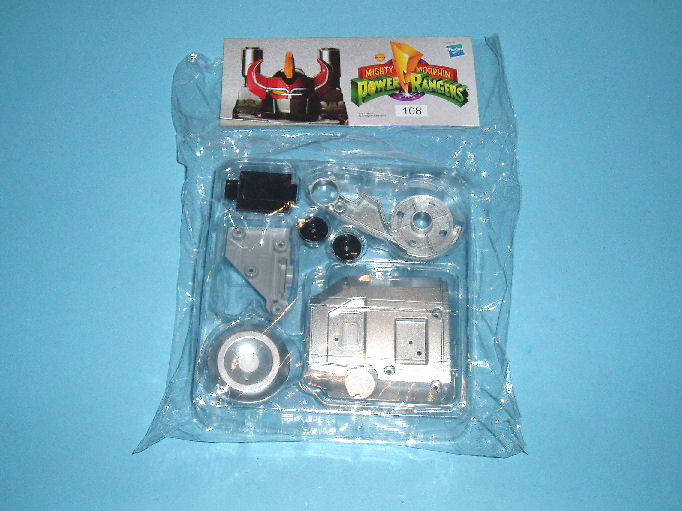

STAGE 108A:
Tyrannosaurus left leg 6.

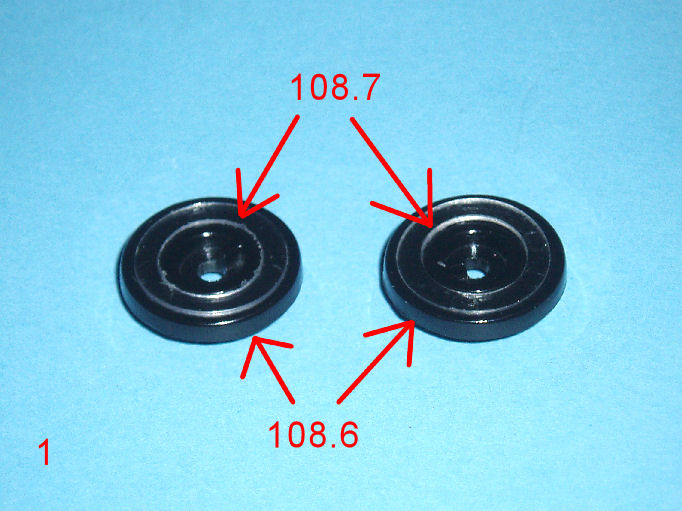

Pic 1: Fit the clear rings 108.7 into the recessed side of the black rotation discs 108.6.
Pic 2: Remove the black square part under the main body but keep the PWB screw. Do the same on the other side.
Pic 3: Replace the square part removed with the circular assemblies from step 1. The clear ring 108.7 is uppermost.
Fix using the removed PWB screw.

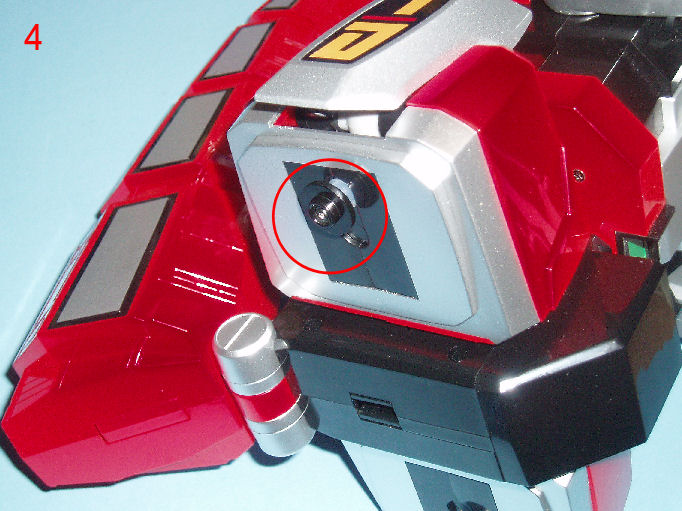

Pic 4: Do the same on the other side.

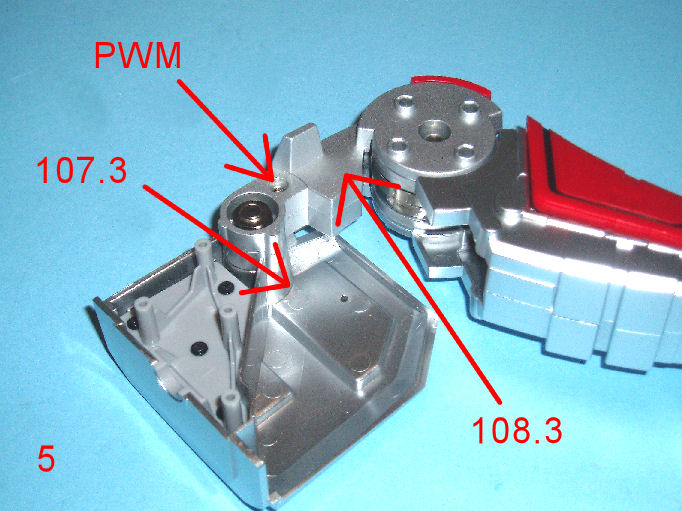

Pic 5: Retrieve the leg assembly and fit the internal knee 108.3 as shown.
Fix with 1 x PWB screw.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|
STAGE 108B:
Pic 6: Press-fit the cap 108.5 into the knee joint.
Pic 7: Do the same on the other side.
Pic 8: Fit the circular recess in the top of the leg assembly over the round rotation joint on the left of the body, fitted in step 3.

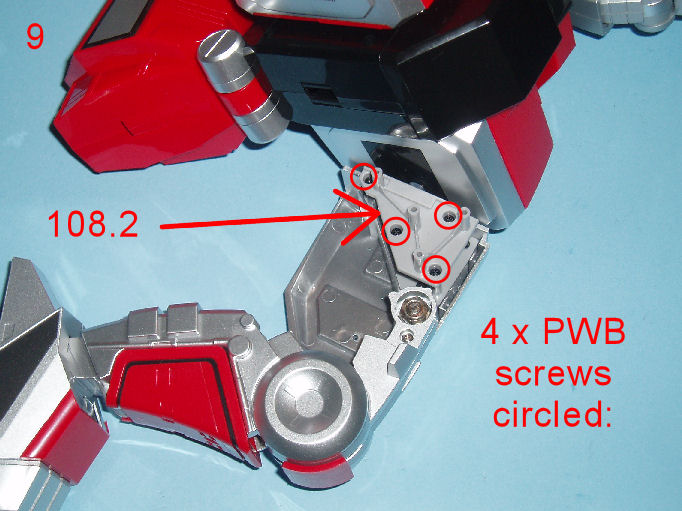

Pic 9: From the inside of the leg, fit the retaining bracket 108.2 and fix with 4 x PWB screws.
Pic 10: Fit the trim piece 108.4 as shown.
It will only fit one way.

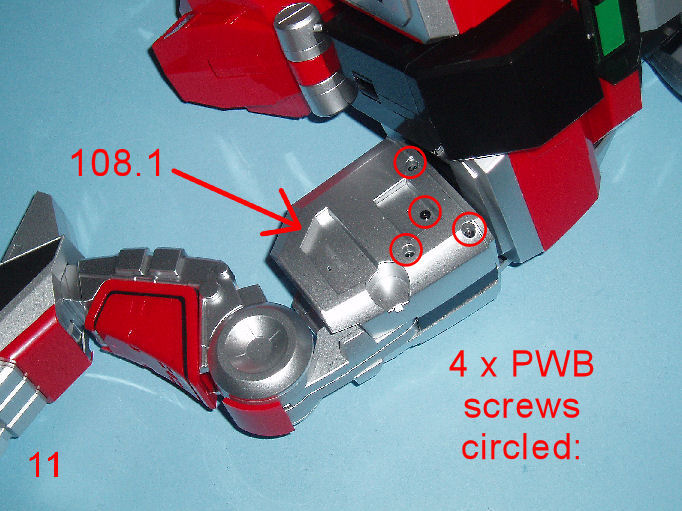

Pic 11: Fit the inner thigh panel 108.1 and fix with 4 x PWB screws.
Store the model safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,197 Points: 15,740 Location: ipswich
|

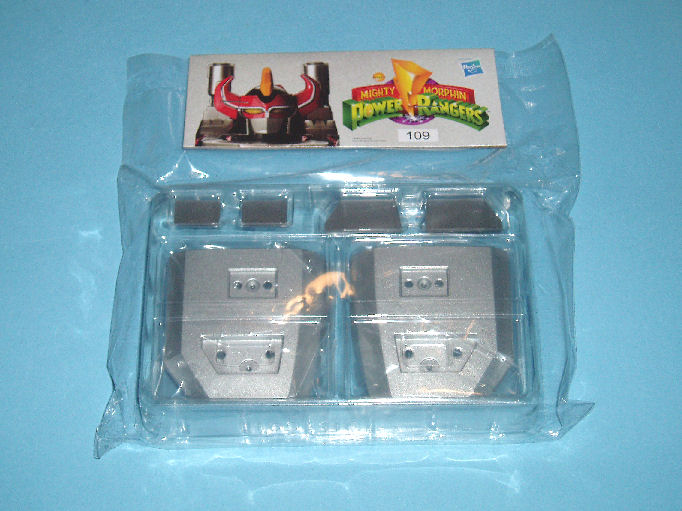

STAGE 109:
Tyrannosaurus left leg 7.

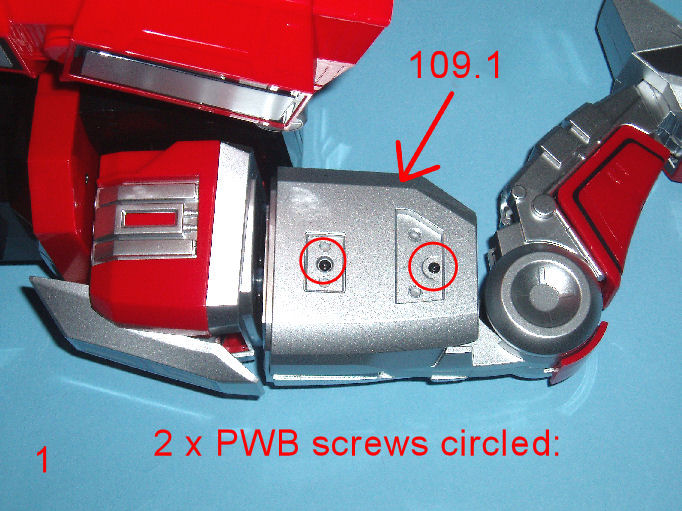

Pic 1: Fit the thigh cover panel 109.1 to the leg as shown and fix with 2 x PWB screws.

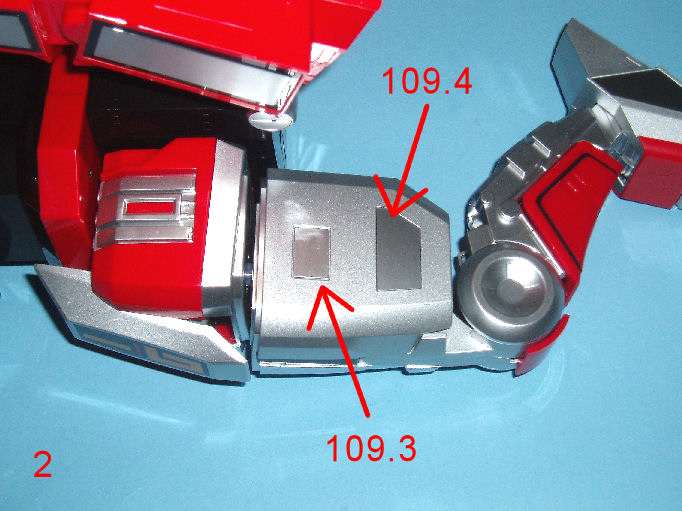

Pic 2: Press-fit the trim panels 109.3 and 109.4 in place as shown.

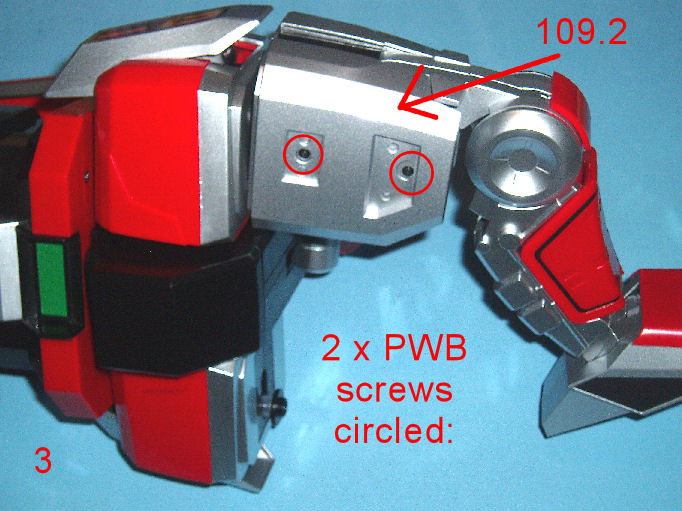

Pic 3: Fit the thigh cover panel 109.2 to the leg as shown and fix with 2 x PWB screws.

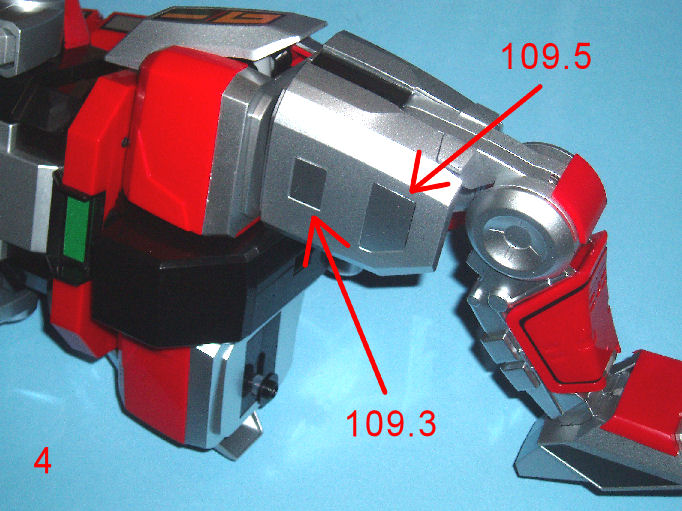

Pic 4: Press-fit the trim panels 109.3 and 109.5 in place as shown.
Store the model safely for now.
roymattblack attached the following image(s):
|
|
|
|
