STAGE 6:
Turbine engine 2.
Pic 1: Fit the 3 x 6-3 fans onto the shaft of the turbine assembly from the previous stage.
The three fans are all the same.
Make sure to tit them as shown.
Pic 2: Press-fit the shaft end 6-4 in place.
Pic 3: Locate the housing parts 6-1 and 6-2.
They will press-fit together.
Pic 4: Parts assembled.
Pic 5: Retrieve the turbine assembly and fit the housing in place as shown.
Fix using 2 x ‘D’ screws on one side.
Pic 6: Fix the other side with another 2 x ‘D’ screws.
Store the assembly safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,259 Points: 15,929 Location: ipswich
|
STAGE 7:
Turbine engine 3.
Pic 1: Retrieve the turbine assembly and fit 2 x tubes 7-7 as shown.
Pic 2: Turn the assembly over and fit another 2 x 7-7.
Pic 3: Locate the oil pump parts 7-2 and 7-3.
The parts will push-fit together.
Pic 4: Parts assembled.
Pic 5: Fit the assembly to the pump support 7-1 as shown and fix with 1 x ‘D’ screw.
Pic 6: Fit the connector 7-5 into the end of the hose 7-4.
Pic 7: Fit the hose to the oil pump as shown.
Pic 8: Fit the connector 7-6 into the end of the hose 7-4.
Pic 9: Fit the hose to the oil pump as shown.
Store the parts safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,259 Points: 15,929 Location: ipswich
|

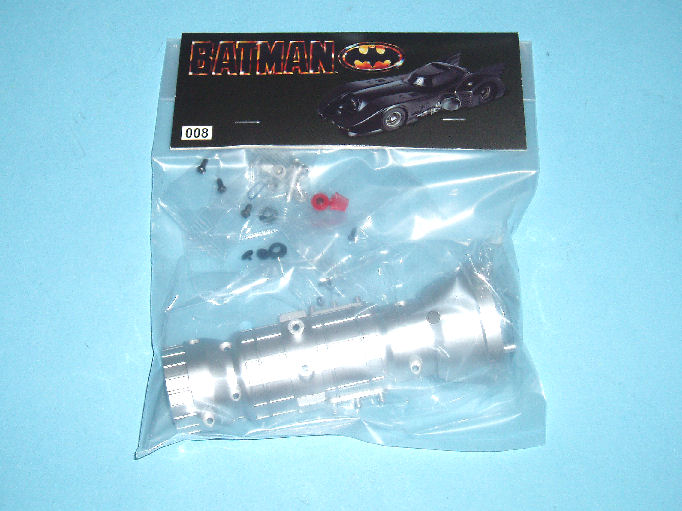

STAGE 8:
Turbine engine 4.
Pic 1: Retrieve the turbine assembly and fit the 2 x oil filter tubes 8-2 as shown and fix from the other side with 2 x ‘E’ screws.
Pic 2: Fit 2 x filter base 8-5 as shown.
'E' screws fitted in step 1.
Pic 3: Fit 2 x filters 8-3 as shown.
Pic 4: Fit 2 x filter covers 8-6 as shown.
Pic 5: Fit 2 x filter caps 8-4 as shown.
Pic 6: Fit the assembly to the lower housing 8-1 as shown.
Pic 7: Fix from the other side with 2 x ‘D’ screws.
Store the assembly safely for now.
roymattblack attached the following image(s):
|
|
|
|
