STAGE 39:
Exhaust 2.
Pic 1: Retrieve the main assembly and carefully place it upside down.
Fit the exhaust 39B in place and fix with 2 x IM screws.
Pic 2: Retrieve the exhaust assembly 38C/38F.
The printed instructions suggest removing the top turbo cover to fit the exhaust in place but this isn’t really necessary as the parts fit together easily.
This is at the builder’s discretion.
‘Wiggle’ the exhaust 38C into place under the sub frame and fit the end into the turbo as shown.
Pic 3: Shows the connection of the other end.
Pic 4: Parts in place, seen from above.
If you removed the turbo cover, re-fit it now.
Pic 5: Store the model and unused parts safely.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,263 Points: 15,941 Location: ipswich
|
STAGE 40:
Exhaust 3.
Pic 1: Fix the muffler part 40B to the exhaust 40A using 1 x CP screw.
There is an arrow moulded inside 40B which must face the rear.
Pic 2: Fix the tail pipe 40E in place with 1 x CP screw.
Pic 3: Fix the muffler part 40C in place with 2 x CP screws.
Pic 4: Fit the bracket 40D to the muffler and fix with 1 x CP screw.
The bracket will only fit one way.
Pic 5: Retrieve the main assembly and carefully place it upside down.
Fit the exhaust assembly as shown and fix with 1 x AM screw at the front and 1 x CP screw through the bracket at the rear.
Pic 6: Retrieve the exhaust 39A from the previous stage and fix it in place as shown using 3 x CP screws.
Pic 7: Press-fit the heat shield 39C from the previous stage in place.
Store the model safely.
Be careful as the model is heavy and will now be resting on the exhaust at the rear.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,263 Points: 15,941 Location: ipswich
|
STAGE 41:
Speaker and battery box.
Pic 1: Locate the fuel tank 41B, speaker 41C and bracket 41E.
Pic 2: Fit the parts together as shown and fix with 2 x GP screws.
Pic 3: Fit the battery box 41F and fix with 4 x GP screws.
Pic 4: Fit the switch 41D in place and fix with 2 x GP screws.
Note the wires are to the left on the switch.
Pic 5: Retrieve the fuel tank top from stage 37 and pass the wires through the square hole as indicated.
Pic 6: Fit the parts together and fix with 4 x IP screws.
Pic 7: Retrieve the fuel pipe section from stage 37 and fix it in place with 2 x AP screws.

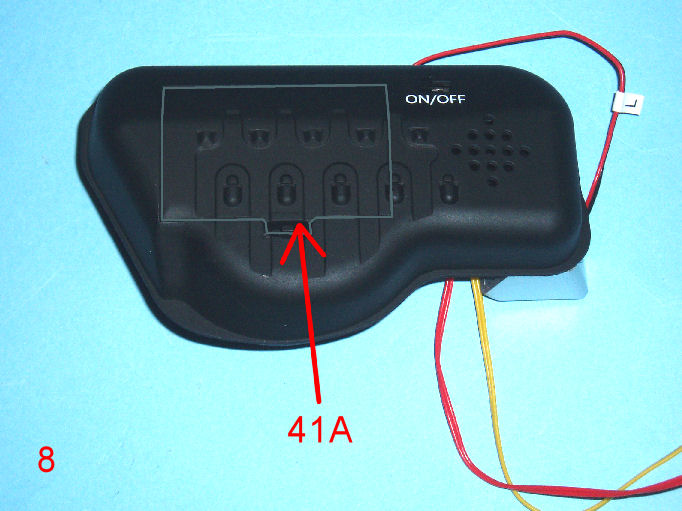

Pic 8: Clip-fit the battery cover 41A in place.

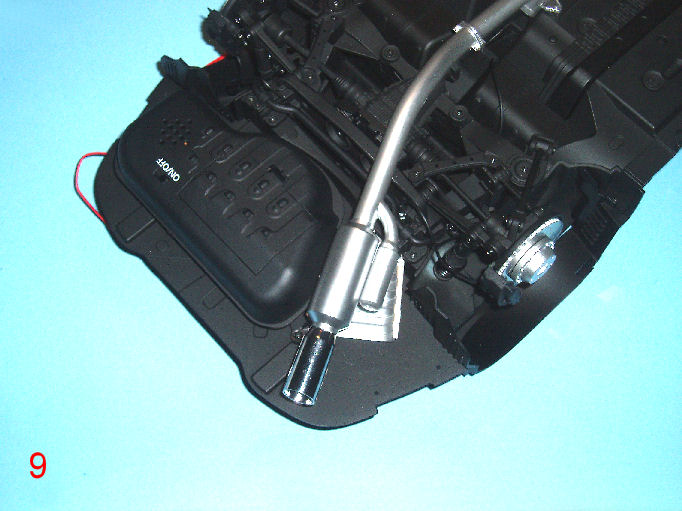

Pic 9: Retrieve the main assembly and fit the fuel tank in place as shown.
The wires will pass through the hole in the floor panel.
Pic 10: From the other side, fix with 4 x IP screws.
Note the wires coming through the hole in the floor.
Store the model safely for now.roymattblack attached the following image(s):
|
|
|
|
