Issue 33
Picture 1 shows the parts for this issue.
Begin by placing the steering wheel boss (33A) onto the steering wheel column shaft, picture 2.
Align the two holes in the steering wheel (33C) and secure it in place using 2 x F type screw, picture 3.
Push fit the horn button (33B) in place as shown in picture 4.
Place both the front mats (33D) to the left and right of the compartment floor, picture 5.
Picture 6 shows the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,019 Points: 21,364 Location: Northamptonshire, England
|
Issue 34
Begin by placing the three pins of the wooden dashboard trim (34F) into the holes in the dashboard instrumentation frame (34C), pictures 1 and 2.
Fit the holes in the two tabs of the dashboard clock frame (34D) over the two pins of the wooden clock trim (34E), pictures 3 and 4. Place the dashboard clock (34A) into the assembly as shown in picture 5.
Pictures 6 and 7 show the two dashboards complete for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,019 Points: 21,364 Location: Northamptonshire, England
|
Issue 35
Picture 1 shows the parts for this issue.
Take the dashboard instrument panel from the previous issue and fit the three pins of the wooden trim into the holes on the left-hand side of the dashboard (35A), picture 2.
Turn the assembly over and secure it in place using 3 x G screws, picture 3.
Now take the clock assembly from the last issue and place it into the right-hand side of the dashboard, securing it in place using 2 x G screws, pictures 4 and 5.

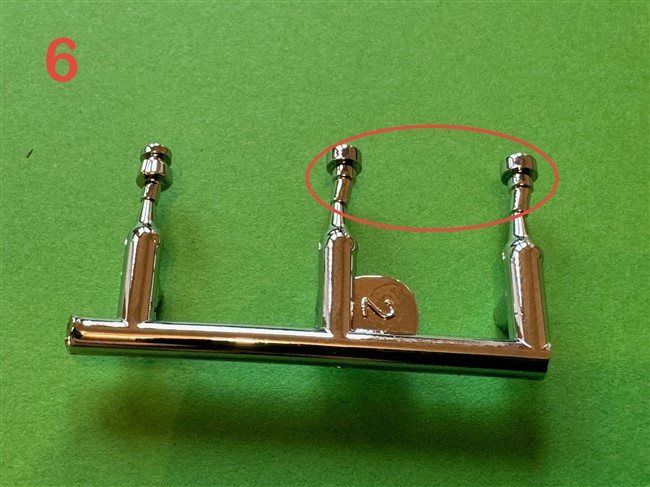

Separate the two dashboard buttons (35B), picture 6, marked number 2. Press one either side of the dashboard housing as illustrated in picture 7.
Take the LED cable (35D) and place the LED with the shortest cable (passenger side) into the rear of the dashboard, picture 8. Now take the LED with the longest cable (steering wheel side) and place it into the dashboard as shown in picture 9. Picture 10 shows how it looks when the cable and both the LEDs are attached.
Picture 11 shows the assembly complete for this issue.Markwarren attached the following image(s): Regards
