STAGE 63A:
Tank components.
Pic 1: Retrieve the parts from stage 62 and fit the outer rim 62B into the tyre 62A. Make sure the Firestone lettering is on the outside as shown.
Pic 2: Turn the wheel over and fit the inner rim 62C with the screw fixings aligned with the outer rim.
Fix the parts with 3 x AM screws.
Pic 3: Locate the cord 62D and tie a slip knot in one end.
If you aren’t sure how to tie a slip knot there are several simple videos on YouTube.
Pic 4: Retrieve the engine assembly and fit the knot over the wheel support as shown.
Pull the knot tight.

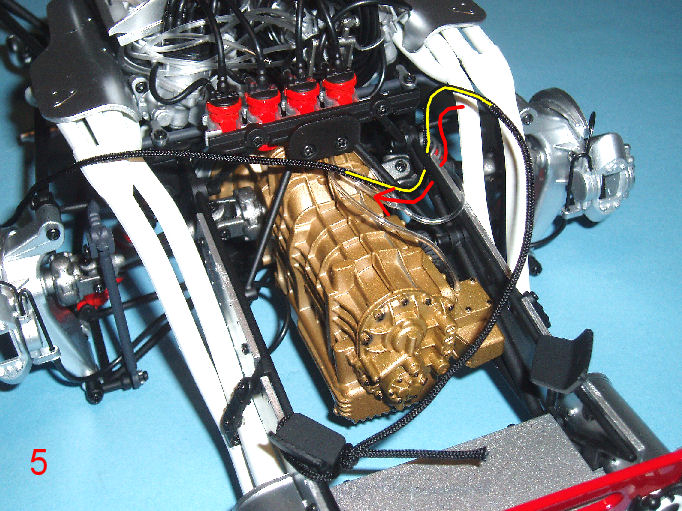

Pic 5: Feed the cord through the hole in the outer frame as shown, from the outside.
The cord has been highlighted in yellow.
Pic 6: Continue to feed the cord through the other hole in the opposite frame as shown.
The cord has been highlighted in yellow.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,272 Points: 15,968 Location: ipswich
|
STAGE 63B:
Pic 7: Fit the spare wheel just assembled under the cord and into the wheel supports as shown.
Pic 8: Pull the cord over the wheel and loop it in the centre as shown.
Pic 9: Move the wheel out of the way and pass the cord behind the wheel support.
Pic 10: Pull the cord tightly into place around the wheel and then pass the end back through itself as shown.
Pic 11: Pull the cord tight down to the wheel support and then repeat the process.
Pic 12: Finally pull the cord down and tie it into a knot on itself.
Cut off any spare cord at both ends.
Pic 13: Store the model and unused parts safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,272 Points: 15,968 Location: ipswich
|
STAGE 64A:
Filter and pump.
Pic 1: Retrieve all unused parts from stage 63.
Cut the tube 63J into 2 x 120mm and 1 x 90mm pieces.
Pic 2: Fit the 2 x 120mm tubes to the pins on the lower tank 63A as shown.
Pic 3: Fit the 90mm tube to the pin on the lower tank 63A as shown.
Pic 4: Fit the thicker tube 63H as shown.
Pic 5: Locate the upper tank parts 63C and 63D. They will fit together where indicated.
Pic 6: Fit the parts together and fix with 3 x AP screws.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,272 Points: 15,968 Location: ipswich
|
STAGE 64B:
Pic 7: Fit the lower tank to the assembly and fix with 2 x AP screws.
Pic 8: Fit the base 63B as shown and fix with 4 x AP screws.
Pic 9: Press-fit the connector 63G in place as shown.
Pic 10: Press-fit the tank pipe 63E in place.
It will only fit one way.
Pic 11: Press-fit the valve 63F in place.
It will only fit one way.
Pic 12: Fit the tube 63I as shown.
Pic 13: Connect the free end of tube 63H to the valve as shown.
Store the assembly and unused parts safely.
roymattblack attached the following image(s):
|
|
|
|
