Issue 45 Part 1
The Back
Picture 1 shows the contents of this issue.
Place a nut into the right waist frame, picture 2. Take the right and left waist frames and joint them together as shown in picture 3. Take 3 x H screws and place a serrated washer over each of them as illustrated in picture 4.
Place three of the nuts into the inside of the frame, picture 5, then turn over and place the screws into the washers as shown in picture 6.
Retrieve the back assembly from issue 44 and position the waist frame as illustrated in picture 7. Start connecting the back and waist from the left-hand side. Place 3 nuts on the inside and joint them together using 3 x H bolts as shown in pictures 8 and 9.
That completes the assembly for part 1 of this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,029 Points: 21,394 Location: Northamptonshire, England
|
Issue 45 Part 2
The Back
Fix the right side by following the same procedure, fitting the two bolts and nuts shown in pictures 10 and 11. Picture 12 shows the placements of the bolts.
Finishing securing the left side by fixing a type E screw, picture 13.
In the two-side hole, fix two M3 nuts, picture 14. Now fit one of the joint covers using a type E screw as shown in picture 15. Make sure the notch in the joint cover faces outwards. Do the same with the other side, picture 16.
Picture 17 shows the completed assembly for part 2 of this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,029 Points: 21,394 Location: Northamptonshire, England
|
Issue 46
The Back

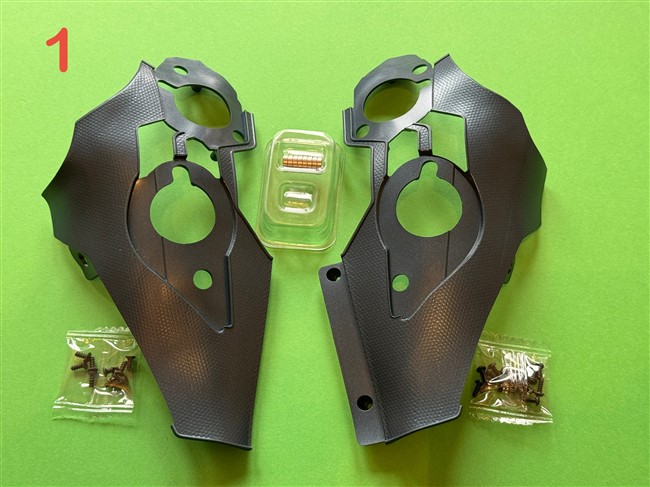

Picture 1 shows the contents of this issue.
Start by putting together the two blue back plates using 2 x E screws to secure them in place, picture 2.
Carefully separate the magnets and insert an “I” type screw as shown in picture 3. Place all eight magnets by screwing them into position as illustrated in picture 4. Note: Do not over tighten the screws as the magnets are quite brittle and may break.
Next, fit the blue plate in place on the back, picture 5. Turn the assembly over and secure it in place using 14 x E type screws as shown in picture 6.
Picture 7 shows the completed assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,029 Points: 21,394 Location: Northamptonshire, England
|
Issue 47
The Spider Leg Support
Picture 1 shows the contents of this issue.
Place two of the M4 nuts into the bar structure as shown in picture 2. Take the rounded bracket over the nuts and secure it using a type E screw, picture 3.
Place two more M4 nuts into position, picture 4 and place the square bracket over them in the same way as before, again securing it using a type E screw, picture 5.
Picture 6 shows the completed assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,029 Points: 21,394 Location: Northamptonshire, England
|
Issue 48
The Spider Leg Supports
Picture 1 shows the contents of this issue.
Insert one of the shock absorbers (they are both the same) into the number two leg support, picture 2. Prepare four J bolts and place a washer on each one, picture 3.
Using an allen key, screw the four bolts so the shock absorber is secured to the support, picture 4.
Insert one of the magnets inside the shock absorber, noting which way around it sits, picture 5, then one of the rubber dampers over the magnet inside the shock absorber. Fix the assembly to the support by using 4 x J bolts and washers as before, picture 6.
Do the same with the number one support, picture 7.
Prepare four H bolts with a washer, picture 8.
Now place the supports onto the support plate, picture 9. Each support will have a number on it to show which support is which. Insert an M4 nut into the top corner of the support as illustrated in picture 10, turning the assembly over and fixing the bolts to the nuts, picture 11.
Picture 12 shows the completed assembly for this issue.
