STAGE 51:

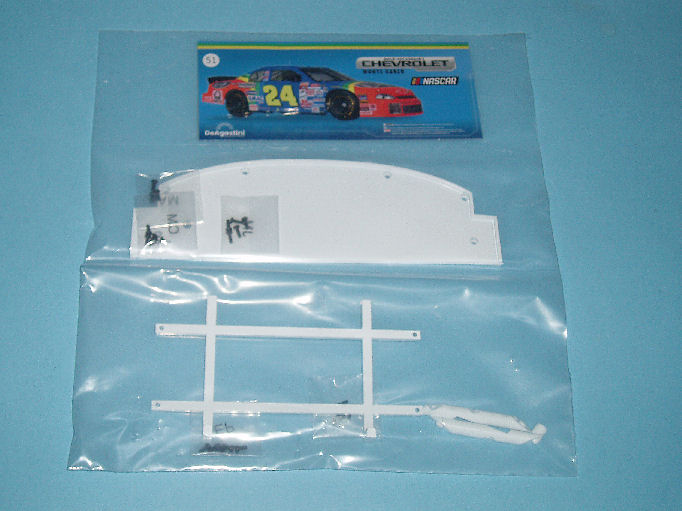

Rear parcel shelf.
Pic 1: Retrieve the main assembly and fit the fuel cell retaining rack in place, noting how the 3 x pipes go through the centre.

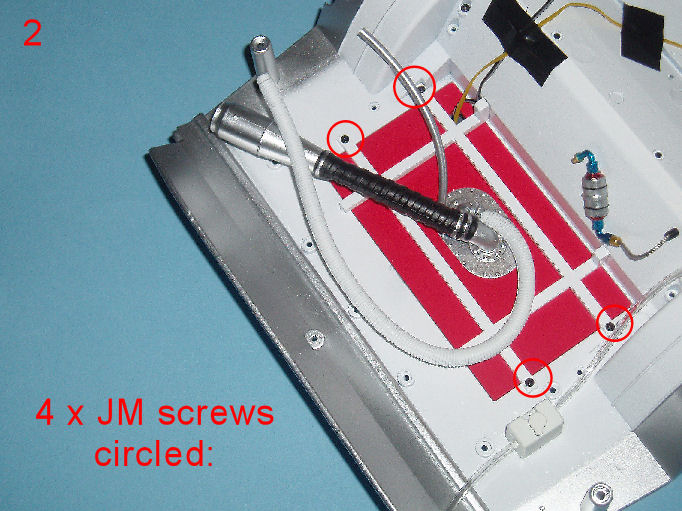

Pic 2: With the rack positioned as shown, fix it down with 4 x JM screws.

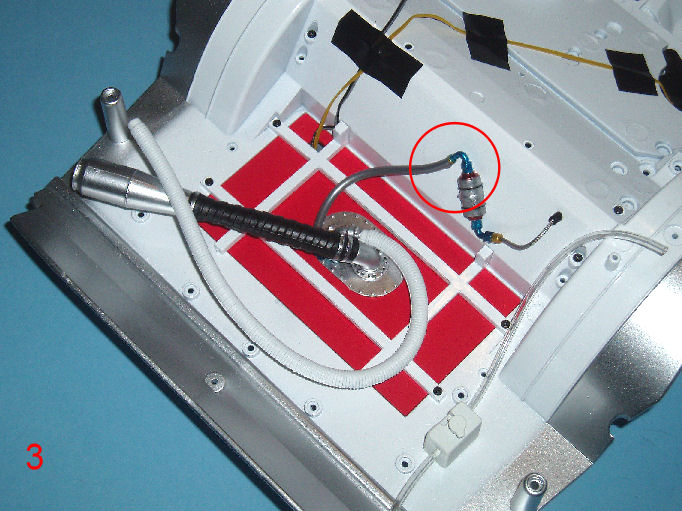

Pic 3: Connect the silver fuel hose as shown.
Pic 4: Retrieve the rear subframe loop 48A saved from stage 48 and fit the support 51C in place as shown.
Fix it with 1 x EP screw.
Pic 5: Fit the support 51B in place as shown.
Fix it with 1 x EP screw.
Pic 6: Fit the assembly in place on the rear deck of the car where indicated.
Pic 7: Carefully place the model upside down taking care not to put the model weight on the rear ‘V’ tubes on the subframe loop.
Fix where indicated with 2 x CM screws and 3 x EP screws.

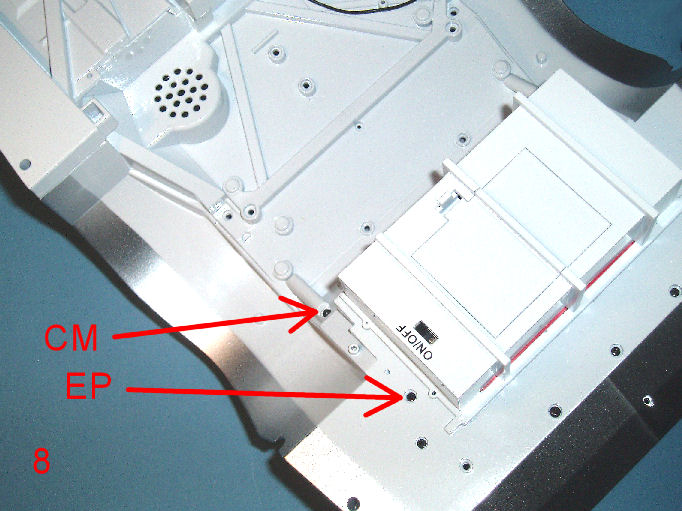

Pic 8: Fix the other side using 1 x CM screw and 1 x EP screw as shown.
NOTE – The printed instructions incorrectly tell you to use a CM screw where it should be EP.
A CM screw is too small.

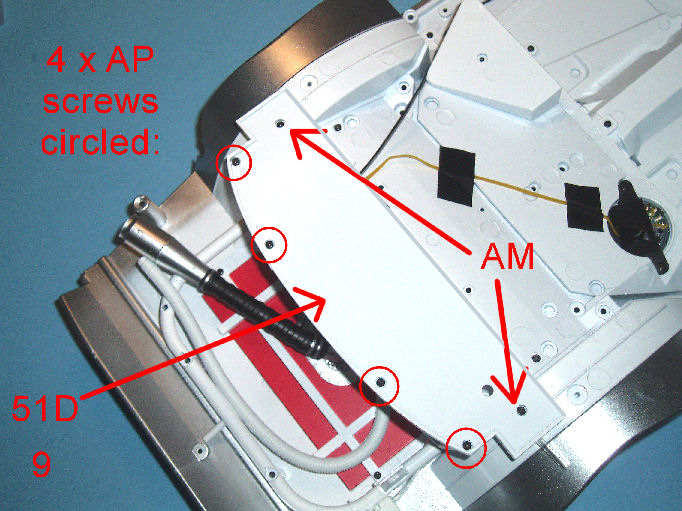

Pic 9: With the model the right way up, fit the parcel shelf 51D in place and fix with 2 x AM screws and 4 x AP screws where indicated.
Store the model safely.roymattblack attached the following image(s):
|
|
|
|
