STAGE 27:
Right machine gun.
Pic 1: Fit the piston 27-7 into the sleeve 27-8 and then attach the parts to the support bracket 27-6 using 1 x ‘L’ screw.
Pic 2: Fit the cover 27-9 in place.

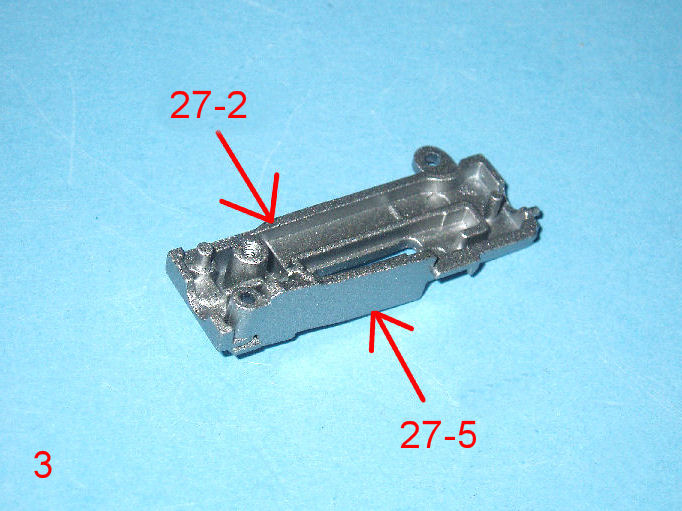

Pic 3: Fit the top cover 27-5 into the edge of the gun housing 27-2 as shown.
The parts will only fit one way.
Pic 4: Fit the spring 27-4 onto the firing pin 27-3.

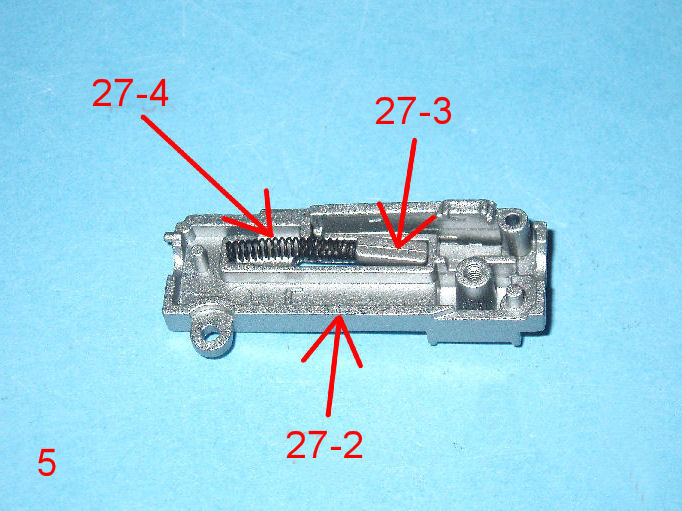

Pic 5: Fit the assembly inside the gun body 27-2 as shown.

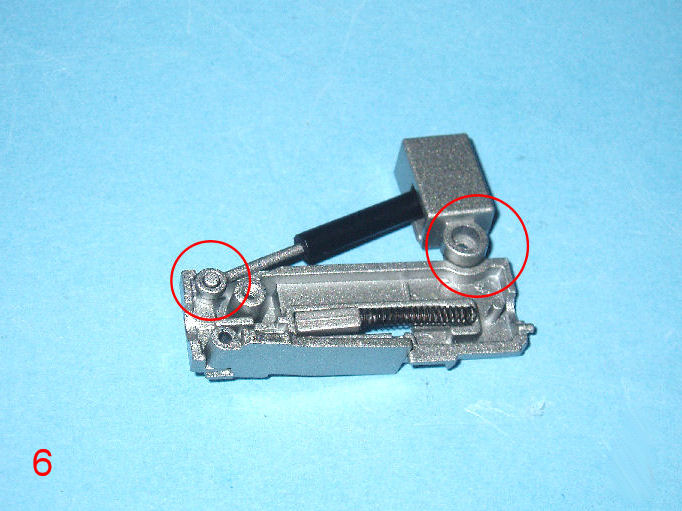

Pic 6: Fit the assembly from step 1 into the gun as shown.
Pic 7: Fit the other half of the gun 27-1 in place and fix with 1 x ‘H’ screw.

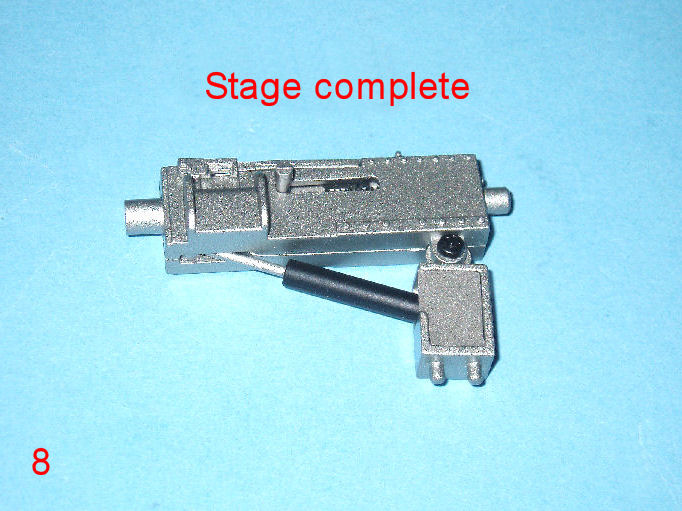

Pic 8: Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,452 Points: 16,508 Location: ipswich
|

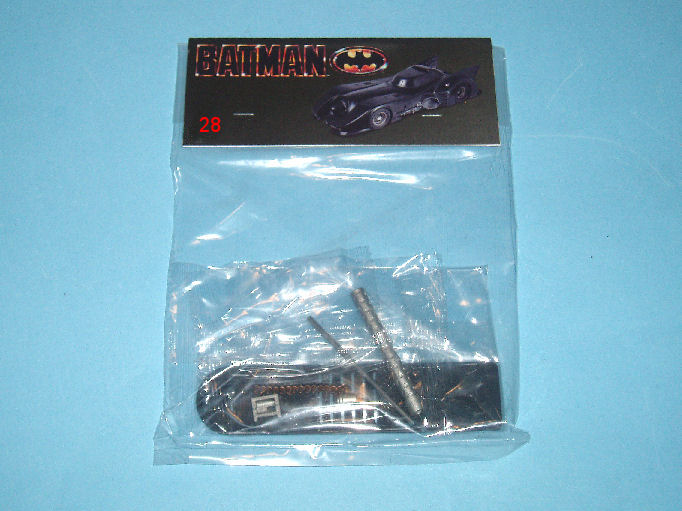

STAGE 28:
Right machine gun 2.

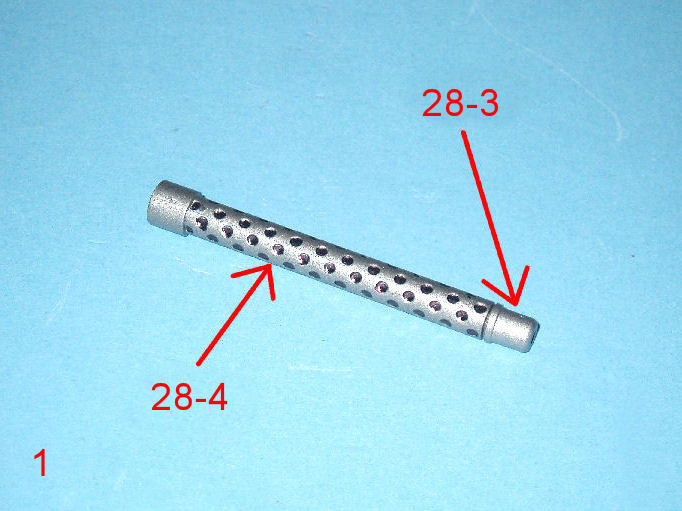

Pic 1: Press-fit the muzzle 28-3 onto the end of the barrel housing 28-4 as shown.
Optional detail:
You can carefully fill in the recesses on the housing with a fine black Sharpie to enhance the look.
This is at the builder’s discretion.

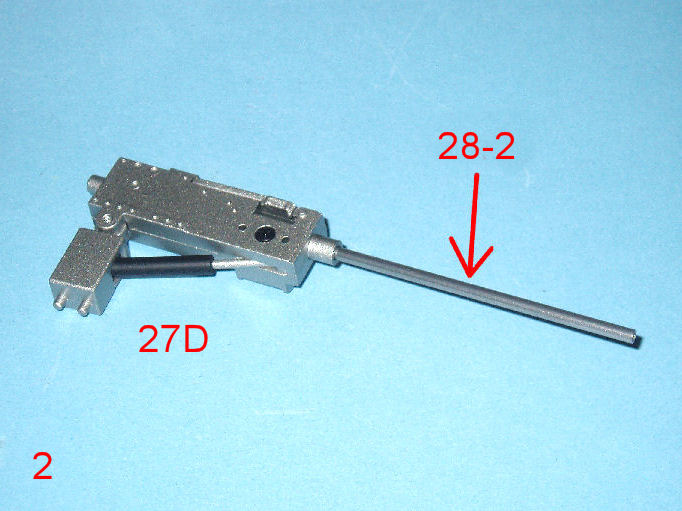

Pic 2: Retrieve the gun assembly from the previous stage and fit the barrel 28-2.
Pic 3: Fit the housing over the barrel as shown.

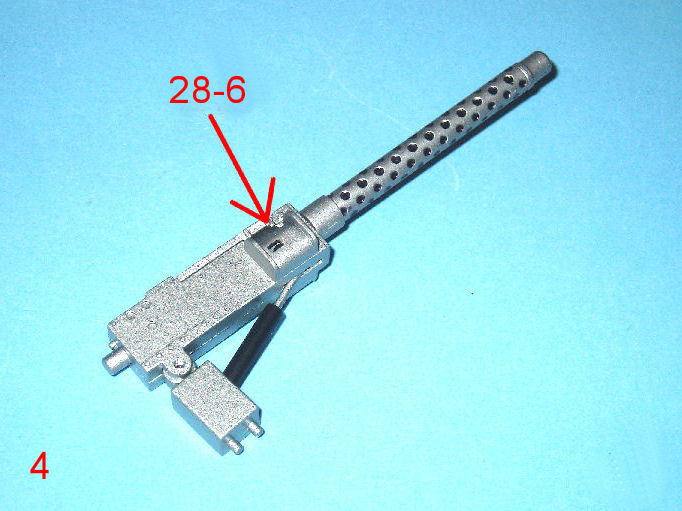

Pic 4: Press-fit the magazine 28-6 into the side of the gun body noting which way up it goes.

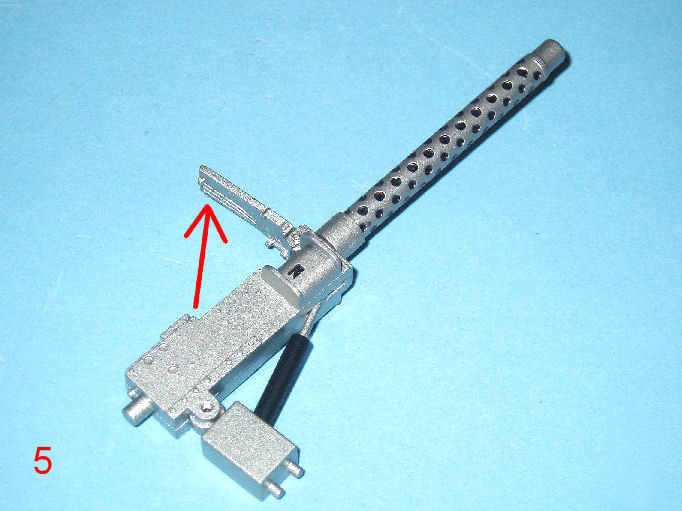

Pic 5: Lift the top cover.
Pic 6: Press-fit the bullet strip 28-5 in place as shown and then close the cover.

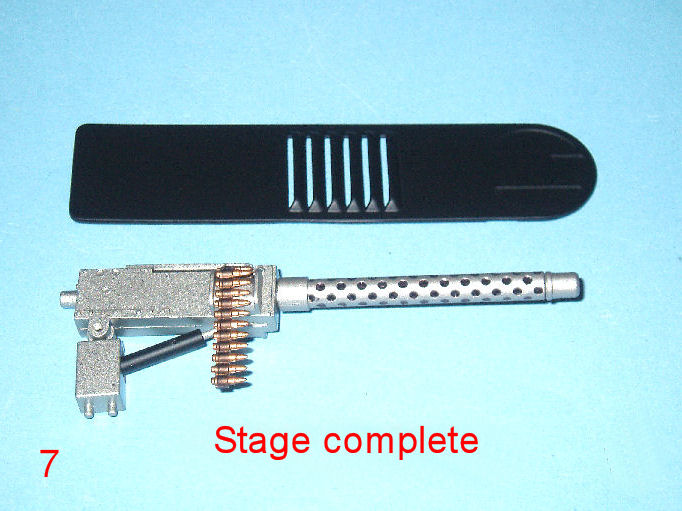

Pic 7: Store the assembly and unused part safely.roymattblack attached the following image(s):
|
|
|
|
